1984 Suzuki LT125 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 1984 Suzuki LT125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

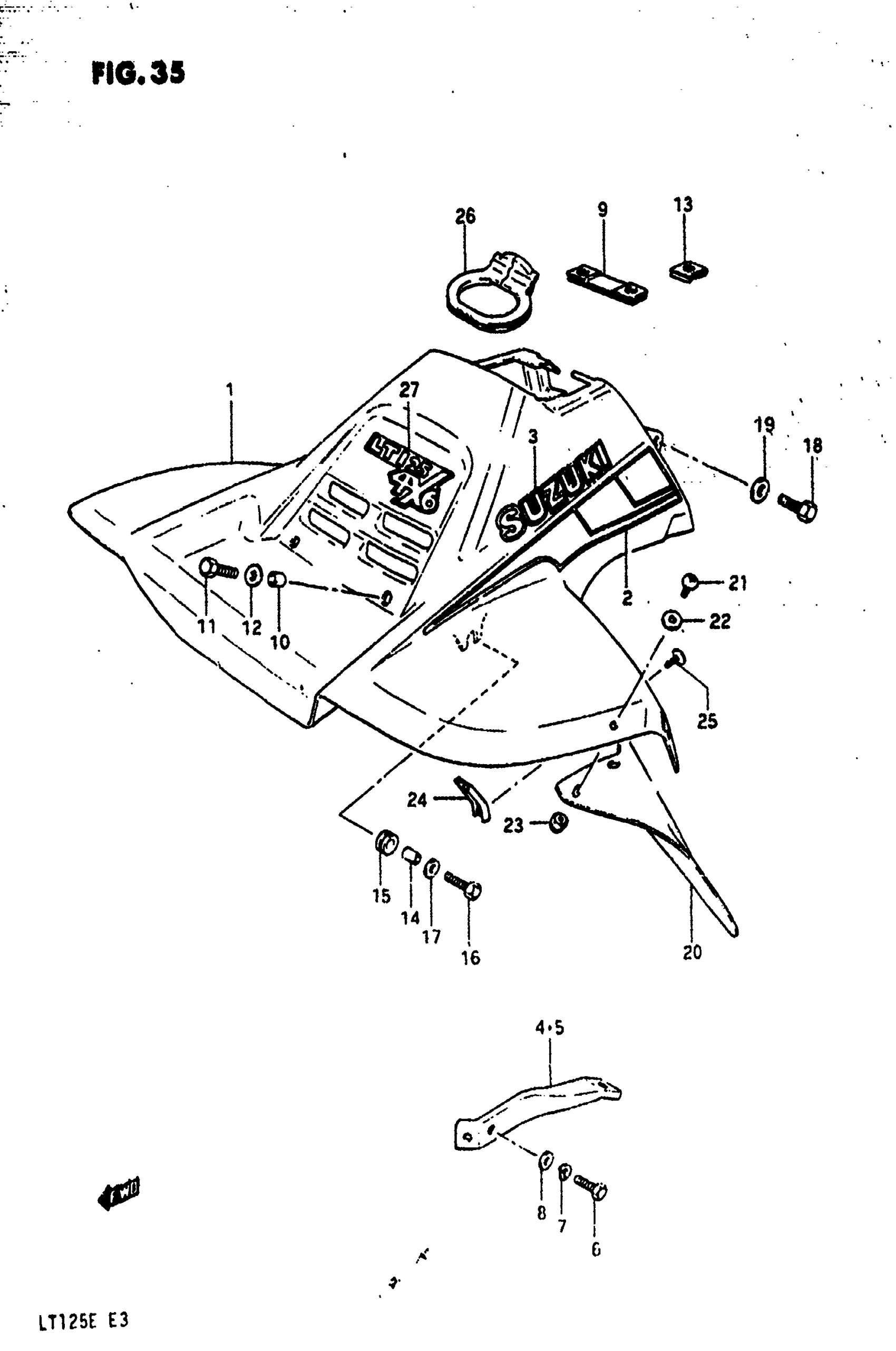

1984 Suzuki LT125 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (ORANGE) This part replaces 53111-18900-00N.

53111-18900-25G

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 68150-18900-86H.

68150-18901-86H

1
Out of stock

3

EMBLEM This part replaces 68111-18900-064.

68111-18901-94A

2
Out of stock

4

BRACKET, FRONT FENDER, RH

53213-18901

1
Out of stock

5

BRACKET, FRONT FENDER, LH

53243-18901

1
Out of stock

6

BOLT This part replaces 01107-06128.

01500-06127

2
Out of stock

7

2

$2.28

In stock

8

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

9

PLATE

53280-18900

1
Out of stock

10

SPACER, REAR This part replaces 09180-08110.

09180-08184

2
Out of stock

11

BOLT

01204-08207

2
Out of stock

12

WASHER (8.5X20X1.6) This part replaces 09160-08072.

09160-08054

2
Out of stock

13

NUT

09148-04015

2
Out of stock

14

SPACER, CENTER

09180-06001

2
Out of stock

15

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

2
Out of stock

16

BOLT This part replaces 01107-06208.

01500-06207

2
Out of stock

17

WASHER This part replaces 09160-06007.

09160-06084

2
Out of stock

18

2

$2.10

In stock

19

WASHER This part replaces 09160-06007.

09160-06084

2
Out of stock

20

MUDFLAP

53311-18900

2
Out of stock

21

SCREW

02142-06167

8
Out of stock

22

WASHER This part replaces 09160-06007.

09160-06084

8
Out of stock

23

.NUT This part replaces 08319-21068.

08319-2106A

8
Out of stock

24

PLATE, MUD FLAP This part replaces 53420-18900.

53420-18902

2
Out of stock

25

SCREW This part replaces 02142-06128.

02142-06127

2
Out of stock

26

GROMMET, CABLE This part replaces 58627-18900.

58627-18901

1
Out of stock

27

NO DESCRIPTION AVAILABLE This part replaces 68233-18900-89T.

68233-18901-89T

1
Out of stock
