2018 Suzuki LT-Z90L8 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2018 Suzuki LT-Z90L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

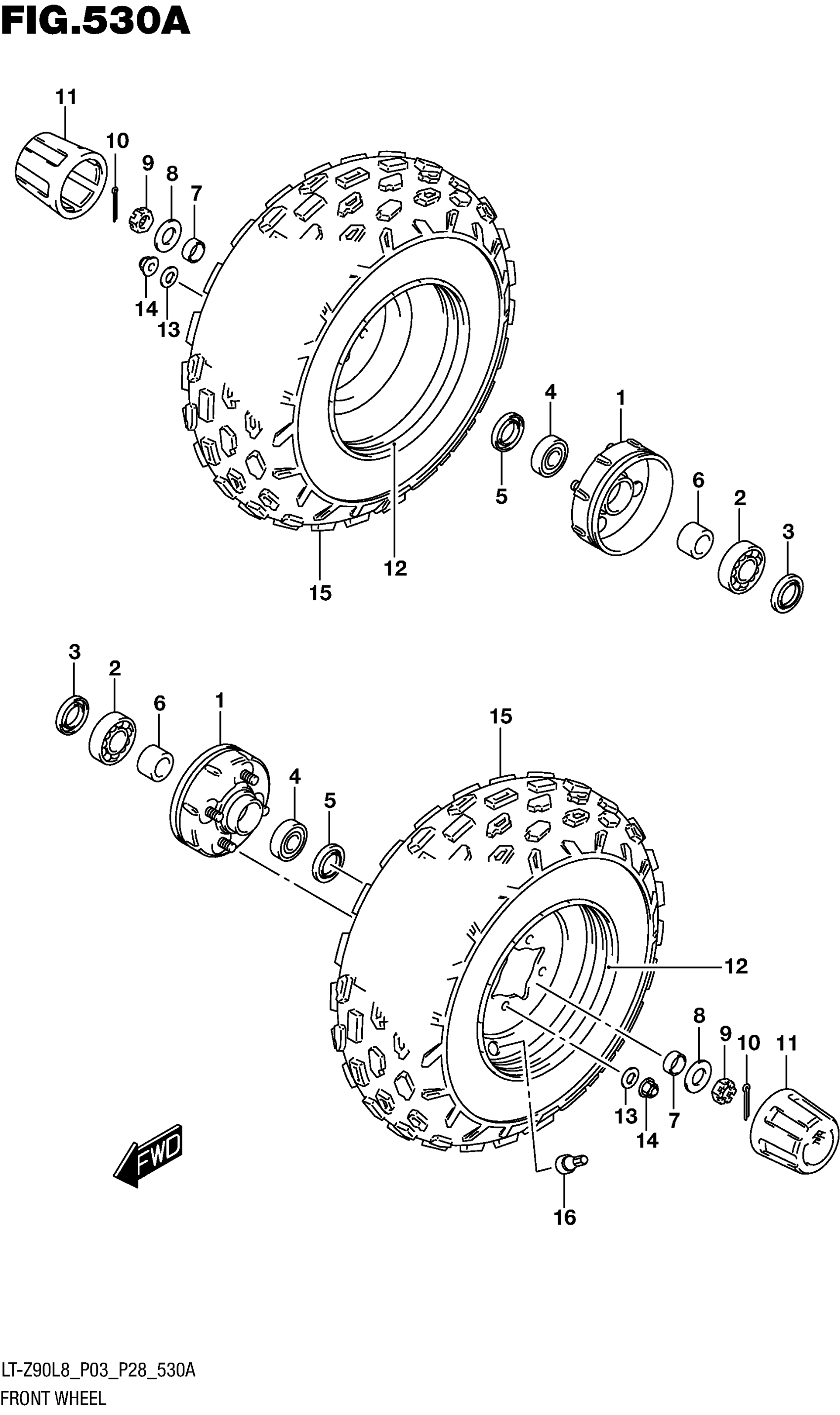

2018 Suzuki LT-Z90L8 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB,FRONT

54110-08H00

2
Out of stock

2

BEARING (17X40X12) | INNER

09262-17031

2
Out of stock

3

OIL SEAL (22X40X6)

09283-22028

2
Out of stock

4

BEARING (15X35X11) | OUTER

09262-15024

2
Out of stock

5

OIL SEAL (20X35X5)

09283-20057

2
Out of stock

6

SPACER,FRONT HUB BEARING INNE

54731-08H00

2
Out of stock

7

SPACER,FRONT AXLE

54741-40B00

2
Out of stock

8

WASHER (14.5X29X2.3)

09160-14009

2
Out of stock

9

NUT

08314-4014B

2
Out of stock

10

COTTER PIN

04111-3025A

2
Out of stock

11

CAP, WHEEL, CENTER

54725-18A00

2
Out of stock

12

RIM, FRONT WHEEL (8X5.5AT)

55310-08H00-13L

2
Out of stock

12

(SILVER)

55310-08H00-13L

1
Out of stock

13

WASHER (10X20X2.3)

09160-10142

8
Out of stock

14

NUT, WHEEL RIM

08316-1010B

8
Out of stock

15

TIRE,FRONT (AT19X7-8,DI-K149A

55110-08H10

2
Out of stock

16

VALVE ASSY, WHEEL TR413

43130-24A00

2
Out of stock
