2018 Suzuki LT-Z90L8 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2018 Suzuki LT-Z90L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

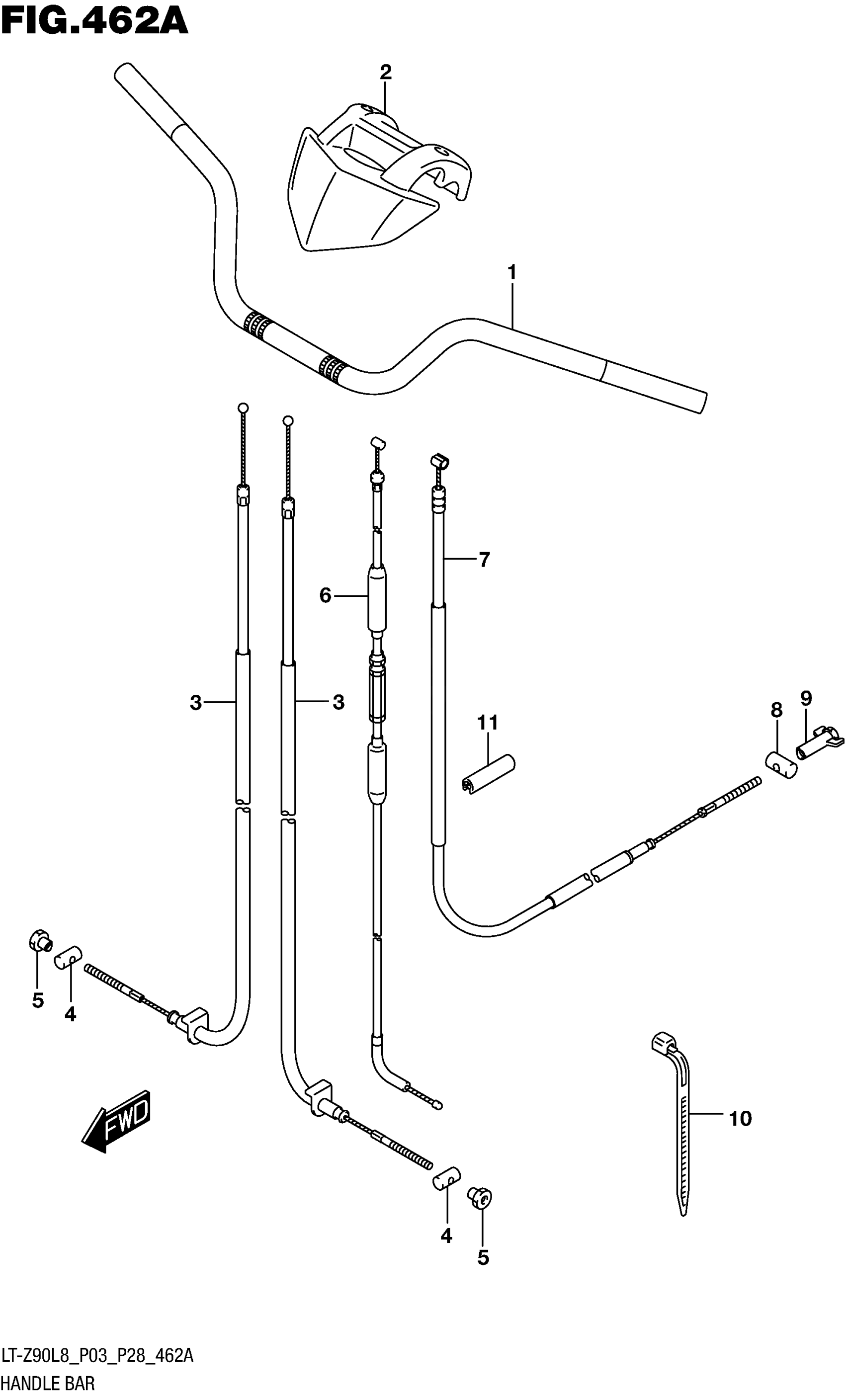

2018 Suzuki LT-Z90L8 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR (SILVER)

56110-08H00-13L

1
Out of stock

2

COVER,STEERING HEAD (BLACK)

56171-08H00-291

1
Out of stock

3

CABLE, FRONT BRAKE

58110-08H00

2
Out of stock

4

PIN (10X19)

09209-10001

2
Out of stock

5

NUT

09150-05101

2
Out of stock

6

CABLE ASSY,THROTTLE This part replaces 58300-08H02.

58300-08H03

1
Out of stock

7

CABLE,RR BRAKE This part replaces 58510-08H00.

58510-08H01

1
Out of stock

8

PIN

09209-13006

1
Out of stock

9

NUT

09150-06015

1
Out of stock

10

CLAMP (L:125)

09407-14403

2
Out of stock

11

PROTECTOR, REAR BRAKE CABLE

58627-08H00

1
Out of stock
