Description

Price

1

PLATE,FRONT BRAKE,R

54511-08H00

$23.05

2

PLATE,FRONT BRAKE,L

54811-08H00

$26.97

3

BOLT, BRAKE ANCHOR PANEL

01547-0610B

$2.47

4

SHOE SET,FRONT BRAKE

54400-08810

$95.07

5

SPRING,BRAKE SH This part replaces 55421-45F00.

55421-45F10

$3.62

6

CAM,FRONT BRAKE

54441-08H00

$19.17

7

O RING, (ID:11.8,D:2.4)

09280-12012

$4.19

8

SEAL,FRONT BRAKE DUST

54124-08H00

$38.45

9

LEVER,FRONT BRAKE CAM,R

54450-08H00

$41.02

10

LEVER,FRONT BRAKE CAM,L

54460-08H00

$36.89

11

SPRING

09443-10044

$5.63

12

BOLT, CAM LEVER (6X32)

09103-06135

$2.77

13

PLATE,FR BK LINING INDICATOR

54492-08H00

$4.18

14

NUT, CAM LEVER

08316-1006B

$2.50

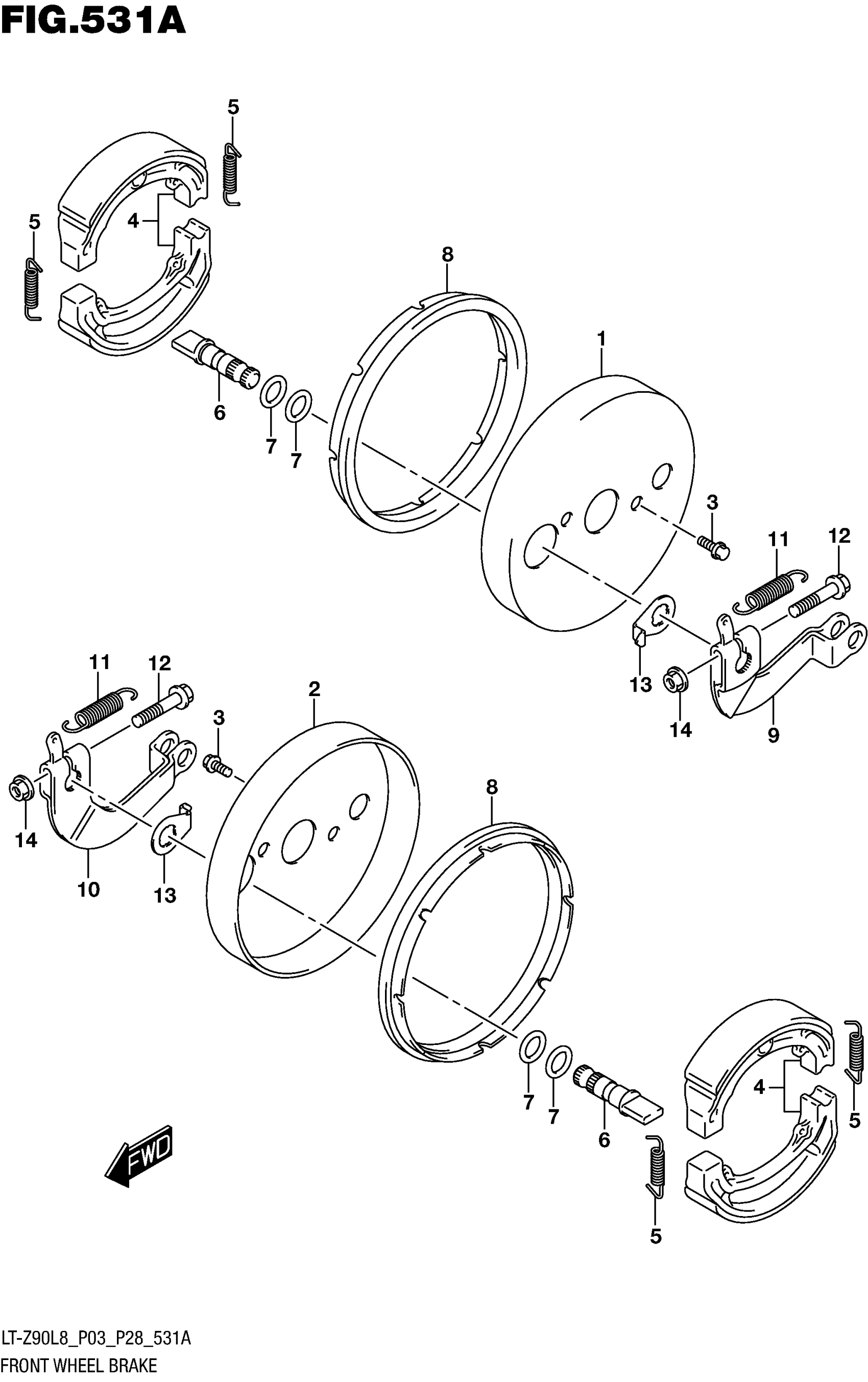

Suzuki LT-Z90L8 (2018) FRONT WHEEL BRAKE Diagram
