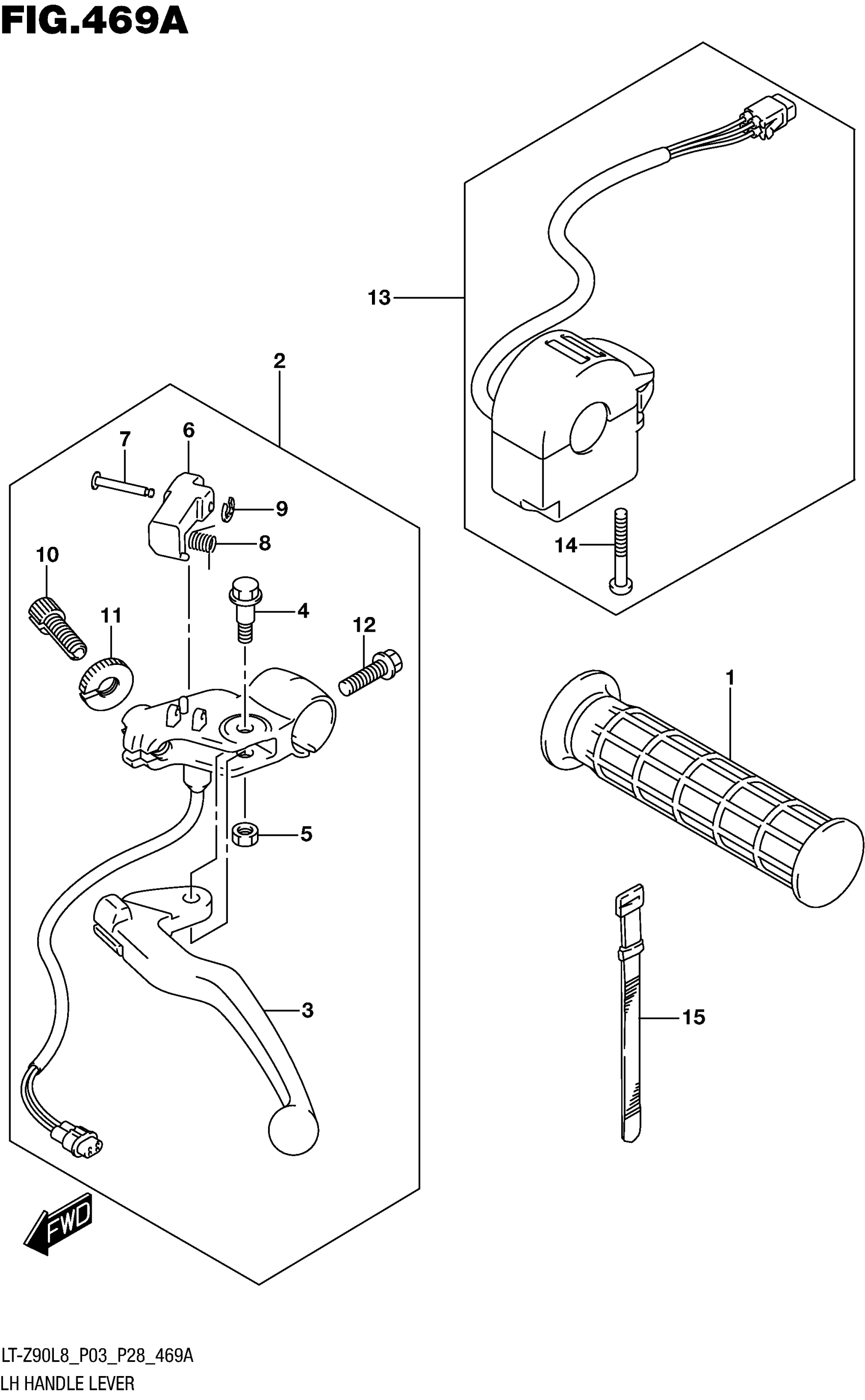

Suzuki LT-Z90L8 (2018) LH HANDLE LEVER Diagram

#

Description
Price

1

GRIP

57211-21G10

$9.29

2

LEVER ASSY,RR BRAKE

57500-08H00

$176.18

3

.LEVER

57421-08H00

$40.47

4

.SCREW

57431-43G00

$8.62

5

.NUT

08319-2106B

$2.31

6

.LOCK PLATE

57791-43G00

$11.20

7

.PIN

57781-43G00

$6.77

8

.SPRING

57134-43G00

$5.27

9

.E RING

57432-43G00

$5.00

10

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

$10.66

11

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

$7.67

12

..BOLT

01547-0620B

$2.43

13

SWITCH ASSY, HANDLE LH

37400-08H10

$167.73

14

.SCREW

02112-05357

$1.49

15

CLAMP (L:120)

09407-12402

$2.80
