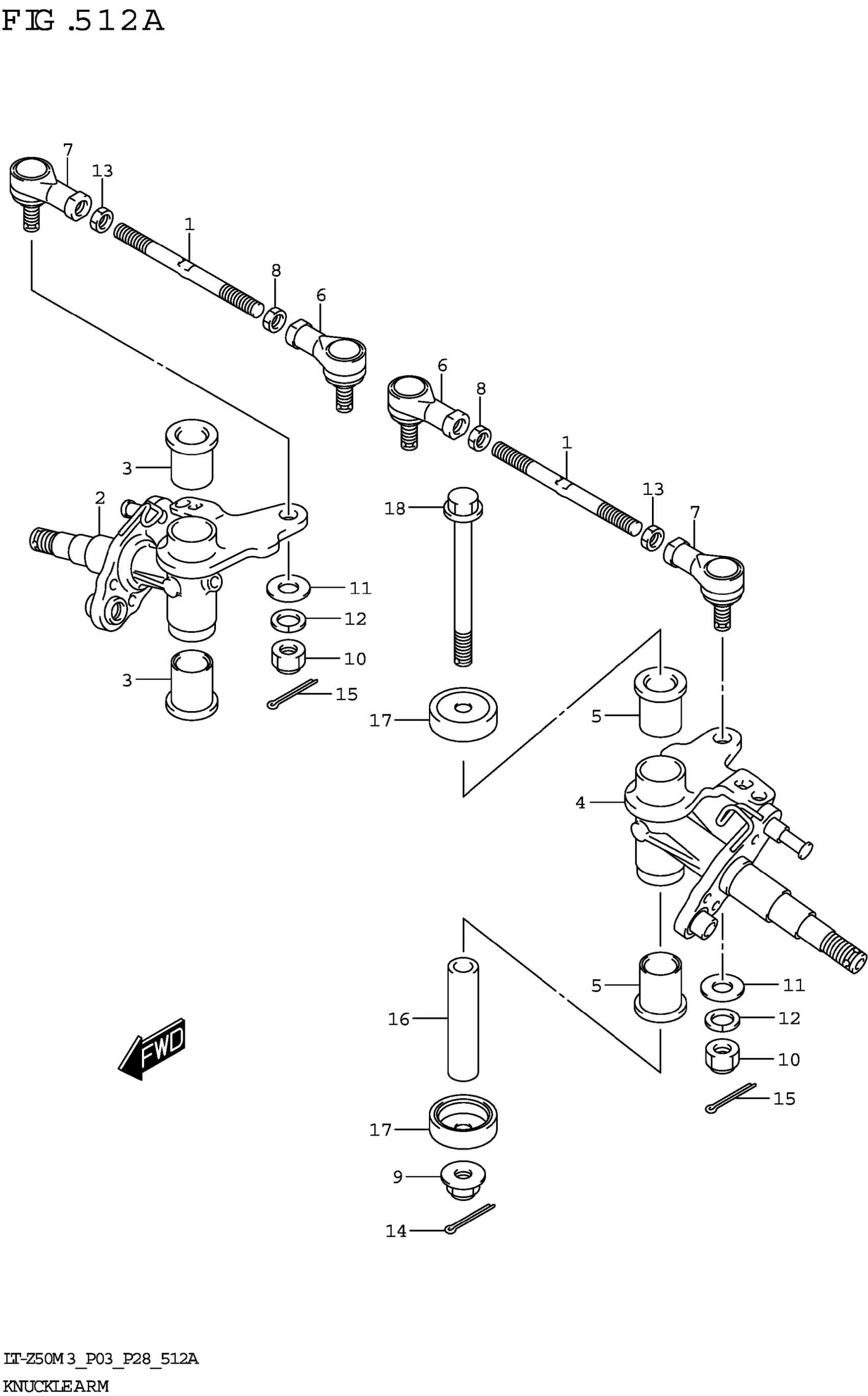

Suzuki LT-Z50M3 (2023) KNUCKLE ARM Diagram

#

Description
Price

1

TIE-ROD,STEERING

51281-43F00

$31.90

2

ARM,KNUCKLE,R

51230-43F00

Unavailable

3

.BUSH,KINGPIN

51236-40B00

$17.46

4

ARM,KNUCKLE,L

51240-43F00

Unavailable

5

.BUSH,KINGPIN

51236-40B00

$17.46

6

END,ROD,R

51260-43G00

$106.48

7

END,ROD,L

51270-43G00

$108.50

8

NUT (10X6)

09140-10043

$2.92

9

NUT

08319-3110A

$2.73

10

NUT

08319-2110B

Unavailable

11

WASHER (10.5X24X1.6)

09160-10126

$2.13

12

WASHER,LOCK

09162-10010

$4.03

13

NUT (LH THREAD)

09140-10027

$1.54

14

PIN

04111-2020A

$1.22

15

PIN

04111-2020A

$1.22

16

SPACER,KING PIN

51251-40B00

$25.08

17

DUST SEAL,KNUCKLE ARM (28.6X3 | X10.5)

51255-18900

$4.09

18

BOLT,KNUCKLE ARM

51256-43G00

$14.15
