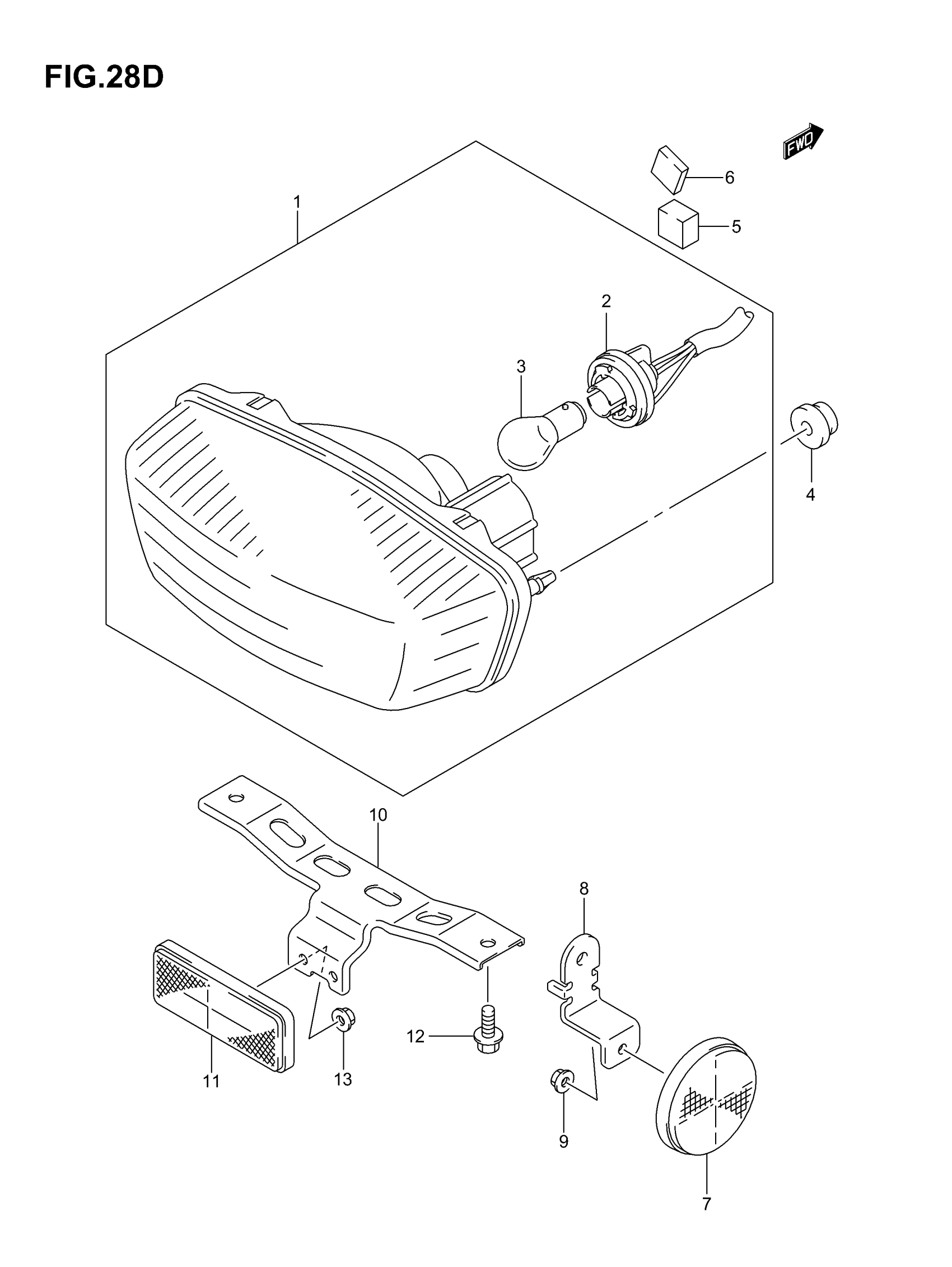

Suzuki LT-Z400 (2007) REAR COMBINATION (MODEL K4 E28) Diagram

#

Description

Price

1

LAMP ASSY, TAIL | Includes Item(s) 2 - 3 This part replaces 35710-03G00.

35710-03G20

$57.08

2

SOCKET/CORD ASSY

35718-03G00

$39.77

3

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

4

CUSHION

09320-06023

$2.58

5

CUSHION (12X17X17)

33652-05G20

$2.87

6

CUSHION

33652-07G10

$2.40

7

REFLECTOR ASSY, REAR SIDE

35970-14A10

$21.23

8

BRACKET, REAR SIDE RR RH

35975-07G00

Unavailable

9

NUT This part replaces 08316-10053.

08316-1005A

$2.19

10

BRACKET, REAR RR

35726-07G20

Unavailable

11

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

$19.11

12

SCREW This part replaces 02162-06163.

02162-0616B

$2.06

13

NUT This part replaces 08316-10053.

08316-1005A

$2.19
