2007 Suzuki LT-Z400 Rear Combination Diagram

← All diagrams

Find the part on the Rear Combination diagram for your 2007 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

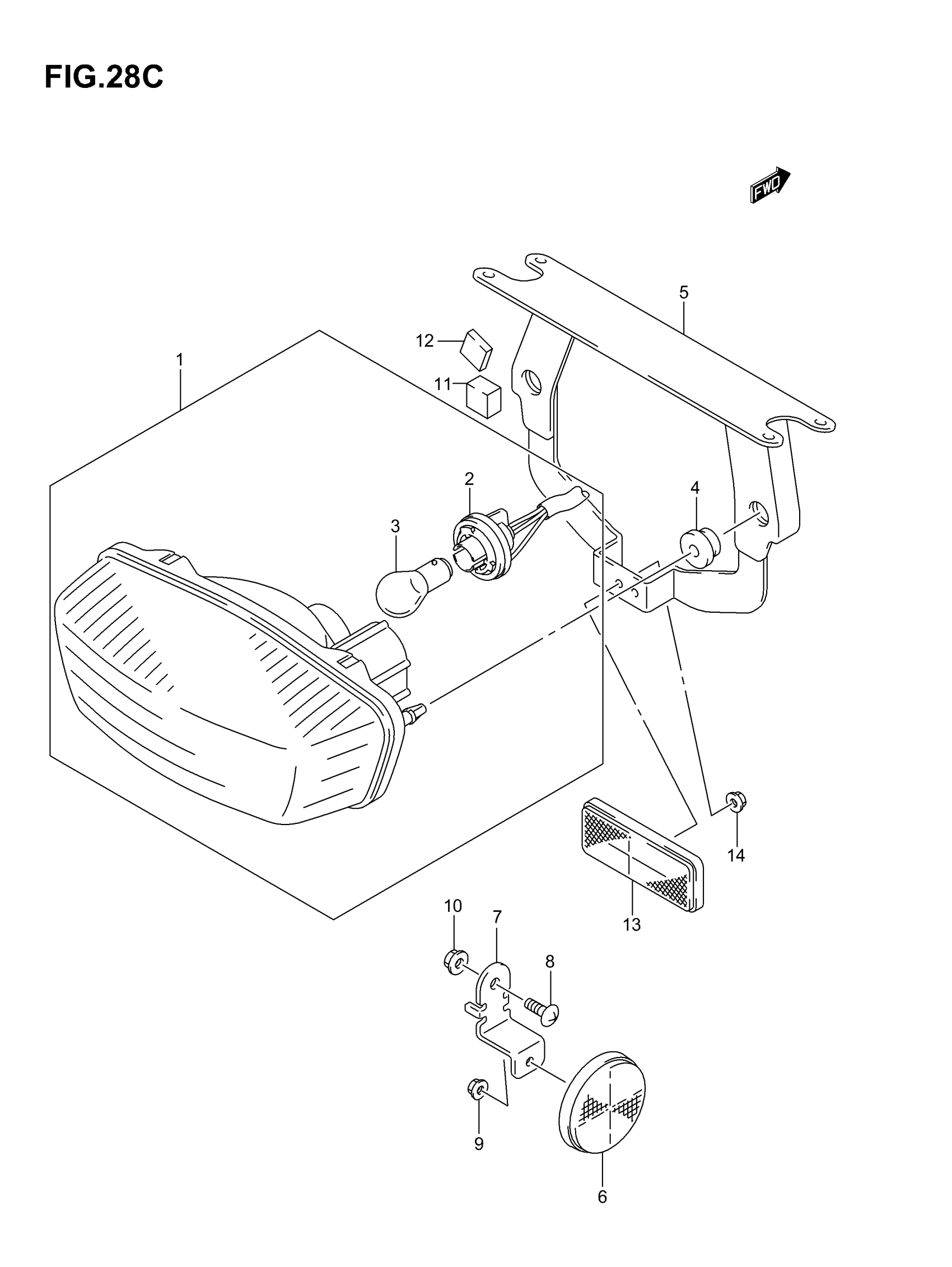

2007 Suzuki LT-Z400 Rear Combination Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, TAIL | Includes Item(s) 2 - 3 This part replaces 35710-03G00.

35710-03G20

1
Out of stock

2

SOCKET/CORD ASSY

35718-03G00

1
Out of stock

3

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

4

CUSHION

09320-06023

2
Out of stock

5

BRACKET, REAR COMB

35726-07G10

—
Out of stock

6

REFLECTOR ASSY, REAR SIDE

35970-14A10

2
Out of stock

7

BRACKET, REAR SIDE RR RH

35975-07G00

—
Out of stock

8

SCREW This part replaces 02142-06163.

02142-0616A

4
Out of stock

9

NUT This part replaces 08316-10053.

08316-1005A

2
Out of stock

10

NUT This part replaces 08316-10063.

08316-1006B

4
Out of stock

11

CUSHION (12X17X17)

33652-05G20

2
Out of stock

12

CUSHION

33652-07G10

2
Out of stock

13

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

1
Out of stock

14

NUT This part replaces 08316-10053.

08316-1005A

1
Out of stock
← Pilot Lamp Rear Combination →
