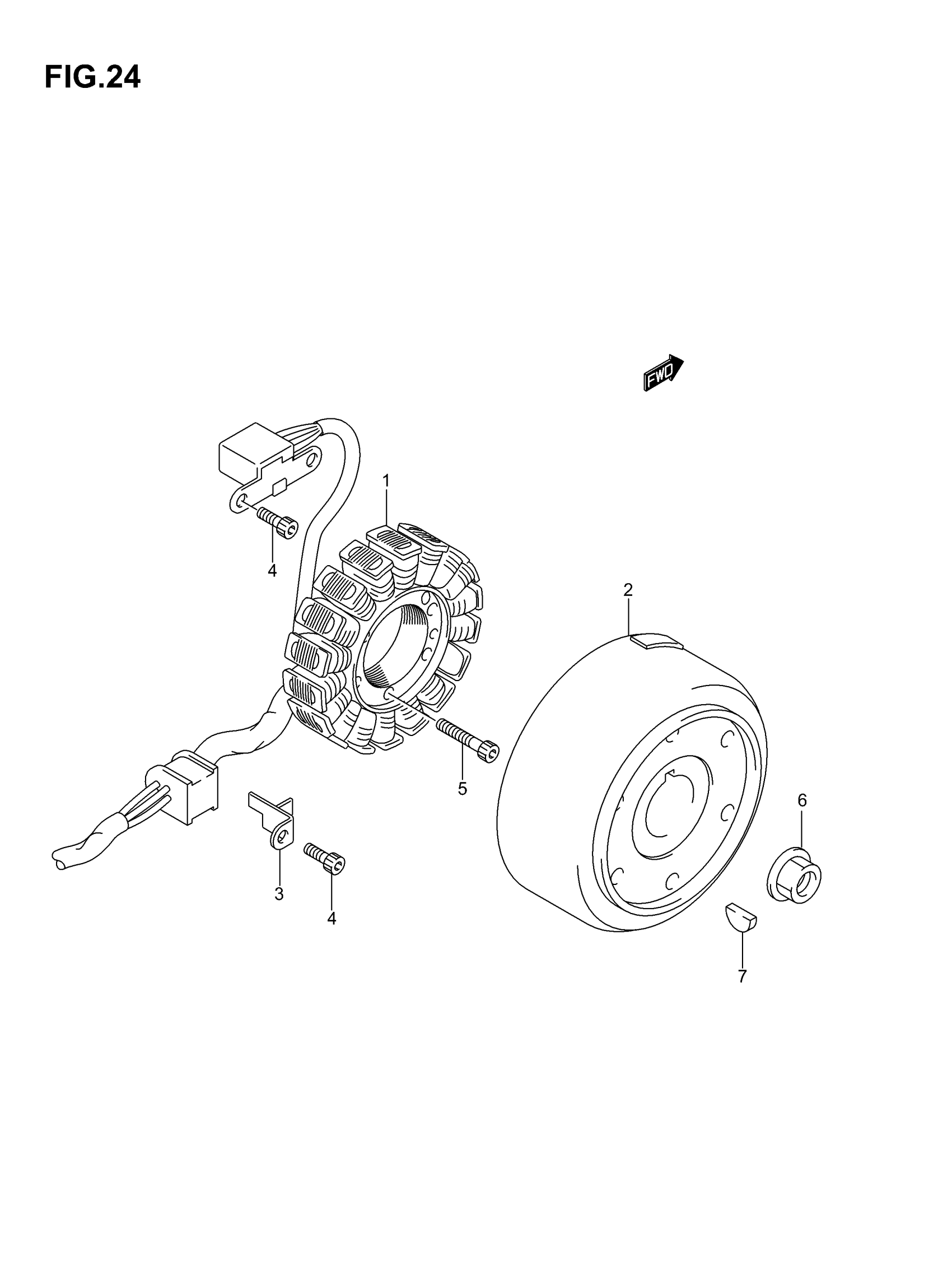

Suzuki LT-Z400 (2007) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-07G00.

32101-07G01

$535.45

2

ROTOR ASSY

32102-07G00

$692.45

3

CLAMP, MAGNETO LEAD NO.1

32371-13E00

$3.35

4

BOLT This part replaces 07130-05123.

07130-0512B

$2.53

5

BOLT This part replaces 07130-05253.

07130-0525B

$2.70

6

NUT, MAGNETO ROTOR

31792-07G00

$13.97

7

KEY

09420-04008

$3.08
