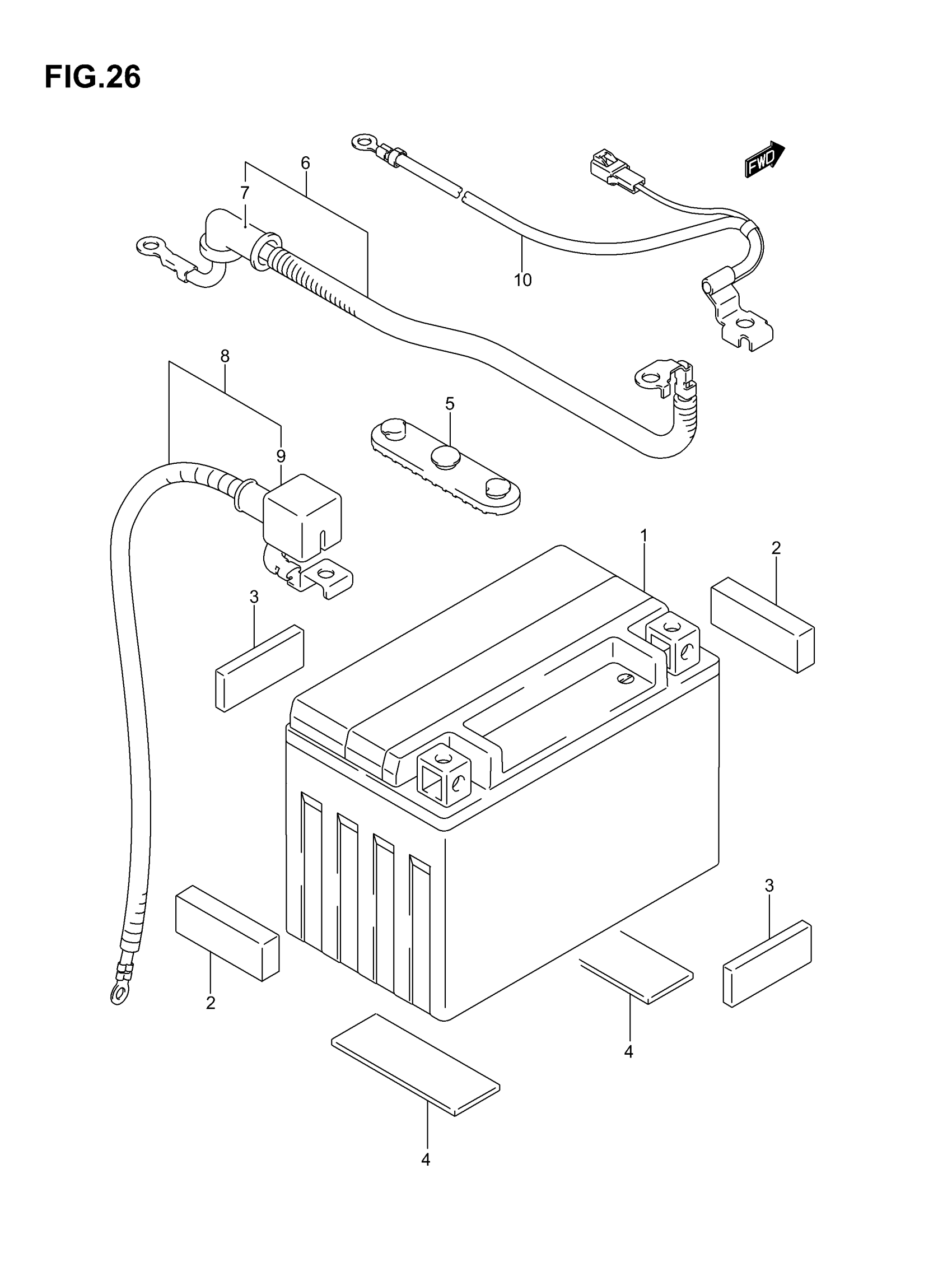

Suzuki LT-Z400 (2007) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (12V,8AH) | YTX9-BS This part replaces 33610-32C10.

33610-33E20

$143.93

2

PROTECTOR (20X50X11) This part replaces 33652-03G00.

33652-31F00

$3.22

3

CUSHION, REAR FENDER REAR This part replaces 33652-28010.

33651-37000

$4.09

4

CUSHION, BATTERY (30X130X3) This part replaces 33652-41B00.

33652-19B00

$5.67

5

PROTECTOR, BATTERY

33652-07G00

$3.81

6

WIRE, STARTER MOTOR | Includes Item(s) 7

33810-07G00

$44.55

7

CAP, STARTER MOTOR

31861-48B10

$7.40

8

WIRE, BATTERY PLUS | Includes Item(s) 9

33820-07G00

$34.03

9

CAP, BATTERY PLUS

33624-10D00

$7.12

10

WIRE, BATTERY MINUS

33860-07G00

$28.75
