2007 Suzuki LT-Z400 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2007 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

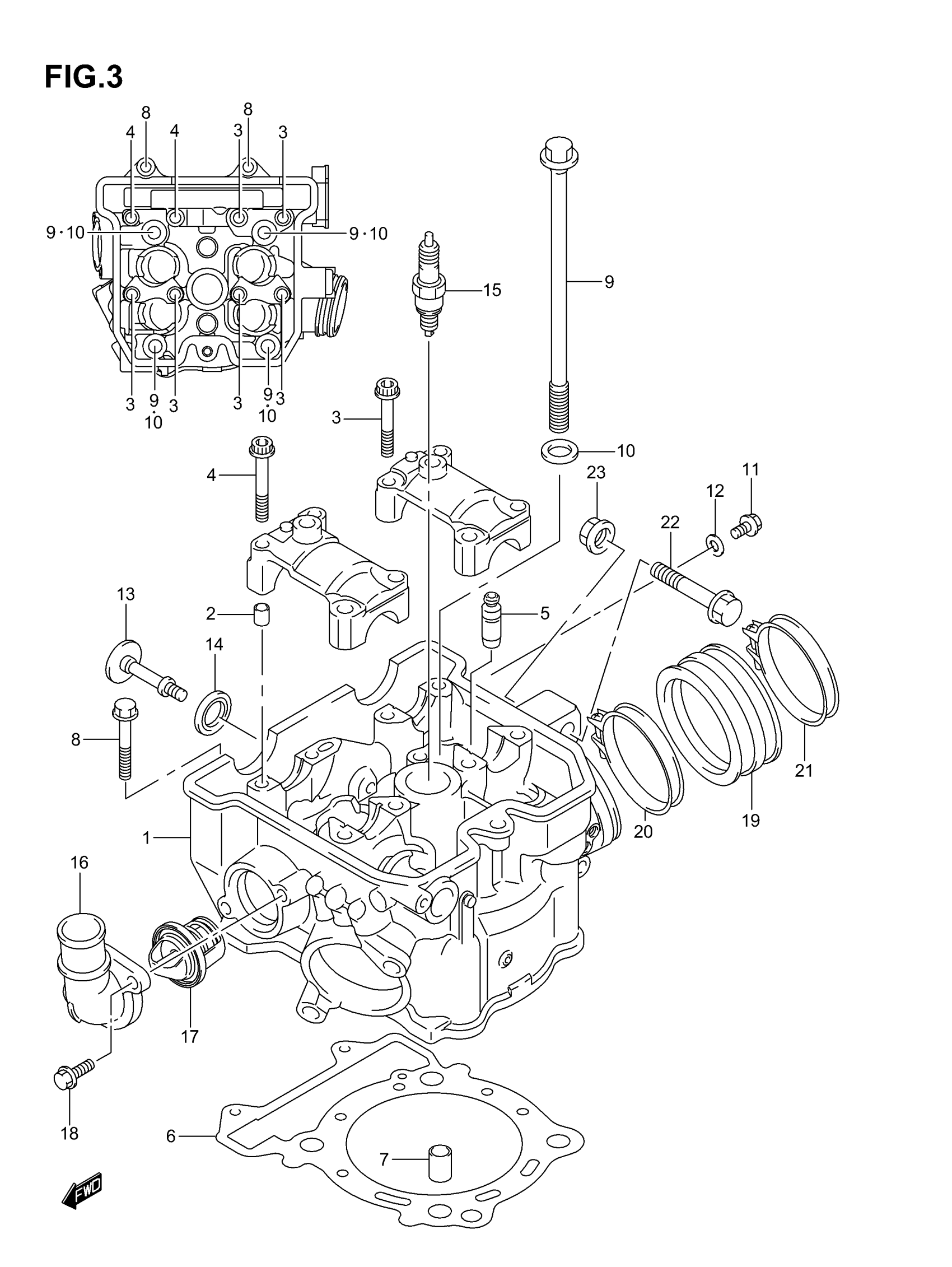

2007 Suzuki LT-Z400 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 4

11100-07G00

1
Out of stock

2

PIN

09206-08001

4
Out of stock

3

BOLT This part replaces 07120-06403.

07120-0640B

6
Out of stock

4

BOLT This part replaces 07120-06453.

07120-0645B

2
Out of stock

5

GUIDE, VALVE (OS.0.3) | OPT

11115-20E70

4
Out of stock

6

GASKET, CYLINDER HEAD

11141-29F01

1
Out of stock

7

PIN (L:18)

04211-13189

2
Out of stock

8

BOLT (6X39)

09103-06504

2
Out of stock

9

BOLT (10X175)

09103-10276

4
Out of stock

10

WASHER (10.5X19X2)

09160-10082

4
Out of stock

11

BOLT This part replaces 01550-06103.

01550-0610A

1
Out of stock

12

GASKET

09168-06023

1
Out of stock

13

BOLT, CYLINDER HEAD SIDE FACE

11161-33E00

1
Out of stock

14

WASHER, SIDE FACE BOLT

11191-13E00

1
Out of stock

15

SPARK PLUG (NGK,CR7E)

09482-00516

1
Out of stock

15

SPARK PLUG (DENSO,U22ESR-N)

09482-00515

1
Out of stock

15

SPARK PLUG (NGK,CR6E) | OPT

09482-00528

1
Out of stock

15

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

1
Out of stock

15

PLUG SPARK (CR9E) | OPT

09482-00458

1
Out of stock

15

SPARK PLUG (DENSO,U20ESR-N) | OPT

09482-00529

1
Out of stock

15

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

1
Out of stock

15

SPARK PLUG (DENSO,U27ESR-N) | OPT

09482-00459

1
Out of stock

16

COVER, THERMOSTAT

17661-29F00

1
Out of stock

17

THERMOSTAT WATER This part replaces 17670-33400.

17670-33401

1
Out of stock

18

BOLT This part replaces 01547-06163.

01547-0616B

2
Out of stock

19

PIPE,INTAKE | MODEL K3/K4 This part replaces 13111-07G00.

13111-07G01

1
Out of stock

19

PIPE,INTAKE | MODEL K5/K6/K7 This part replaces 13111-07G10.

13111-07G11

1
Out of stock

20

CLAMP, HEAD

09402-58208

1
Out of stock

21

CLAMP, CARB

09402-52208

1
Out of stock

22

BOLT (10X45) | MODEL K3/K4

09103-10218

1
Out of stock

22

BOLT (10X50) | MODEL K5/K6/K7

09103-10235

1
Out of stock

23

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

1
Out of stock
