2007 Suzuki LT-Z400 Crank Balancer Diagram

← All diagrams

Find the part on the Crank Balancer diagram for your 2007 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

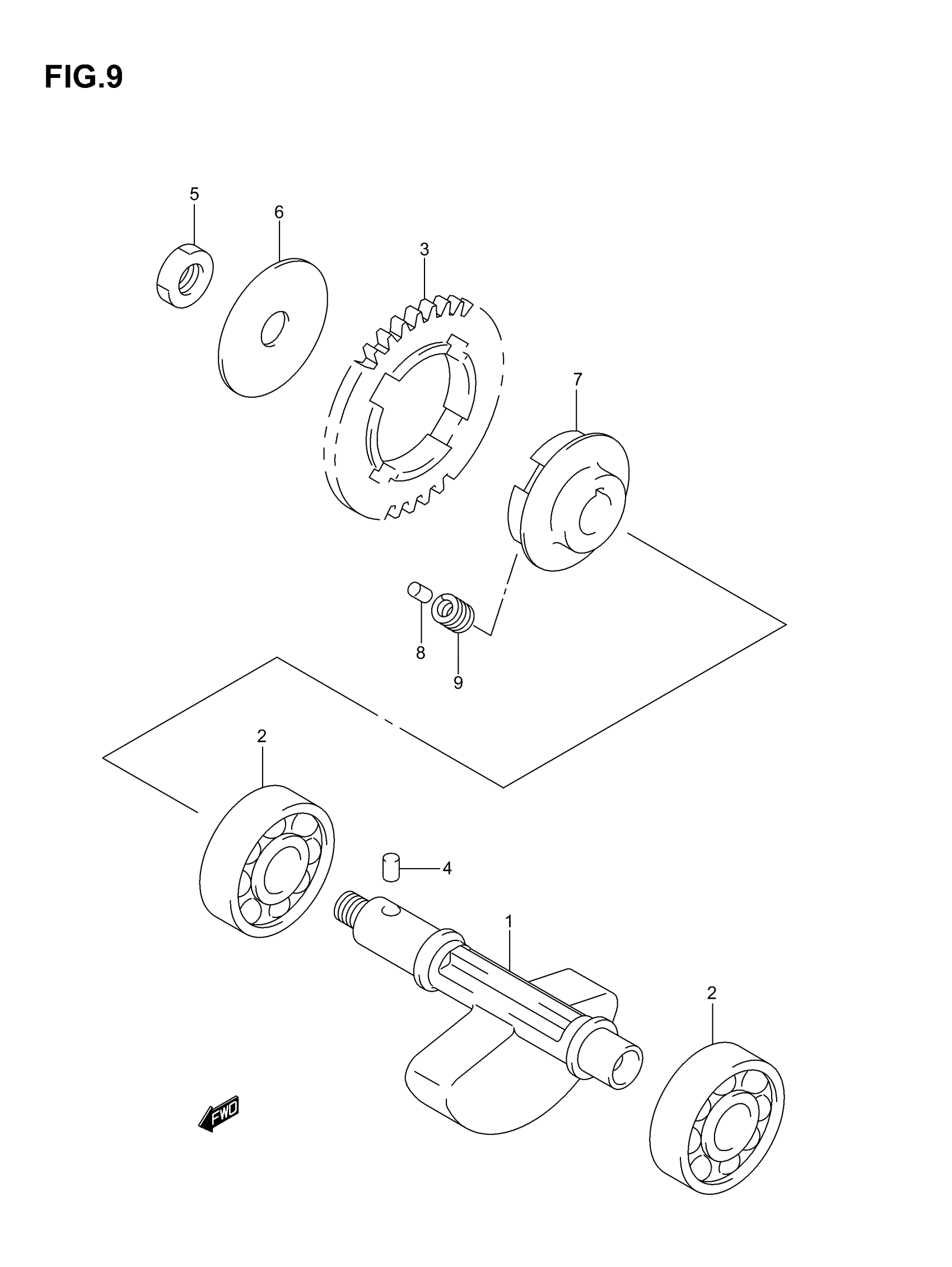

2007 Suzuki LT-Z400 Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER, CRANK

12651-29F00

1
Out of stock

2

BEARING

09262-15030

2
Out of stock

3

GEAR, DRIVEN

12666-29F11

1
Out of stock

4

PIN, INNER RACE

09261-05005

1
Out of stock

5

NUT (M12)

09140-12038

1
Out of stock

6

WASHER (12.2X47X1.6)

09181-12009

1
Out of stock

7

RACE, DRIVEN GEAR INNER

12669-29F01

1
Out of stock

8

PIN, DRIVEN GEAR

09202-04017

2
Out of stock

9

SPRING, DRIVEN GEAR

09440-09031

4
Out of stock
← Camshaft/valve Crankcase →

More Engine diagrams

Need Help Finding the Right Part?

Not sure it fits? Ask before you order — our team will check the part for your machine.

For a faster answer, include:

Year, make and model of your machine

VIN or frame / serial number

OEM part number or a photo of the old part
