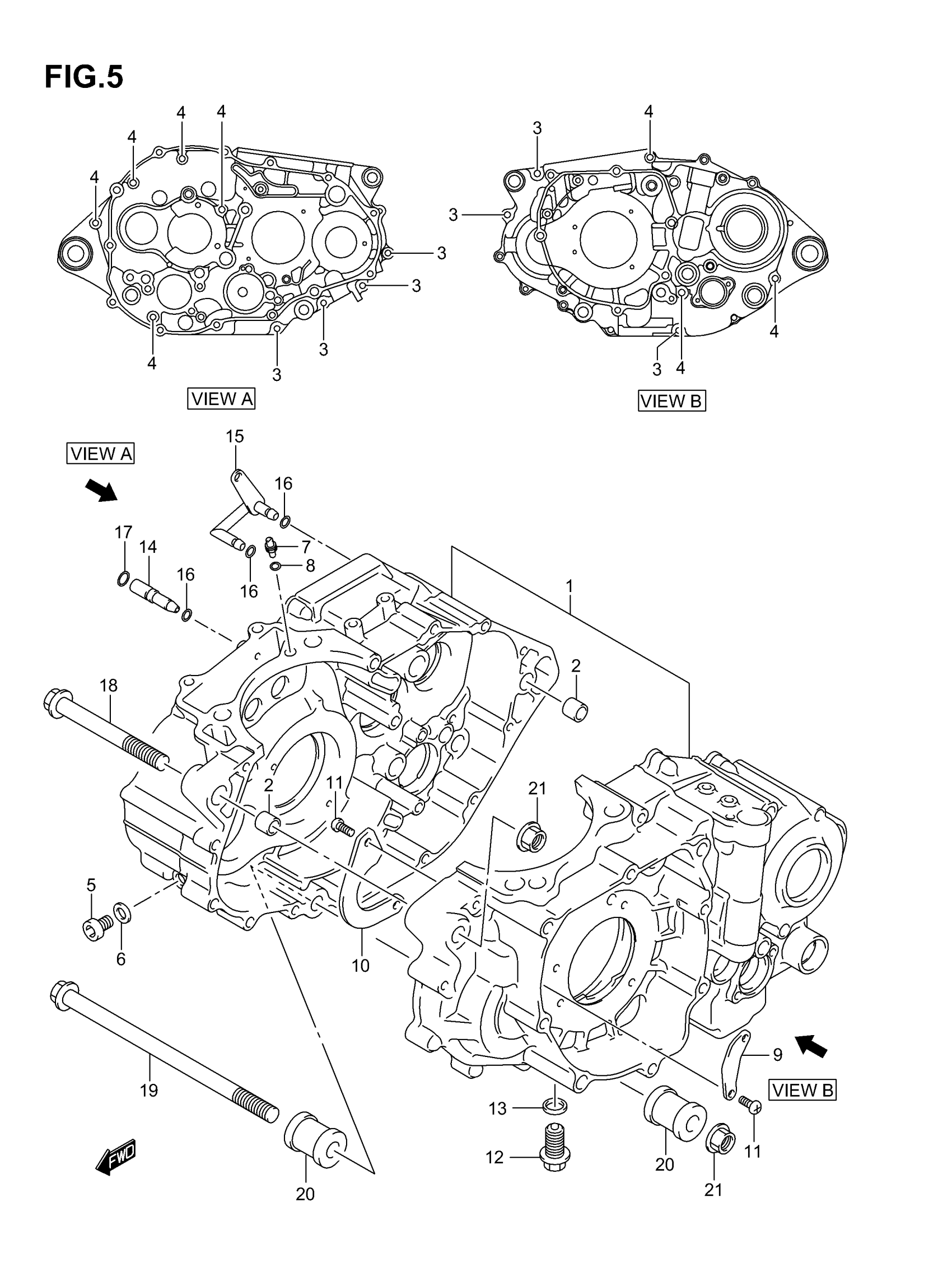

Suzuki LT-Z400 (2007) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL K3/K4 This part replaces 11301-07810.

11301-07812

$1,439.10

1

CRANKCASE SET | MODEL K5/K6/K7; Includes Item(s) 2 - 4 This part replaces 11301-07811.

11301-07812

$1,439.10

2

PIN

04211-13189

$2.19

3

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

4

BOLT This part replaces 01547-06703.

01547-0670B

$3.01

5

PLUG, OIL GALLERY

09248-10010

$3.82

6

GASKET

09168-10002

$1.96

7

JET, OIL GALLERY CYLINDER

09493-28010

$18.00

8

O RING

09280-04004

$1.76

9

SEPARATOR, OIL NO.1

11323-29F00

$3.62

10

SEPARATOR, OIL NO.2

11324-29F00

$5.83

11

SCREW This part replaces 02112-06123.

02112-0612A

$1.43

12

PLUG, OIL DRAIN | MODEL K3/K4

09247-12011

$4.19

12

PLUG, OIL DRAIN | MODEL K5/K6/K7

09247-12106

$2.73

13

GASKET

09168-12002

$1.59

14

PIPE, OIL INNER NO.1

11451-29F00

Unavailable

15

PIPE, T/M OIL INNER NO.2

11460-07G00

$38.53

16

O RING (D:1.9,ID:4.8)

09280-05004

$2.17

17

O RING (D:1.9,ID:6.8)

09280-07004

$1.55

18

BOLT (10X100)

09103-10110

$9.15

19

BOLT (10X180)

09103-10136

$10.13

20

SPACER, ENGINE MOUNTING (L:30)

11611-09F51

$19.93

21

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.21
