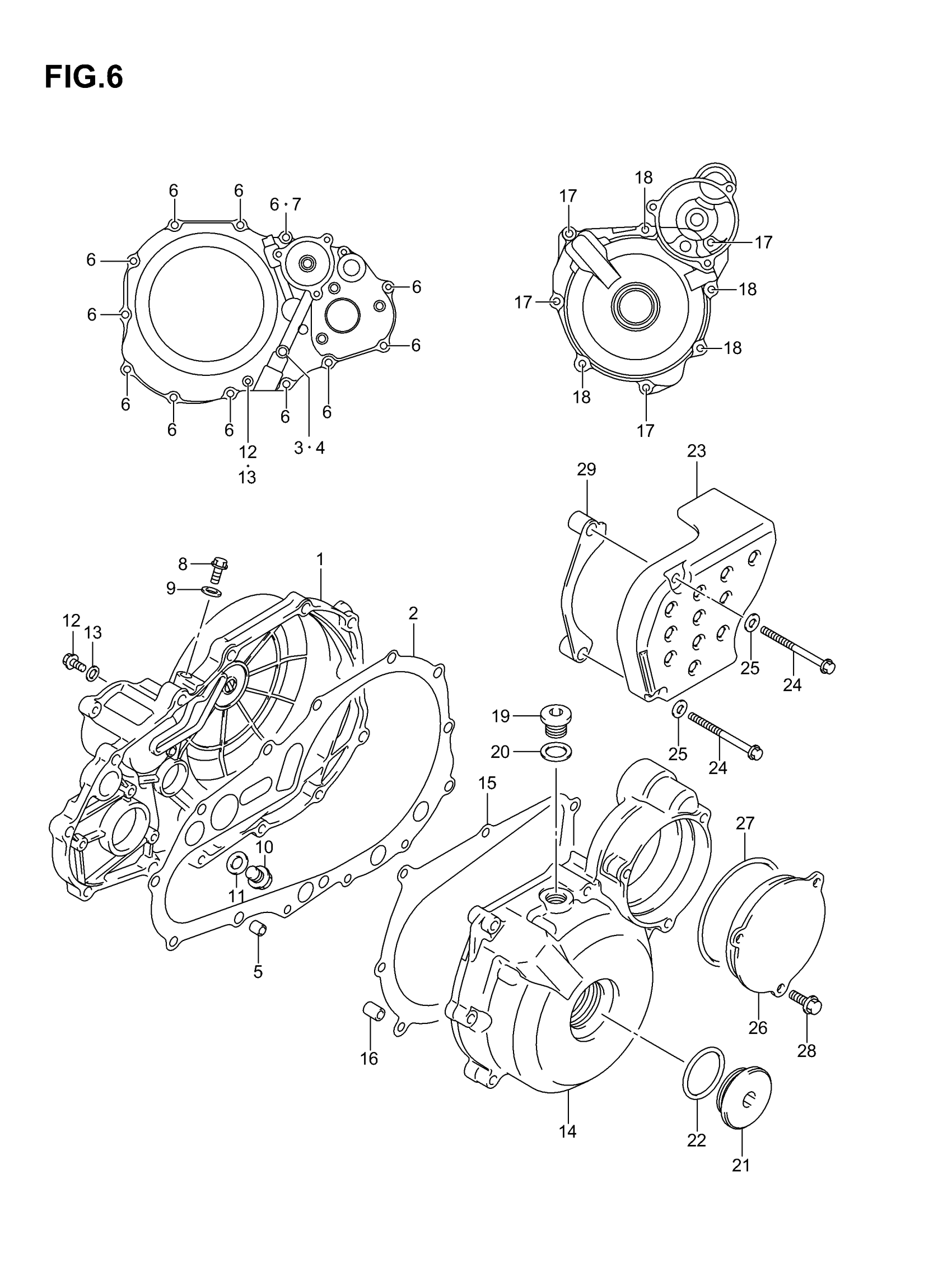

Find the part on the Crankcase Cover diagram for your 2007 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-Z400 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | MODEL K3/K4 This part replaces 11341-07G01.

11341-07G20

1
Out of stock

1

COVER, CLUTCH | MODEL K5/K6/K7 This part replaces 11341-07G10.

11341-07G20

1
Out of stock

2

GASKET, CLUTCH COVER

11482-07G00

1
Out of stock

3

BOLT (8X12) | MODEL K3/K4 This part replaces 01550-08123.

01550-0812A

1
Out of stock

3

PLUG, OIL GALLERY | MODEL K5/K6/K7

09106-08116

1
Out of stock

4

GASKET (8.2X14X1)

09168-08016

1
Out of stock

5

PIN

04211-09149

2
Out of stock

6

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

12
Out of stock

7

GASKET

09168-06023

1
Out of stock

8

BOLT This part replaces 01547-06123.

01547-0612B

1
Out of stock

9

GASKET

09168-06023

1
Out of stock

10

PLUG, OIL GALLERY (12X10)

09247-12006

1
Out of stock

11

GASKET (12.1X16.2X1.2)

09168-12002

1
Out of stock

12

BOLT | MODEL K3/K4 This part replaces 01550-06103.

01550-0610A

1
Out of stock

13

GASKET (6.2X11X1.2) | MODEL K3/K4

09168-06004

1
Out of stock

14

COVER, MAGNETO | MODEL K3/K4 This part replaces 11351-07G00.

11351-07G10

1
Out of stock

14

COVER, MAGNETO | MODEL K5/K6/K7

11351-07G10

1
Out of stock

15

GASKET, MAGNETO COVER

11483-07G00

1
Out of stock

16

PIN

04211-09149

2
Out of stock

17

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

4
Out of stock

18

BOLT This part replaces 01547-06403.

01547-0640B

4
Out of stock

19

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

1
Out of stock

20

GASKET (13.8X18.8X0.4)

09168-14002

1
Out of stock

21

PLUG, CRANK HOLE

09259-36016-20H

1
Out of stock

22

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

23

COVER, ENGINE SPROCKET

11360-07G00

1
Out of stock

24

BOLT This part replaces 01547-06603.

01547-0660B

2
Out of stock

25

WASHER (6.5X14X2.0)

09160-06126

2
Out of stock

26

COVER, STARTER IDLE GEAR

11352-29F50

1
Out of stock

27

O RING (D:2.6,ID:69.6)

09280-71004

1
Out of stock

28

BOLT This part replaces 01547-06163.

01547-0616B

3
Out of stock

29

PLATE, CHAIN GUIDE

27640-07G00

1
Out of stock
