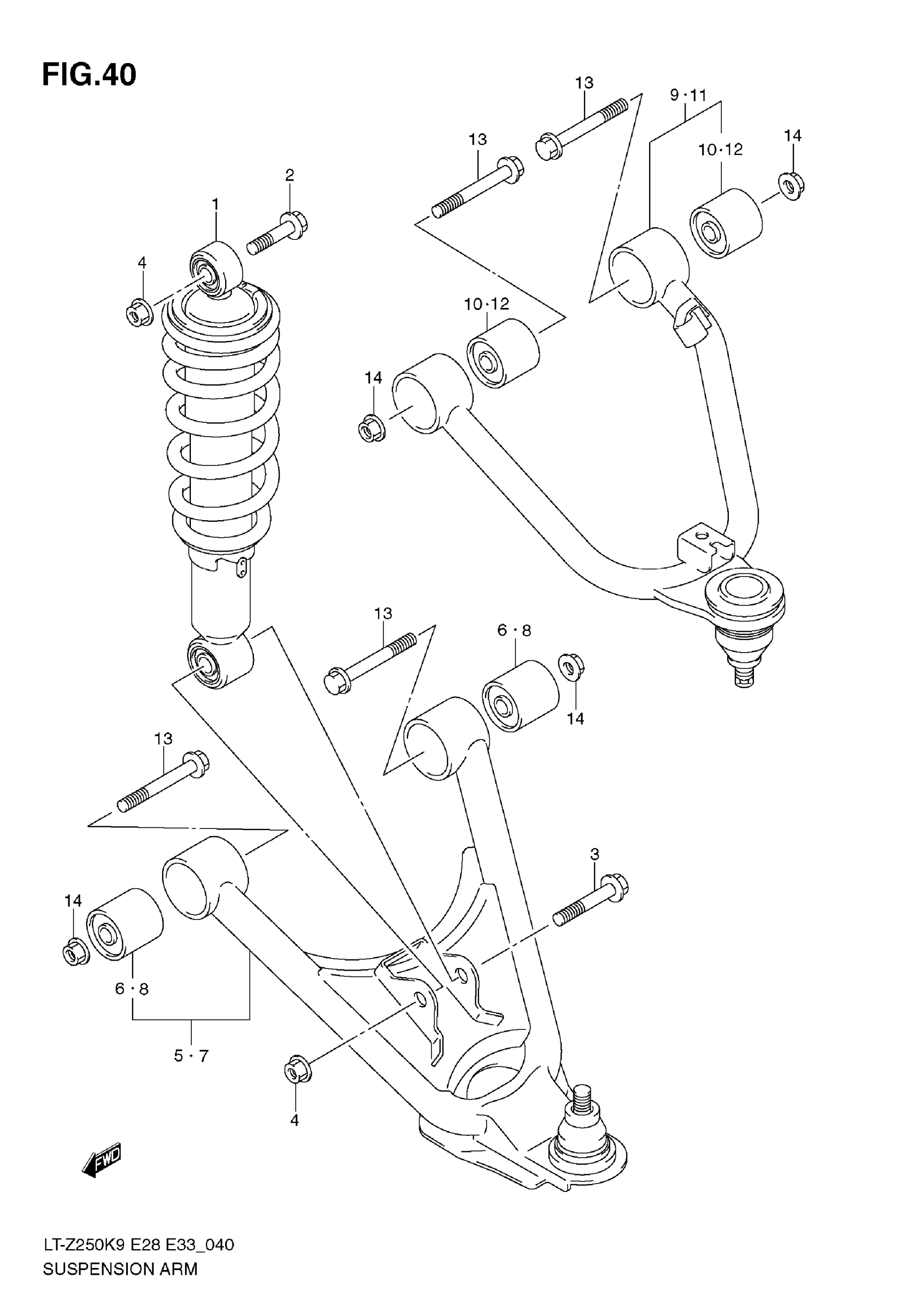

Suzuki LT-Z250 (2009) SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (WHITE) | FOR 30H

52100-21G00-28W

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (RED) | FOR YU1

52100-21G00-YKS

Unavailable

2

BOLT, UPPER

09103-10351

$6.75

3

BOLT, LOWER

09103-10126

$4.07

4

NUT

09159-10115

$3.21

5

ARM SET, SUSPENSION LOWER RH | Includes Item(s) 6

52410-21812-YD8

$328.50

6

BUSH (10X35.1X38)

09319-10055

$19.25

7

ARM SET, SUSPENSION LOWER LH | Includes Item(s) 8

52420-21812-YD8

$328.50

8

BUSH (10X35.1X38)

09319-10055

$19.25

9

ARM SET, SUSPENSION UPPER RH | Includes Item(s) 10

52430-21812-YD8

$326.10

10

BUSH (10X35.1X38)

09319-10055

$19.25

11

ARM SET, SUSPENSION UPPER LH | Includes Item(s) 12

52440-21812-YD8

Unavailable

12

BUSH (10X35.1X38)

09319-10055

$19.25

13

BOLT (10X60)

09103-10301

$6.52

14

NUT

09159-10115

$3.21
