2009 Suzuki LT-Z250 Handle BAR Diagram

← All diagrams

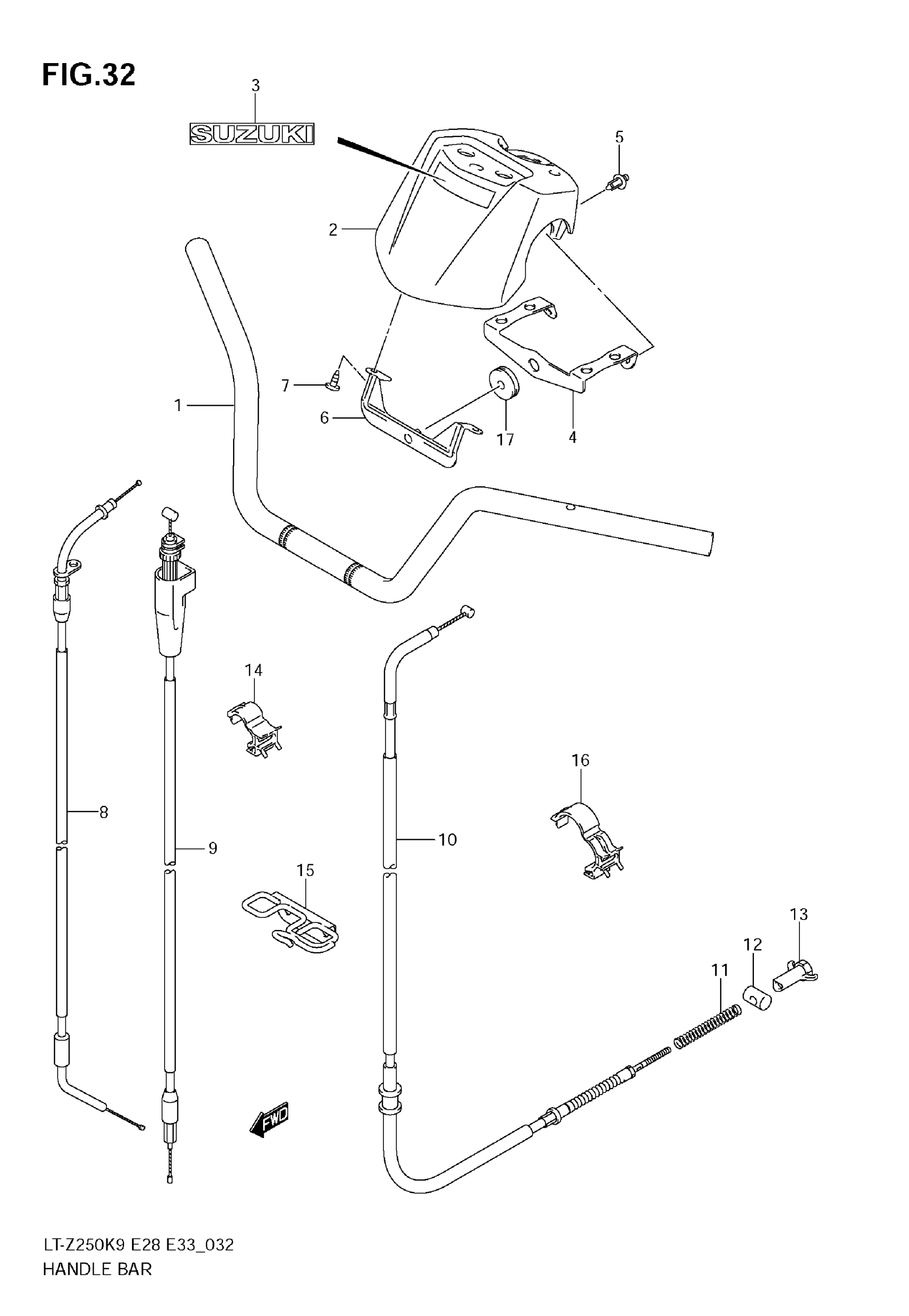

Find the part on the Handle BAR diagram for your 2009 Suzuki LT-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-Z250 Handle BAR Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE BAR

56111-21G00

1
Out of stock

2

COVER,STEERING | FOR 30H This part replaces 56170-05G01-8YM.

56170-05G02-8YM

1
Out of stock

2

COVER,STEERING | FOR YU1; Includes Item(s) 3 - 3 This part replaces 56170-05G01-GY8.

56170-05G02-GY8

1
Out of stock

3

EMBLEM | FOR 8YM This part replaces 68721-05D00-BJB.

68721-05D01-BJB

1
Out of stock

3

EMBLEM | FOR GY8

68721-05D00-GY8

1
Out of stock

4

BRACKET, COVER RH

56411-21G00

1
Out of stock

5

CLIP (BLACK)

09409-06314-5PK

2
Out of stock

6

BRACKET, HEAD COVER

56180-05G00

1
Out of stock

7

SCREW

03541-0512B

2
Out of stock

8

CABLE ASSY,THRO This part replaces 58300-21G20.

58300-21G21

1
Out of stock

9

CABLE, STARTER

58410-21G00

1
Out of stock

10

CABLE, PARKING BRAKE

58810-21G01

1
Out of stock

11

SPRING

09440-08042

1
Out of stock

12

PIN

09209-13006

1
Out of stock

13

NUT

09150-06015

1
Out of stock

14

CLAMP

09403-10405

1
Out of stock

15

GUIDE, CABLE

58620-21G00

1
Out of stock

16

CLAMP

09403-20403

2
Out of stock

17

CUSHION, BRACKET

09320-08018

1
Out of stock
