2009 Suzuki LT-Z250 Steering Knuckle Diagram

← All diagrams

Find the part on the Steering Knuckle diagram for your 2009 Suzuki LT-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

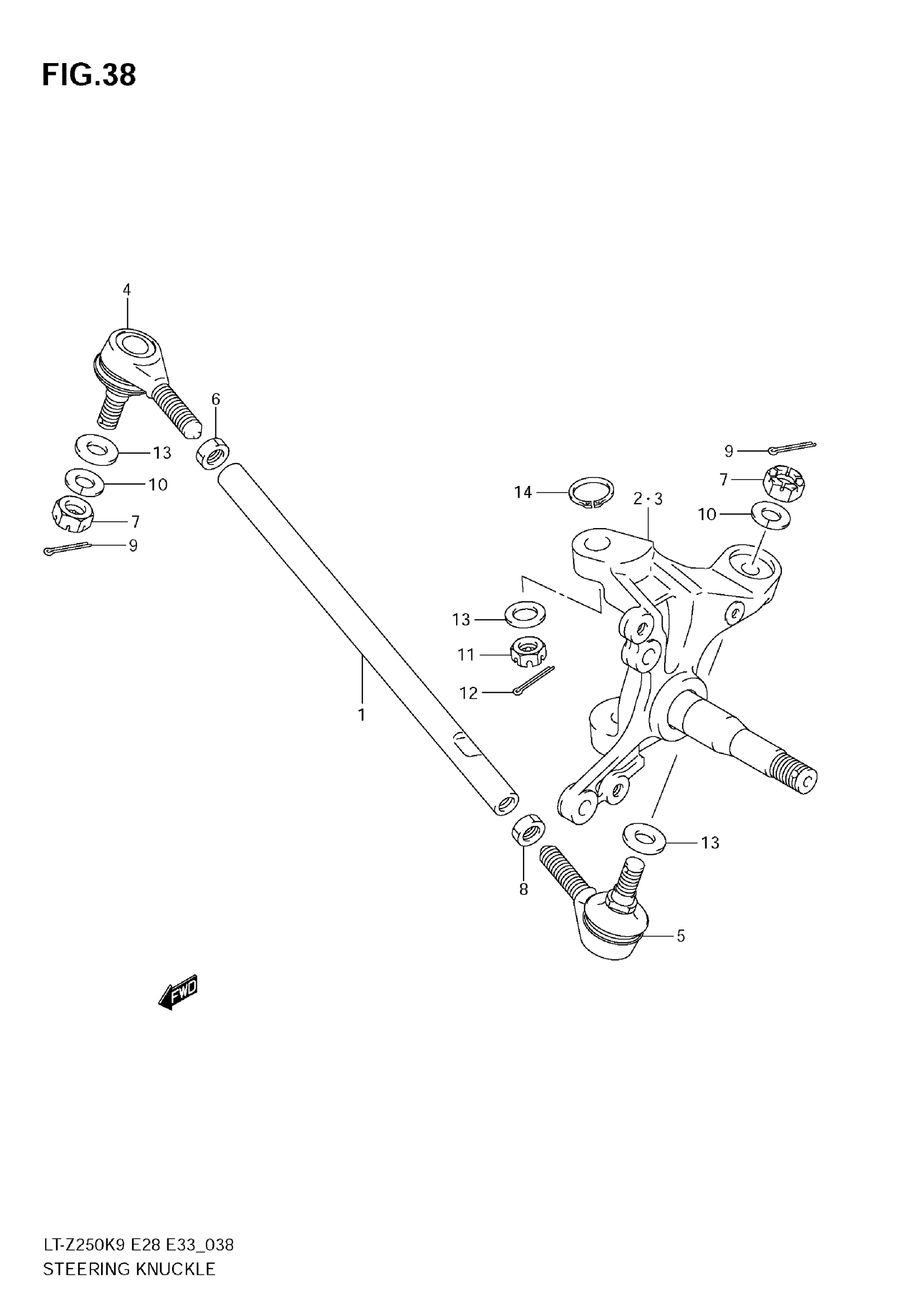

2009 Suzuki LT-Z250 Steering Knuckle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TIE ROD, STEERING

51281-21G00

2
Out of stock

2

KNUCKLE,STEERIN This part replaces 51230-21G00.

51230-21G10

1
Out of stock

3

KNUCKLE,STEERIN This part replaces 51240-21G00.

51240-21G10

1
Out of stock

4

ROD, END RH

51260-21G00

2
Out of stock

5

ROD, END LH

51270-21G00

2
Out of stock

6

NUT, TIE-ROD RH

51283-21G00

2
Out of stock

7

NUT, ROD END

08314-4010A

4
Out of stock

8

NUT, TIE ROD LH

09140-10027

2
Out of stock

9

COTTER PIN, ROD END

04111-2020A

4
Out of stock

10

WASHER, ROD END

09162-10010

4
Out of stock

11

NUT, KNUCKLE END

08314-4010A

4
Out of stock

12

COTTER PIN, KNUCKLE END

04111-2525A

—
Out of stock

13

WASHER, KNUCKLE END

08321-0110A

4

$2.02

In stock

14

CIRCLIP, KNUCKLE END

08331-3132A

4
Out of stock
