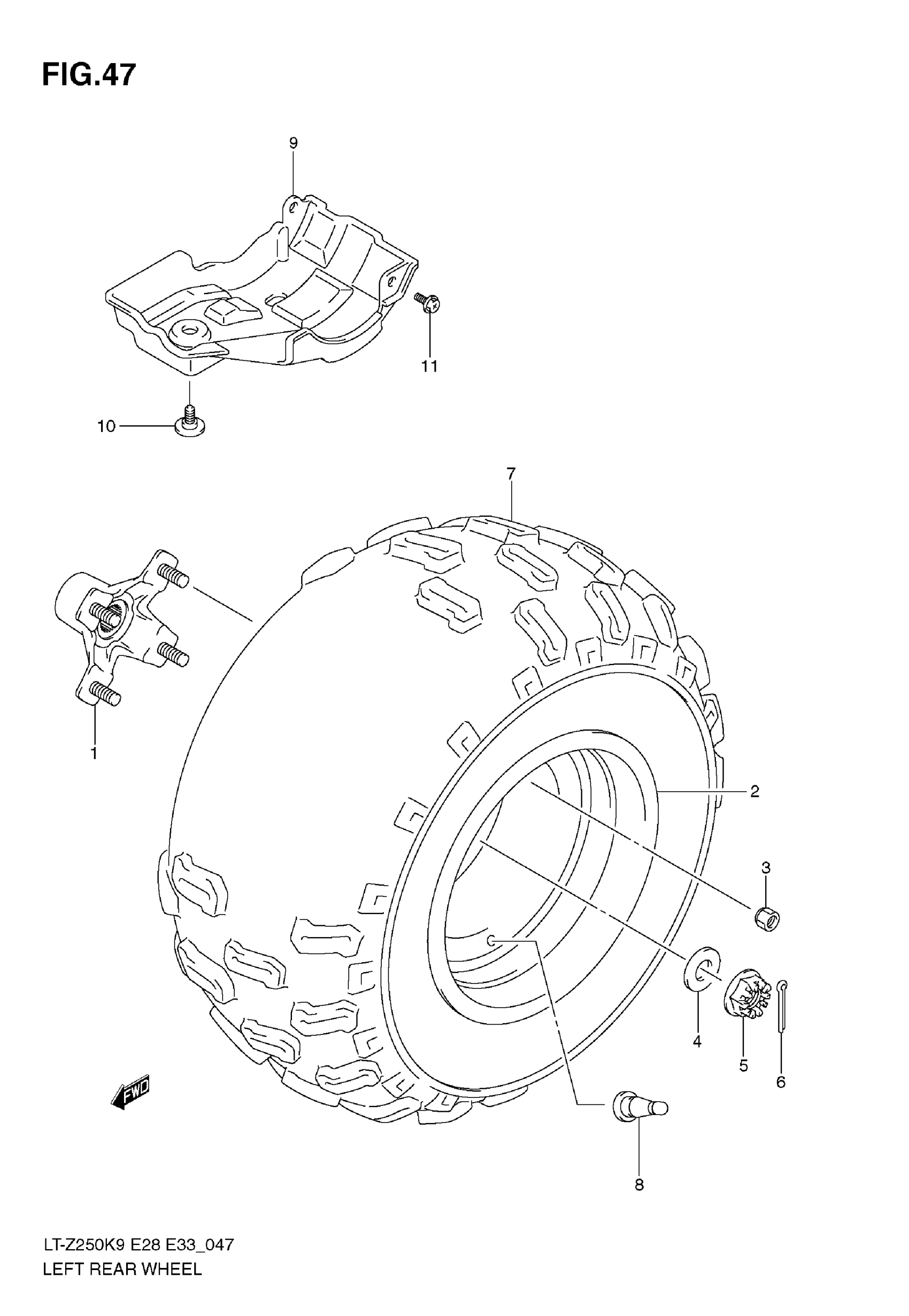

Suzuki LT-Z250 (2009) LEFT REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL LH

64110-21G20-019

$257.48

2

RIM, REAR WHEEL (9X8.0AT)

65310-07G10

Unavailable

3

NUT

09159-10114

$4.82

4

WASHER

09164-18004

$3.49

5

NUT, HUB

09141-18010

$9.54

6

COTTER PIN

04111-4040A

$1.41

7

TIRE COMP,REAR This part replaces 65110-21G10.

65110-21G20

Unavailable

8

VALVE ASSY, WHEEL RIM, TR412

43130-24A00

$8.46

9

PROTECTOR, FINAL CASE

61391-05G01

$52.60

10

BOLT, FRONT This part replaces 61393-09F00.

61393-09F10

$7.02

11

BOLT, REAR

09111-06095

$2.21
