2008 Suzuki LT-Z250 Suspension ARM Diagram

← All diagrams

Find the part on the Suspension ARM diagram for your 2008 Suzuki LT-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

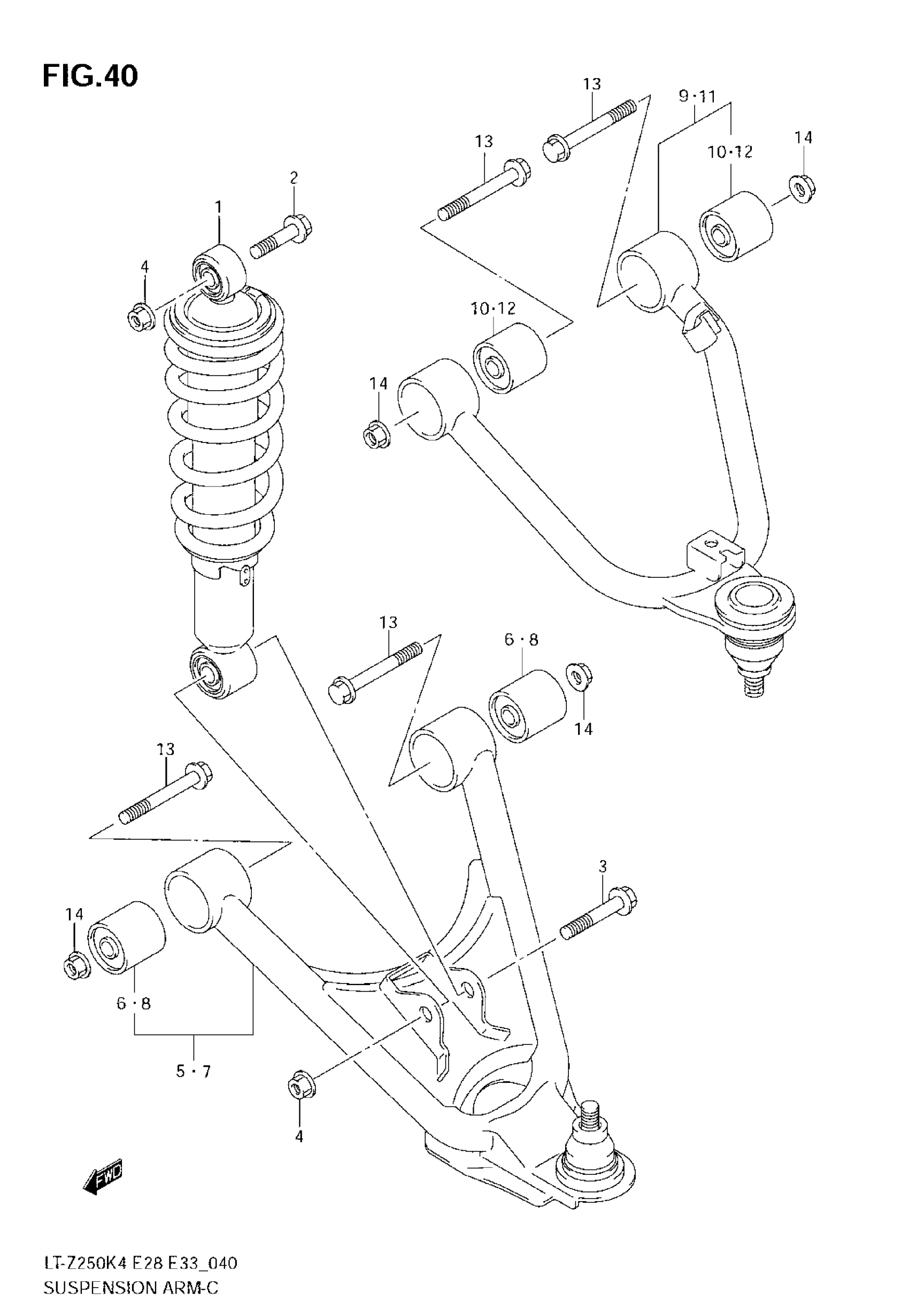

2008 Suzuki LT-Z250 Suspension ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, FRONT SHOCK (RED) | MODEL K4

52100-21G00-37W

2
Out of stock

1

ABSORBER ASSY, FRONT SHOCK (YELLOW) | MODEL K5 FOR YU1

52100-21G00-163

2
Out of stock

1

ABSORBER ASSY, FRONT SHOCK (WHITE) | MODEL K5/K6/K7/K8 FOR 30H

52100-21G00-28W

2
Out of stock

1

ABSORBER ASSY, FRONT SHOCK (RED) | MODEL K5/K6/K7/K8 FOR YU1

52100-21G00-YKS

2
Out of stock

2

BOLT, UPPER

09103-10351

2

$6.75

In stock

3

BOLT, LOWER

09103-10126

2
Out of stock

4

NUT, REAR SWGARM BRACKET | MODEL K4/K5/K6 This part replaces 09159-10058.

09159-10115

4
Out of stock

4

NUT | MODEL K7/K8

09159-10115

4
Out of stock

6

BUSH (10X35.1X38)

09319-10055

2
Out of stock

8

BUSH (10X35.1X38)

09319-10055

2
Out of stock

10

BUSH (10X35.1X38)

09319-10055

2
Out of stock

11

ARM SET, SUSPENSION UPPER LH | Includes Item(s) 12 This part replaces 52440-21811-YD8.

52440-21812-YD8

1
Out of stock

12

BUSH (10X35.1X38)

09319-10055

2
Out of stock

13

BOLT (10X60)

09103-10301

8

$6.52

In stock

14

NUT, REAR SWGARM BRACKET | MODEL K4/K5/K6 This part replaces 09159-10058.

09159-10115

8
Out of stock

14

NUT | MODEL K7/K8

09159-10115

8
Out of stock
