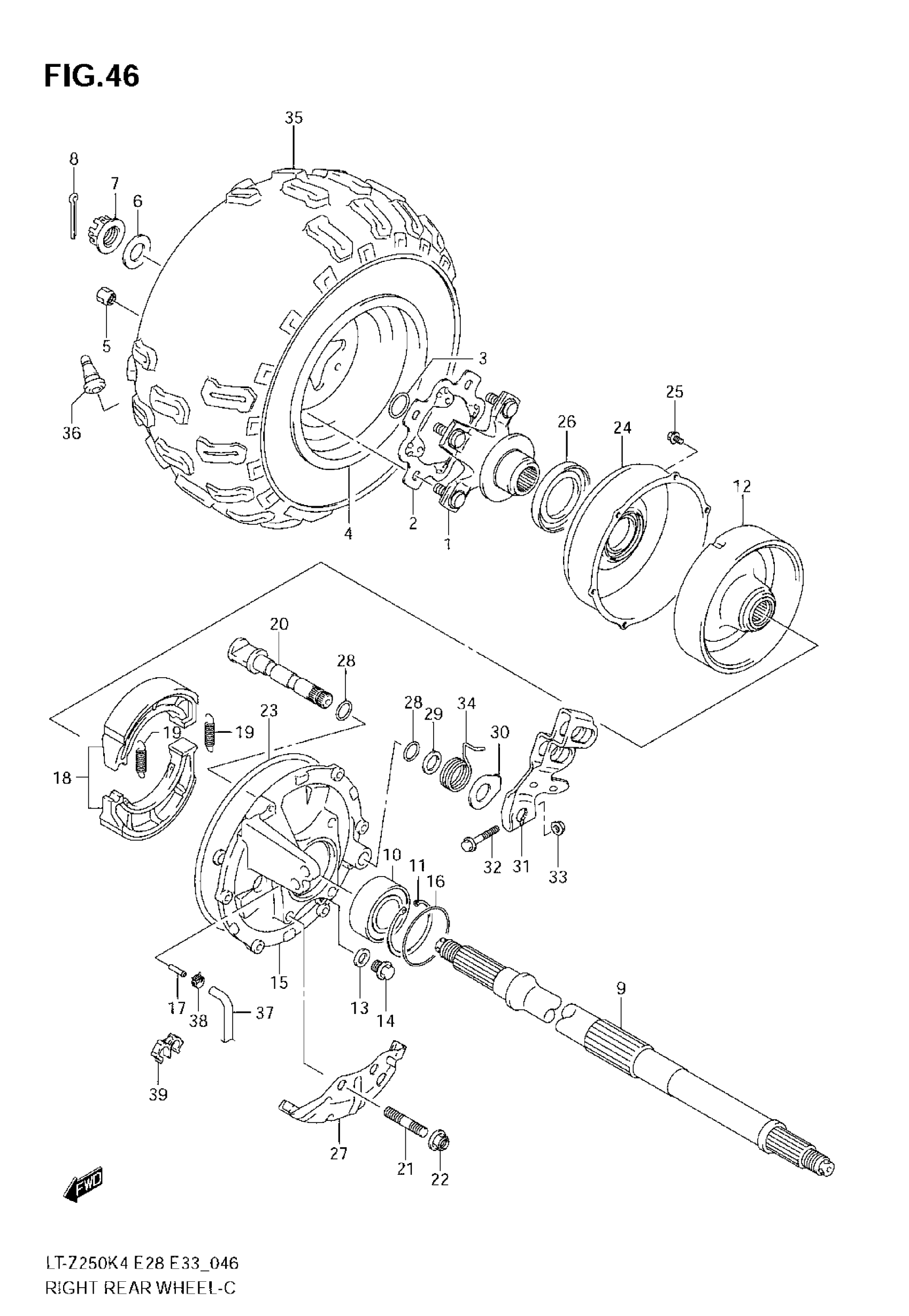

Suzuki LT-Z250 (2008) RIGHT REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL RH | MODEL K4 This part replaces 64110-21G10.

64110-21G30-019

$302.53

1

HUB, REAR WHEEL RH | MODEL K5/K6/K7/K8

64110-21G30-019

$302.53

2

PLATE, REAR HUB, R

64138-21G00

$16.07

3

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55

4

RIM, REAR WHEEL (9X8.0AT) | MODEL K4/K5 This part replaces 65310-07G00.

65310-07G10

Unavailable

4

RIM, REAR WHEEL (9X8.0AT) | MODEL K6/K7/K8

65310-07G10

Unavailable

5

NUT | MODEL K4/K5

09140-10021

$2.01

5

NUT | MODEL K6/K7/K8

09159-10114

$4.67

6

WASHER

09164-18004

$3.38

7

NUT, HUB

09141-18010

$9.25

8

COTTER PIN

04111-4035A

$1.37

9

AXLE, REAR

64711-21G00

$784.98

10

BEARING(30X62X2 This part replaces 09267-30013.

09267-30015

$139.85

11

CLIP | MODEL K4/K5/K6 This part replaces 08331-41626.

08331-4162A

$3.56

11

CLIP | MODEL K7/K8 This part replaces 08331-41629.

08331-4162A

$3.56

12

DRUM, BRAKE

64120-05G10

$333.90

13

WASHER, DRAIN PLUG

09161-10007

$1.55

14

PLUG, DRAIN

09247-10008

$1.97

15

PANEL, BRAKE ANCHOR

64210-05G01

$337.60

16

O RING This part replaces 09280-68008.

09280-68011

$2.80

17

UNION, PANEL

09364-04004

$13.58

18

SHOE SET, BRAKE

64400-05820

$59.65

19

SPRING, SHOE

55421-20E00

$2.80

20

CAM, REAR BRAKE

64440-05G01

$23.29

21

BOLT, PANEL

09108-10089

$3.81

22

NUT, REAR SWGARM BRACKET | MODEL K4/K5/K6 This part replaces 09159-10058.

09159-10115

$3.21

22

NUT, PANEL | MODEL K7/K8

09159-10115

$3.21

23

O RING, PANEL

09280-00039

$18.75

24

COVER, REAR BRAKE

64123-05G00

$115.93

25

BOLT

01547-0612B

$1.22

26

DUST SEAL, DRUM COVER

64124-05G00

$25.32

27

GUARD, RR BRAKE DRUM

64280-21G00

Unavailable

28

O RING, CAM

09280-14004

$1.67

29

WASHER

09160-14055

$2.40

30

PLATE, BRAKE LINING INDICATOR

64492-21G00

$5.41

31

LEVER, BRAKE CAM

64451-05G00

$37.48

32

BOLT

01550-0635B

$2.75

33

NUT

08316-1006B

$2.50

34

SPRING, CAM LEVER

64484-05G00

$8.41

35

TIRE COMP,REAR | MODEL K4/K5/K6 This part replaces 65110-21G00.

65110-21G20

Unavailable

35

TIRE COMP,REAR | MODEL K7/K8 This part replaces 65110-21G10.

65110-21G20

Unavailable

36

VALVE ASSY, WHEEL RIM, TR412

43130-24A00

$8.10

37

HOSE(4X7X2000) This part replaces 09352-40703-00B.

09352-40706-00B

$14.63

38

CLIP, HOSE

09401-06405

$2.67

39

CLIP, HOSE & CABLE

09408-00200

$2.98
