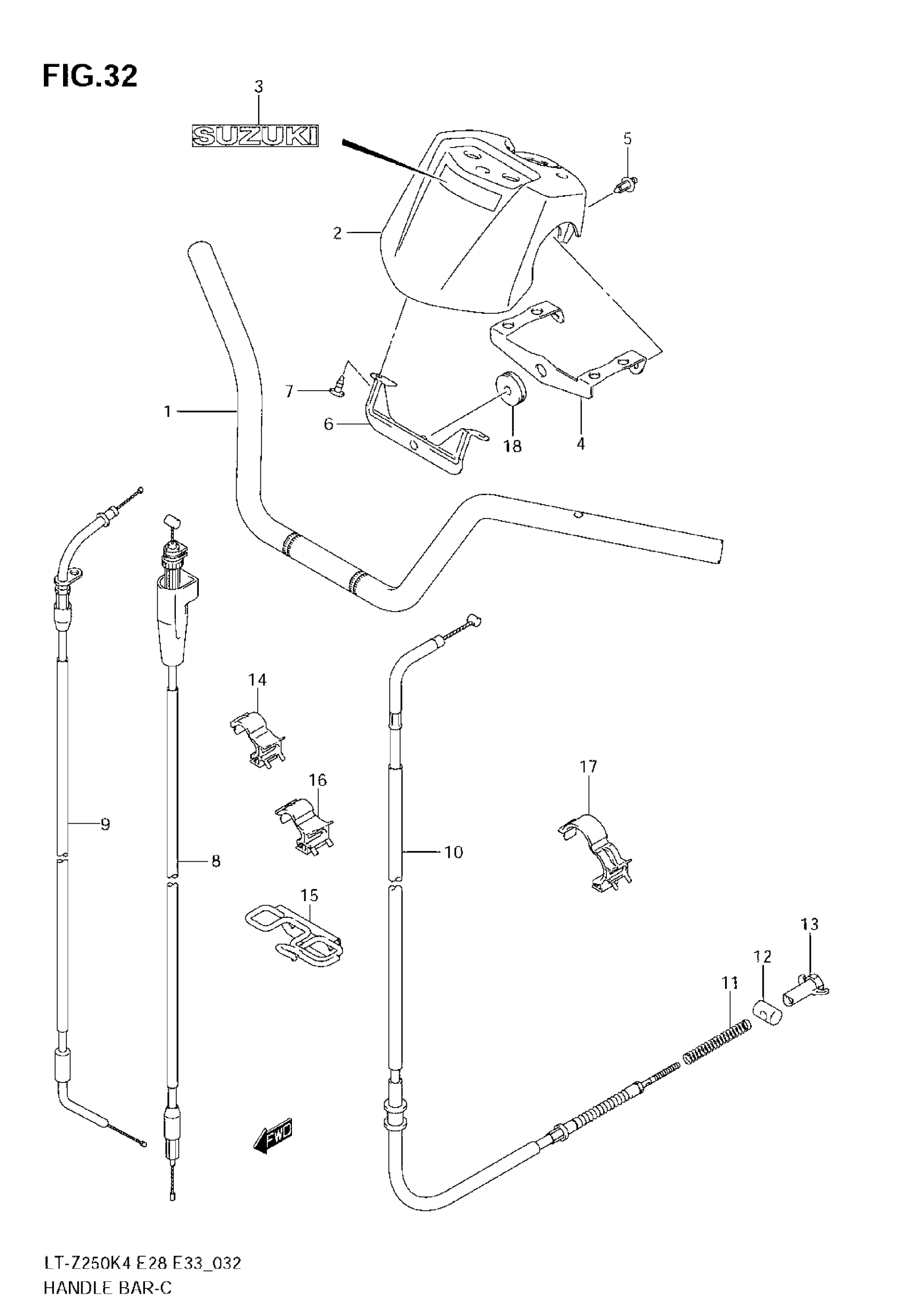

Suzuki LT-Z250 (2008) HANDLE BAR Diagram

#

Description
Price

1

HANDLE BAR

56111-21G00

$202.82

2

COVER,STEERING | MODEL K4/K5 FOR YU1 This part replaces 56170-05G01-GY8.

56170-05G02-GY8

Unavailable

2

COVER,STEERING | MODEL K6 FOR YU1 This part replaces 56170-05G01-4MX.

56170-05G02-4MX

Unavailable

2

COVER,STEERING | MODEL K4 FOR 30H This part replaces 56170-05G01-77S.

56170-05G02-77S

Unavailable

2

COVER,STEERING | MODEL K5/K6/K7/K8 FOR 30H This part replaces 56170-05G01-8YM.

56170-05G02-8YM

Unavailable

2

COVER,STEERING | MODEL K7/K8 FOR YU1; Includes Item(s) 3 - 3 This part replaces 56170-05G01-GY8.

56170-05G02-GY8

Unavailable

3

EMBLEM | FOR GY8

68721-05D00-GY8

$14.02

3

EMBLEM,SUZUKI | FOR 77S This part replaces 68721-05D00-8YM.

68721-05D01-8YM

$10.52

3

EMBLEM | MODEL K5 FOR 8YM This part replaces 68721-05D00-BJB.

68721-05D01-BJB

$11.58

3

EMBLEM | FOR 4MX

68721-05D00-CFL

Unavailable

3

EMBLEM,SUZUKI | MODEL K6/K7 FOR 8YM This part replaces 68721-05D00-8YM.

68721-05D01-8YM

$10.52

3

EMBLEM | MODEL K8 FOR 8YM This part replaces 68721-05D00-BJB.

68721-05D01-BJB

$11.58

4

BRACKET, COVER RH

56411-21G00

$20.22

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

BRACKET, HEAD COVER

56180-05G00

$26.67

7

SCREW

03541-0512B

$1.77

8

CABLE ASSY, THROTTLE | MODEL K4

58300-21G00

$42.98

8

CABLE ASSY, THROTTLE | MODEL K5/K6/K7/K8

58300-21G10

$44.02

9

CABLE, STARTER

58410-21G00

$46.82

10

CABLE, PARKING BRAKE

58810-21G01

$86.88

11

SPRING

09440-08042

$2.80

12

PIN

09209-13006

$4.73

13

NUT

09150-06015

$3.26

14

CLAMP

09403-10405

$3.42

15

GUIDE, CABLE

58620-21G00

Unavailable

16

CLAMP

09403-08407

Unavailable

17

CLAMP

09403-20403

$4.00

18

CUSHION, BRACKET

09320-08018

$2.80
