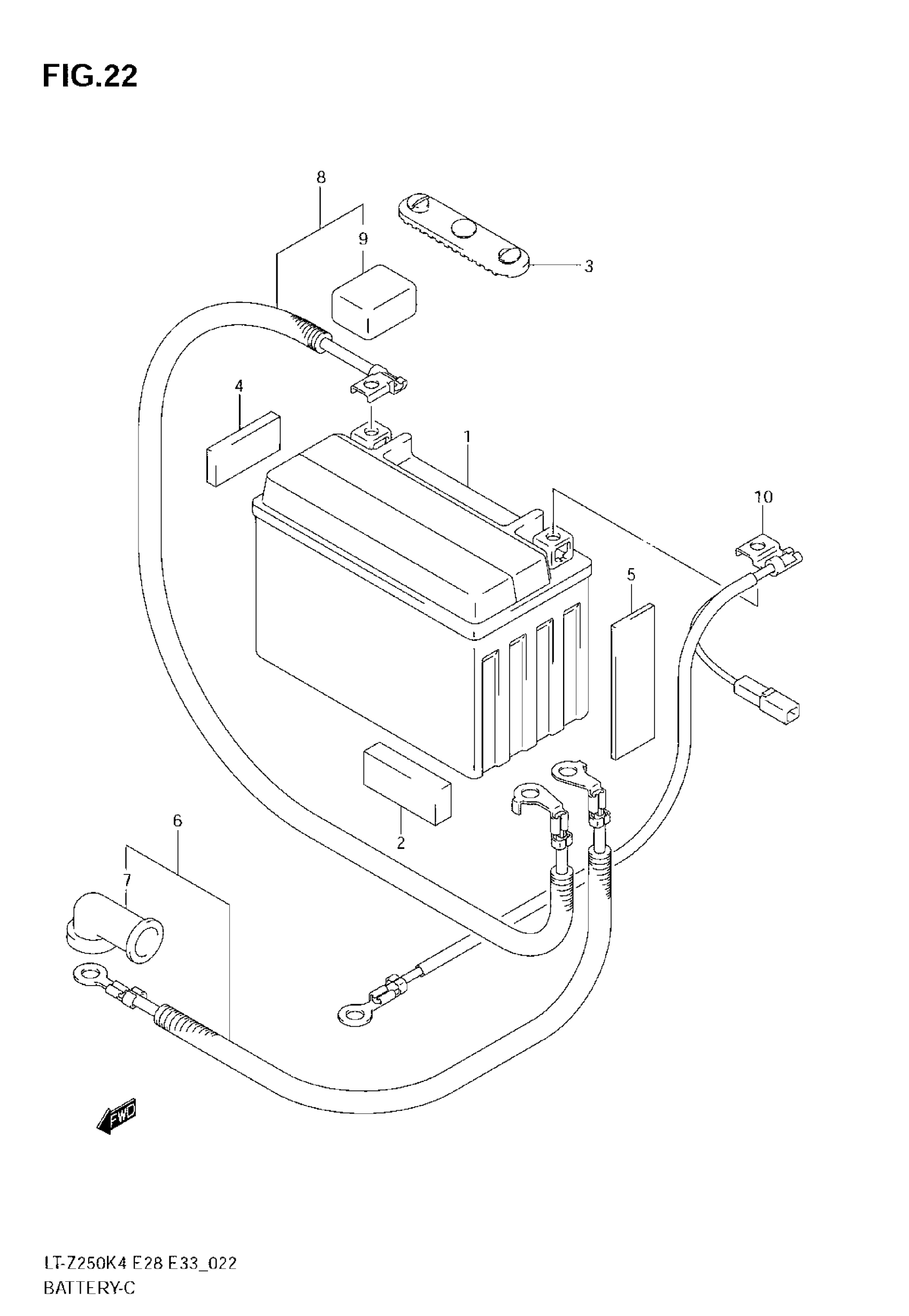

Suzuki LT-Z250 (2008) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (12V,8AH) This part replaces 33610-32C10.

33610-33E20

$143.93

2

PROTECTOR (20X50X8)

33652-35400

Unavailable

3

PROTECTOR, BATTERY

33652-07G00

$3.81

4

PROTECTOR (40X20X3)

33652-01A10

Unavailable

5

CUSHION, BATTERY (30X130X3) This part replaces 33652-41B00.

33652-19B00

$5.67

6

WIRE, STARTER MOTOR | Includes Item(s) 7

33810-21G00

$43.95

7

CAP, STARTER MOTOR

31861-48B10

$7.40

8

WIRE, BATTERY PLUS | Includes Item(s) 9

33820-21G00

Unavailable

9

CAP, BATTERY PLUS

33624-10D00

$7.12

10

WIRE, BATTERY MINUS

33860-21G00

$31.43
