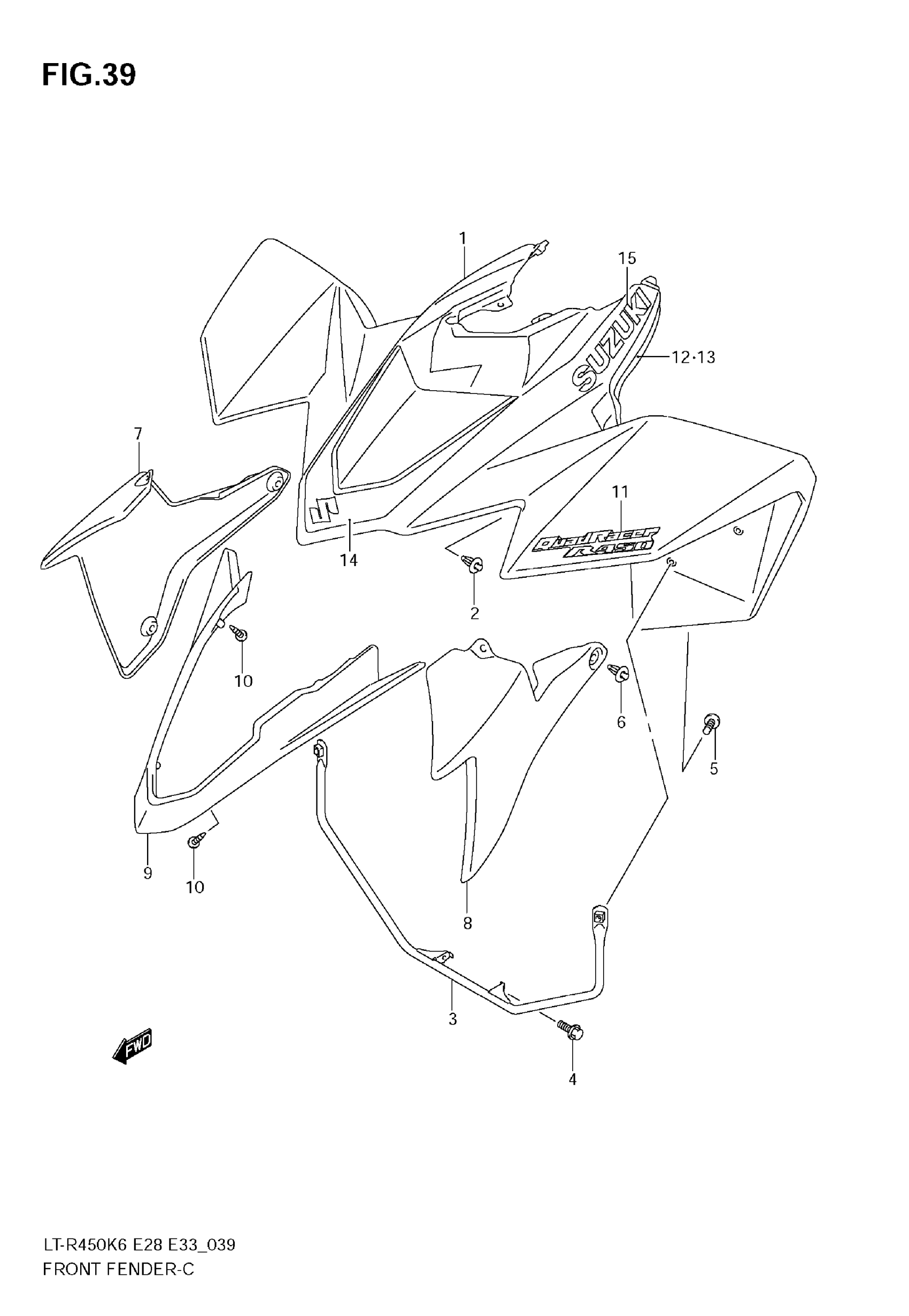

Suzuki LT-R450 (2009) FRONT FENDER (MODEL K6) Diagram

#

Description
Price

1

FENDER, FRONT (YELLOW)

53111-45G00-YU1

$627.23

1

FENDER, FRONT (WHITE)

53111-45G00-30H

$627.23

2

CLIP

09409-08335

$2.44

3

BRACKET, FRONT FENDER

53210-45G00

$213.55

4

BOLT (8X12)

01550-0812A

$2.31

5

SCREW

09139-06152

$5.35

6

CLIP

09409-07333

$2.29

7

COVER, SIDE RH (YELLOW)

53112-45G00-YU1

$102.35

7

COVER, SIDE RH (WHITE)

53112-45G00-30H

$102.35

8

COVER, SIDE LH (YELLOW)

53122-45G00-YU1

$102.35

8

COVER, SIDE LH (WHITE)

53122-45G00-30H

$72.94

9

COVER, HEADLAMP (YELLOW)

53119-45G00-YU1

$114.15

9

COVER, HEADLAMP (WHITE)

53119-45G00-30H

$115.72

10

SCREW

03541-0516A

$1.37

11

EMBLEM, "450" | FOR YU1

68151-45G00-DCP

Unavailable

11

EMBLEM, "450" | FOR 30H

68151-45G00-DCR

Unavailable

12

TAPE, SIDE RH | FOR YU1

68155-45G00-CEZ

Unavailable

12

TAPE, SIDE RH | FOR 30H

68155-45G00-CHG

Unavailable

13

TAPE, SIDE LH | FOR YU1

68156-45G00-CEZ

Unavailable

13

TAPE, SIDE LH | FOR 30H

68156-45G00-CHG

Unavailable

14

TAPE, FRONT | FOR YU1

68155-45G10-DCM

Unavailable

14

TAPE, FRONT | FOR 30H

68155-45G10-DCN

Unavailable

15

EMBLEM,SUZUKI | FOR YU1 This part replaces 68661-29F00-CFL.

68661-29F01-CFL

$28.10

15

EMBLEM,SUZUKI | FOR 30H This part replaces 68661-29F00-8YM.

68661-29F01-8YM

$21.97
