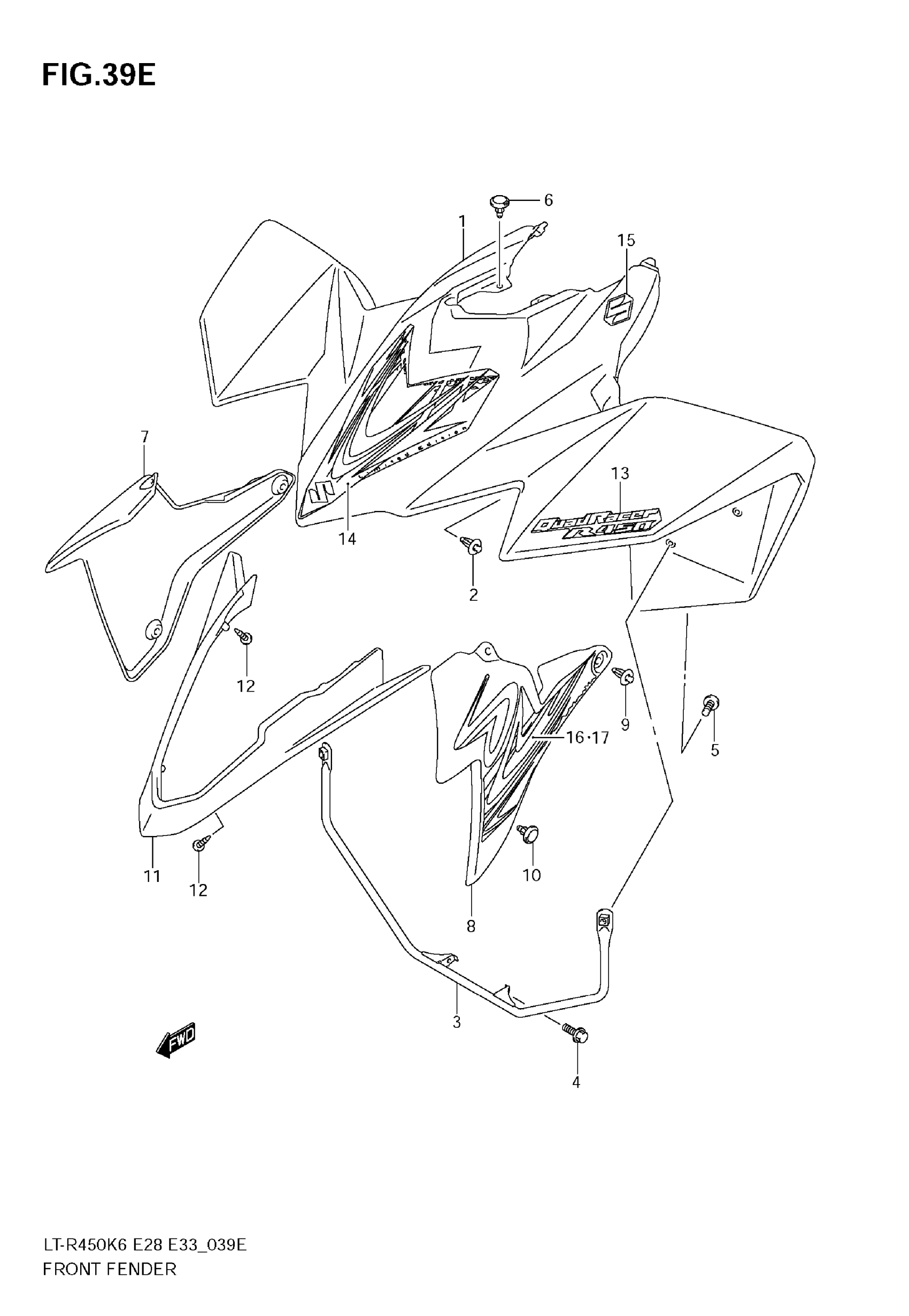

Suzuki LT-R450 (2009) FRONT FENDER (LT-R450ZK9) Diagram

#

Description
Price

1

FENDER, FRONT (BLACK) | FOR 019

53111-45G00-019

$627.23

1

FENDER, FRONT (RED) | FOR ANT

53111-45G00-YT9

$639.08

2

CLIP

09409-08335

$2.44

3

BRACKET, FRONT FENDER

53210-45G00

$213.55

4

BOLT (8X12)

01550-0812A

$2.31

5

SCREW

09139-06152

$5.35

6

CLIP

09409-08327

$2.31

7

COVER, SIDE RH (BLACK)

53112-45G00-019

$102.35

8

COVER, SIDE LH (BLACK)

53122-45G00-019

$102.35

9

CLIP

09409-07333

$2.29

10

CLIP, LOWER

09409-08327

$2.31

11

COVER, HEADLAMP (BLACK)

53119-45G00-019

$113.60

12

SCREW

03541-0516A

$1.37

13

EMBLEM, "450" | FOR 019

68151-45G10-GVY

Unavailable

13

EMBLEM, "450" | FOR ANT

68151-45G10-CEU

Unavailable

14

TAPE, FRONT | FOR 019

68155-33HA0-GVE

Unavailable

14

TAPE, FRONT | FOR ANT

68155-33HA0-GVF

Unavailable

15

EMBLEM, "S" | FOR 019

68151-33HA0-CT5

$18.70

15

EMBLEM, "S" | FOR ANT

68151-33HA0-GVK

Unavailable

16

TAPE SET, SIDE COVER RH | FOR 019

68140-45GA0-GVL

Unavailable

16

TAPE SET, SIDE COVER RH | FOR ANT

68140-45GA0-GVM

Unavailable

17

TAPE SET, SIDE COVER LH | FOR 019

68150-45GA0-GVL

Unavailable

17

TAPE SET, SIDE COVER LH | FOR ANT

68150-45GA0-GVM

Unavailable
