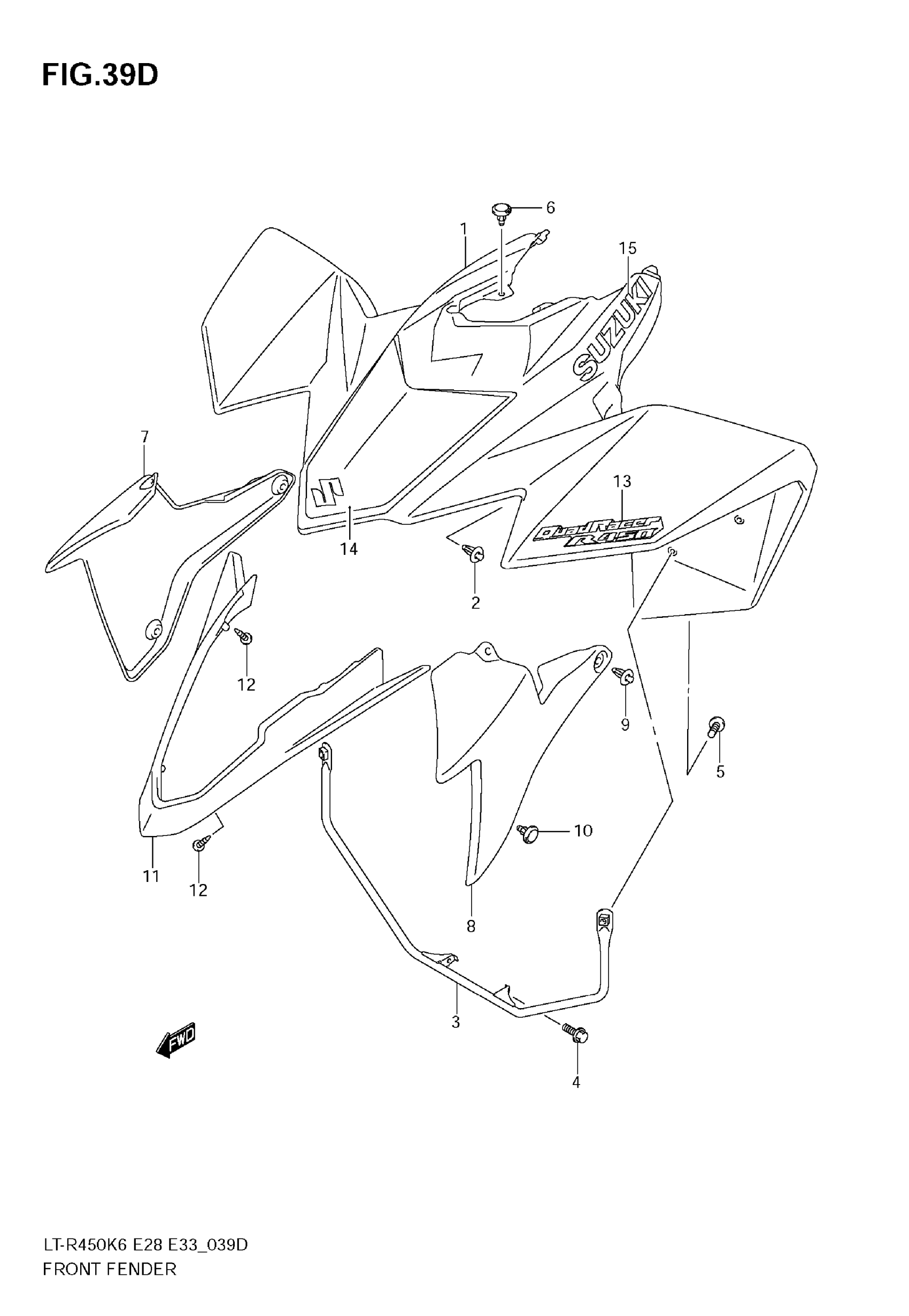

Suzuki LT-R450 (2009) FRONT FENDER (LT-R450K9) Diagram

#

Description
Price

1

FENDER, FRONT (YELLOW)

53111-45G00-YU1

$627.23

2

CLIP

09409-08335

$2.44

3

BRACKET, FRONT FENDER

53210-45G00

$213.55

4

BOLT (8X12)

01550-0812A

$2.31

5

SCREW

09139-06158

$4.42

6

CLIP

09409-08327

$2.31

7

COVER, SIDE RH (YELLOW)

53112-45G00-YU1

$102.35

8

COVER, SIDE LH (YELLOW)

53122-45G00-YU1

$102.35

9

CLIP, SIDE COVER

09409-07333

$2.29

10

CLIP, LOWER

09409-08327

$2.31

11

COVER, HEADLAMP (YELLOW)

53119-45G00-YU1

$114.15

12

SCREW

03541-0516A

$1.37

13

EMBLEM, "450"

68151-45G10-DCP

$21.28

14

TAPE, FRONT

68155-45G90-GTC

Unavailable

15

EMBLEM,SUZUKI This part replaces 68661-29F00-GY8.

68661-29F01-GY8

$22.80
