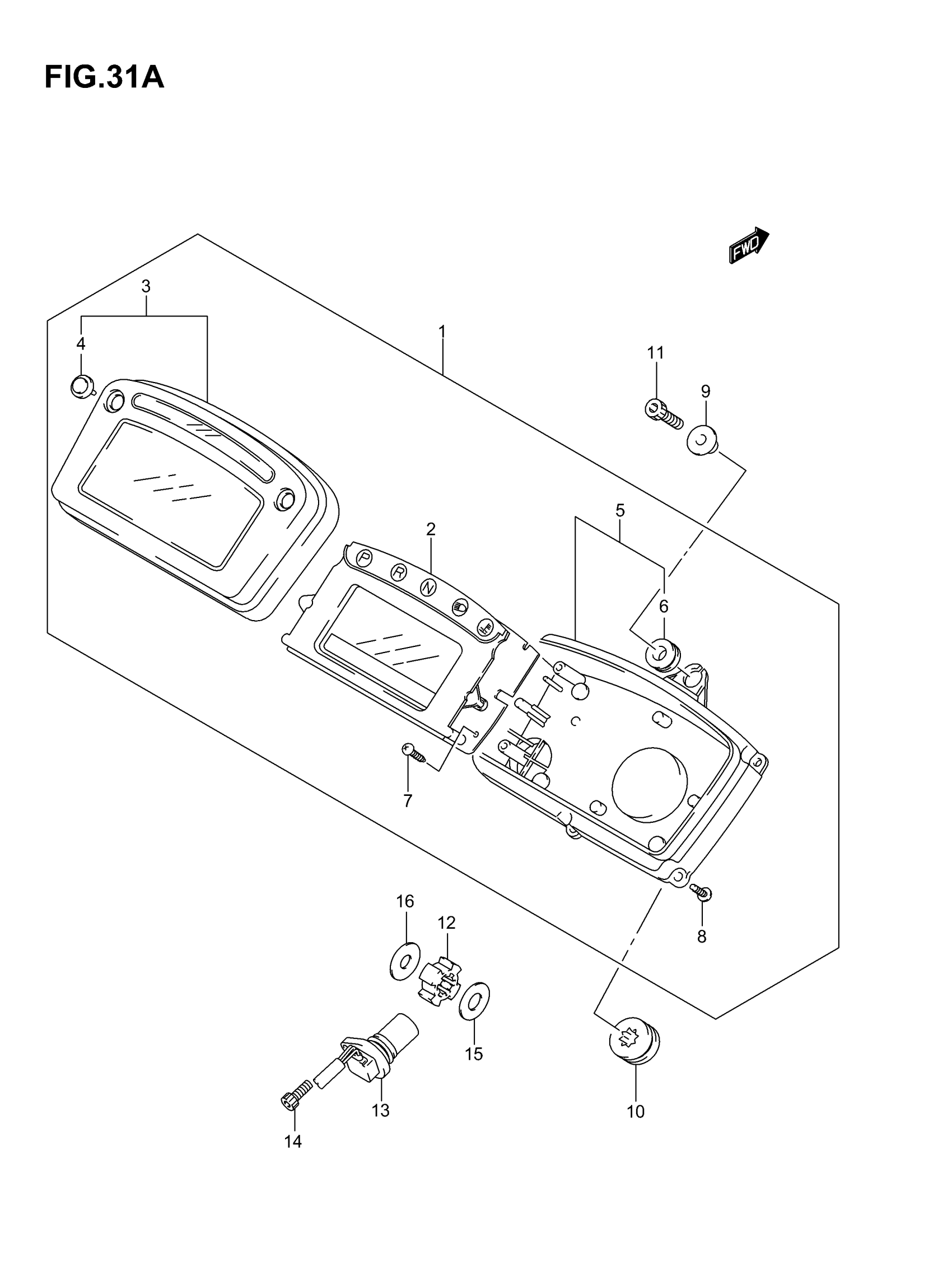

Suzuki LT-F500F (2007) SPEEDOMETER (MODEL K6)(%'05/10) Diagram

#

Description
Price

1

SPEEDOMETER ASSY (MILE) This part replaces 34100-03GC0.

34100-03GG0

Unavailable

1

SPEEDOMETER ASSY (KILO) | E28; Includes Item(s) 2 - 8

34100-03GD0

Unavailable

2

L/CD METER

34120-03GC0

Unavailable

2

L/CD METER | E28

34120-03GD0

Unavailable

3

CASE, UPPER

34150-31G00

$110.28

4

SWITCH LEVER

34124-24F00

$9.97

5

CASE, LOWER

34111-31G00

$58.50

6

DAMPER

34955-33E00

$3.26

7

SCREW (3X14)

34149-31F10

$4.62

8

SCREW (3X14)

34149-03G00

$3.50

9

SPACER

34187-47F00

$8.87

10

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.80

11

BOLT This part replaces 07130-05203.

07130-0520B

$3.18

12

ROTOR, SPEED

34981-03G00

Unavailable

13

SENSOR,SPEED This part replaces 34990-03G00.

34990-03G01

Unavailable

14

BOLT, SENSOR

09106-06073

$2.38

15

WASHER, SPEED ROTOR

08211-10281

$2.06

16

WASHER, SPEED ROTOR

08211-12282

$2.88
