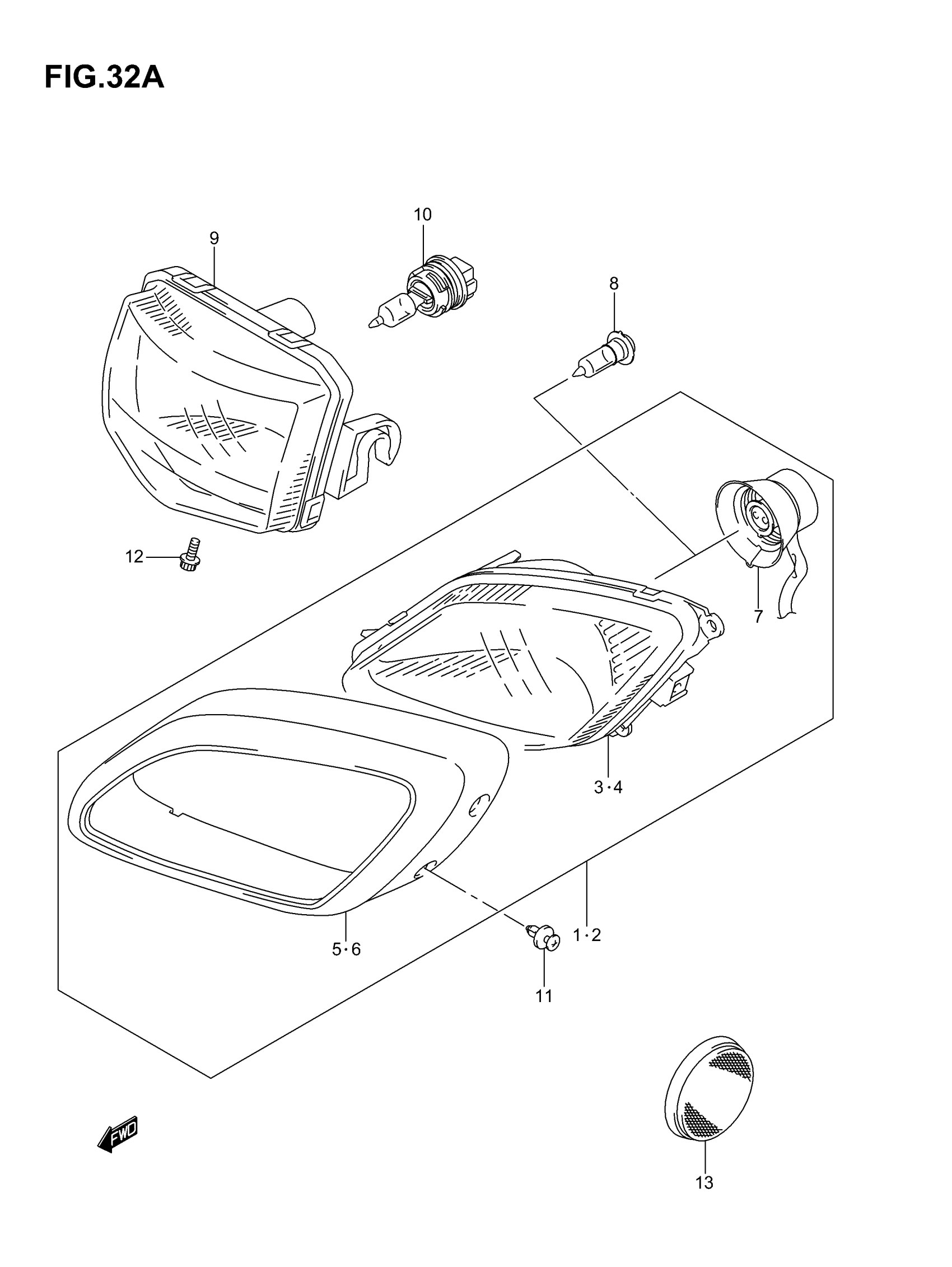

Find the part on the Headlamp diagram for your 2007 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-F500F Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$298.30

In stock

3

UNIT, RH

35121-03G00

1

$195.13

In stock

4

UNIT, LH

35321-03G00

1

$207.17

In stock

5

RIM, RH

35127-03G00

1

$34.98

In stock

6

RIM, LH

35327-03G00

1

$36.30

In stock

7

CORD ASSY This part replaces 35171-03G00.

35171-03G01

2
Out of stock

8

2

$28.59

In stock

9

1

$131.07

In stock

10

BULB (12V,40/40W)

09471-12217

1

$60.52

In stock

11

CLIP

09409-06322-5PK

4

$3.04

In stock

12

1

$2.82

In stock

13

2

$17.36

In stock
