2007 Suzuki LT-F500F Speedometer Diagram

← All diagrams

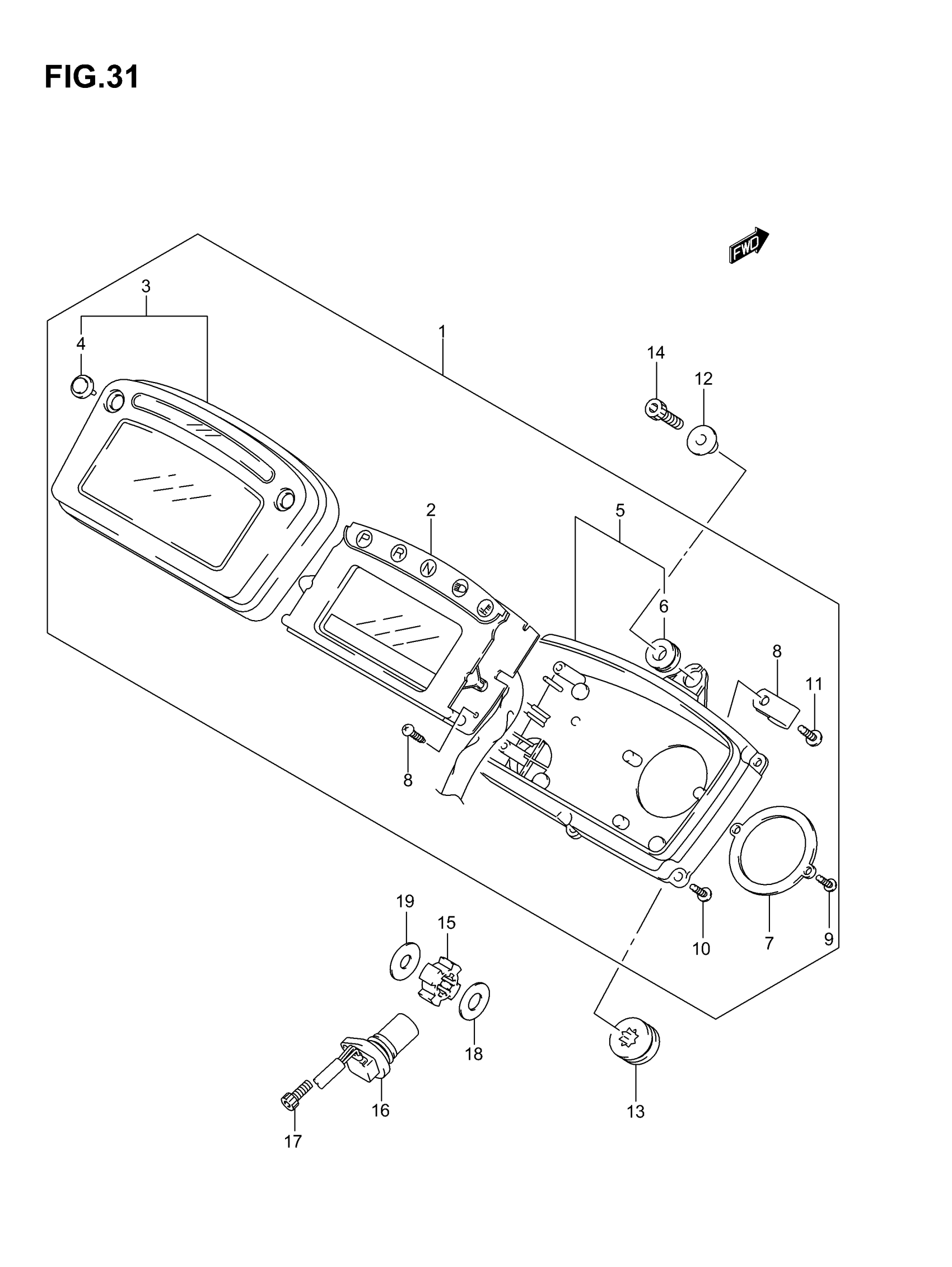

Find the part on the Speedometer diagram for your 2007 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-F500F Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY (MILE)

34100-03G80

1
Out of stock

1

SPEEDOMETER ASSY (KILO) | E28; Includes Item(s) 2 - 11

34100-03G90

1
Out of stock

2

SPEEDOMETER

34120-03G80

1
Out of stock

2

SPEEDOMETER | E28

34120-03G90

1
Out of stock

3

CASE, UPPER This part replaces 34150-03G00.

34150-31G00

1
Out of stock

4

SWITCH LEVER

34124-24F00

2
Out of stock

5

CASE, LOWER

34111-03G60

1
Out of stock

6

DAMPER

34955-33E00

1
Out of stock

7

BRACKET

34128-03G00

1
Out of stock

8

CLAMP

34198-03A50

1
Out of stock

9

SCREW (3X14)

34149-31F10

4
Out of stock

10

SCREW (3X14)

34149-03G00

8
Out of stock

11

1

$1.49

In stock

12

SPACER

34187-47F00

1
Out of stock

13

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

2
Out of stock

14

BOLT This part replaces 07130-05203.

07130-0520B

1
Out of stock

15

ROTOR, SPEED

34981-03G00

1
Out of stock

16

SENSOR,SPEED This part replaces 34990-03G00.

34990-03G01

1
Out of stock

17

BOLT, SENSOR

09106-06073

1
Out of stock

18

WASHER, SPEED ROTOR

08211-10281

1
Out of stock

19

WASHER, SPEED ROTOR

08211-12282

1
Out of stock
