2007 Suzuki LT-F500F Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2007 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

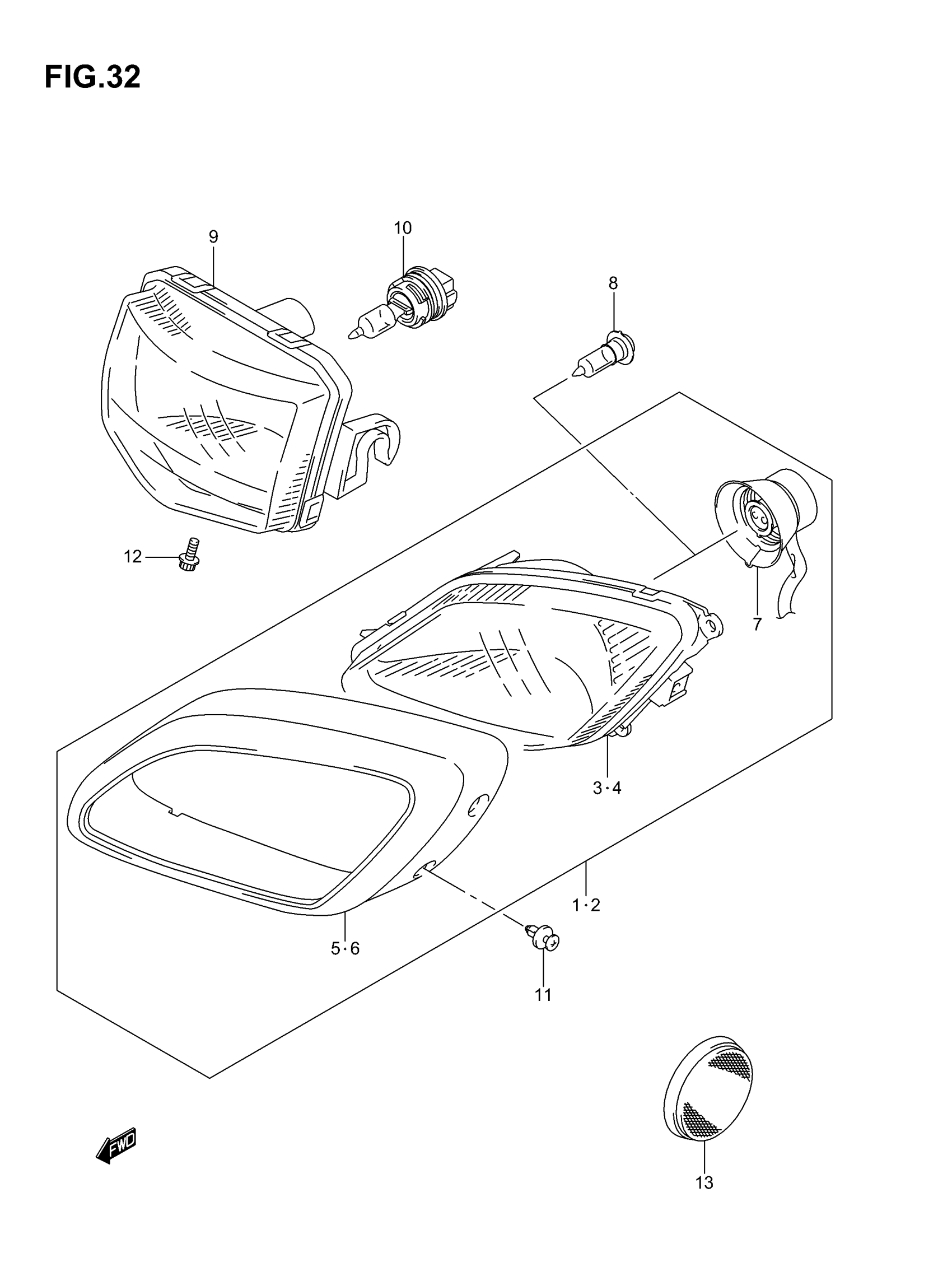

2007 Suzuki LT-F500F Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY, RH This part replaces 35100-03G00-999.

35100-03G60-999

1
Out of stock

2

HEADLAMP ASSY, LH | Includes Item(s) 3 - 7 This part replaces 35300-03G00-999.

35300-03G60-999

1
Out of stock

3

UNIT, RH

35121-03G00

1
Out of stock

4

UNIT, LH

35321-03G00

1
Out of stock

5

RIM, RH

35127-03G00

1
Out of stock

6

RIM, LH

35327-03G00

1
Out of stock

7

CORD ASSY This part replaces 35171-03G00.

35171-03G01

2
Out of stock

8

BULB (12V,30/30W) This part replaces 09471-12097.

09471-12093

2
Out of stock

9

HEADLAMP ASSY, AUX

35100-03GA1-999

1
Out of stock

10

BULB (12V,40/40W)

09471-12207

1
Out of stock

11

CLIP

09409-06322-5PK

4
Out of stock

12

BOLT, GEAR SHIFT SW This part replaces 07120-05163.

07120-0516B

1
Out of stock

13

REFLEX REFLECTOR ASSY, FRONT | E28

35950-14A00

2
Out of stock
