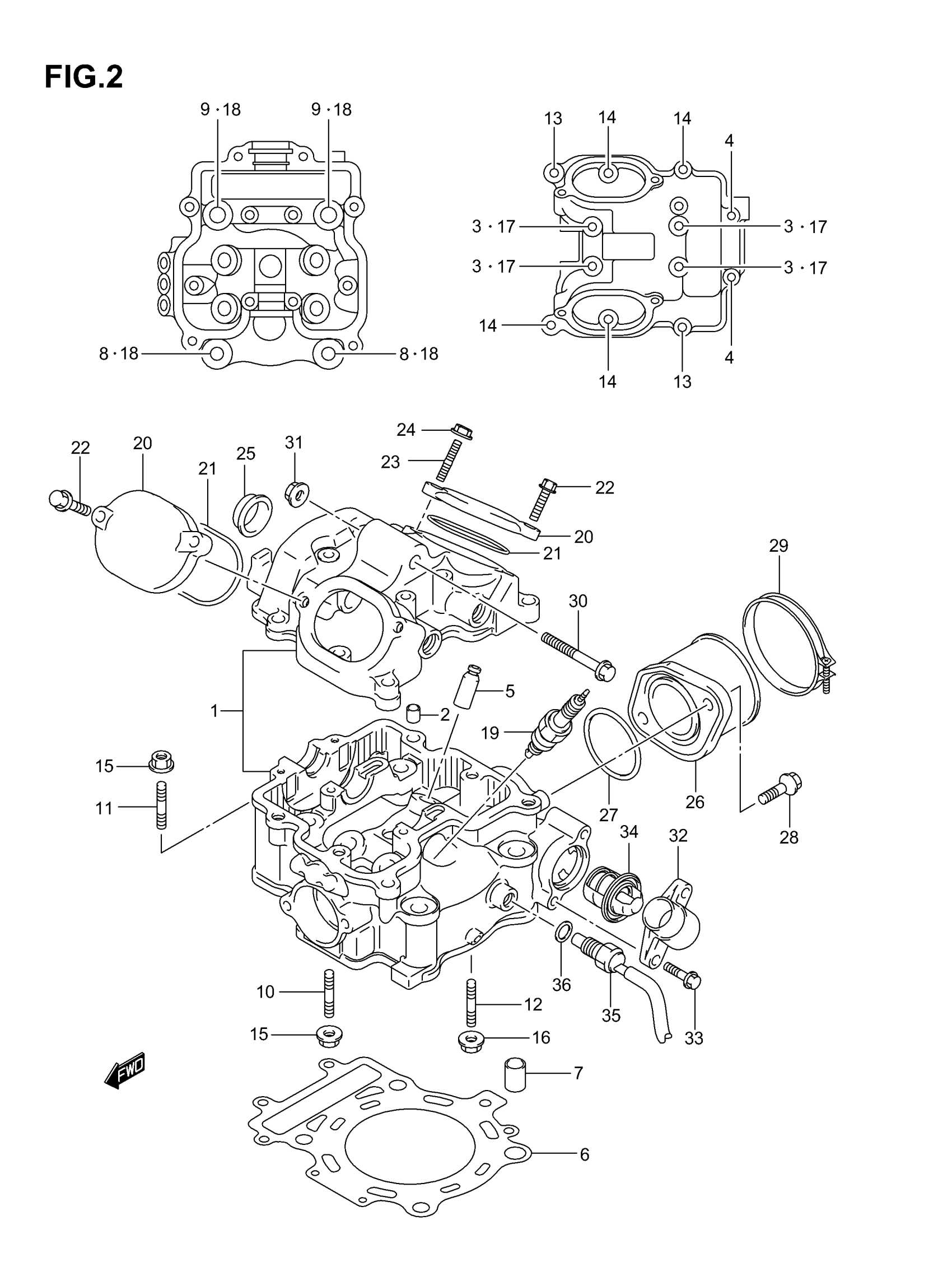

Suzuki LT-F500F (2007) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | MODEL K4/K5

11100-44D00

Unavailable

1

HEAD ASSY, CYLINDER | MODEL K6/K7; Includes Item(s) 2 - 4

11100-44D50

Unavailable

2

PIN

09206-08001

$1.77

3

BOLT (6X55)

09103-06102

$1.68

4

BOLT This part replaces 01550-06303.

01550-0630A

$2.31

5

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

$44.28

6

GASKET, CYLINDER HEAD

11141-09F00

$34.29

7

PIN

04211-13189

$2.19

8

BOLT (10X190)

09103-10179

$14.02

9

BOLT (L:200)

09103-10180

$14.02

10

STUD BOLT This part replaces 01421-06253.

01421-0625A

$2.00

11

BOLT,STUD This part replaces 01421-06503.

01421-0650B

$3.23

12

STUD BOLT This part replaces 01421-08503.

01421-0850A

$3.33

13

BOLT (6X35)

09103-06108

$2.32

14

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

15

NUT This part replaces 08316-10063.

08316-1006B

$2.50

16

NUT This part replaces 08316-10083.

08316-1008B

$2.65

17

WASHER

09168-06023

$2.01

18

GASKET

09168-10017

$2.80

19

SPARK PLUG (NGK,CR6E)

09482-00528

$5.75

19

SPARK PLUG (DENSO,U20ESR-N)

09482-00529

$5.67

19

SPARK PLUG (NGK,CR7E) | OPT

09482-00516

$5.75

19

SPARK PLUG (DENSO,U22ESR-N) | OPT

09482-00515

$5.46

19

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$5.99

19

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

$5.58

20

CAP,INSPECTION

11175-47D00

$27.22

21

.O RING,INSPECTION CAP

11177-14D01

$4.21

22

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

23

BOLT, STUD

09108-06102

$4.43

24

NUT This part replaces 08316-10063.

08316-1006B

$2.50

25

PLUG, HEAD

09241-25007

$5.58

26

PIPE ASSY,INTAK This part replaces 13101-03G00.

13101-03G01

Unavailable

27

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.80

28

SCREW

09119-06092

$2.87

29

CLAMP

09402-52208

$4.84

30

BOLT (8X60) This part replaces 09103-08345.

09103-08217

$4.03

31

NUT This part replaces 08319-31088.

08319-3108A

$2.31

32

COVER, THERMOSTAT

17661-44D00

$50.20

33

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

34

THERMOSTAT,WATE This part replaces 17670-08D10.

17670-08D11

$45.39

35

SWITCH ASSY, WATER TEMP | MODEL K4/K5

34850-03G20

Unavailable

35

SWITCH ASSY, WATER TEMP | MODEL K6/K7

34850-03G10

$101.32

36

GASKET, WATER TEMP SWITCH | MODEL K6/K7

34855-03G00

Unavailable
