2003 Suzuki LT-F500F Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2003 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

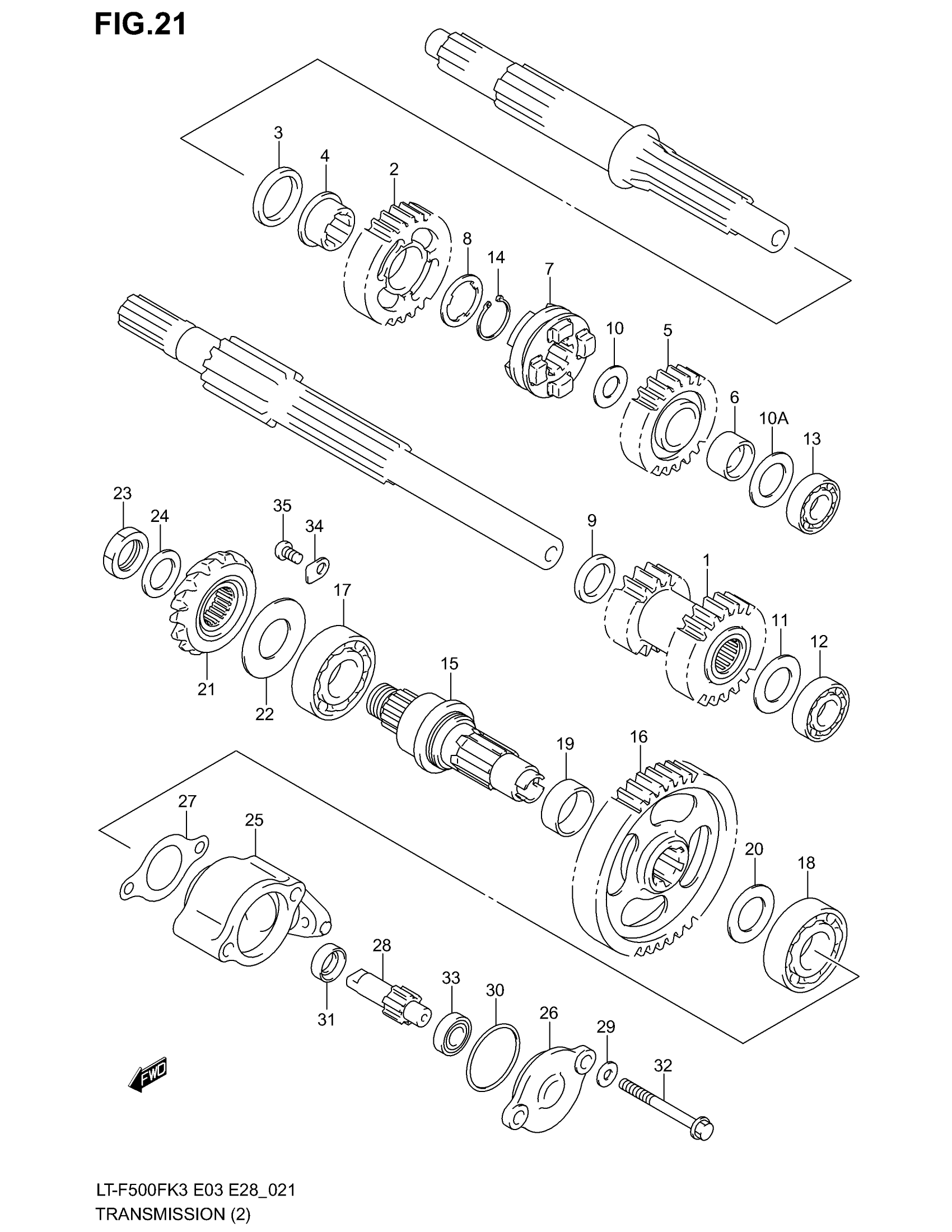

2003 Suzuki LT-F500F Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, SUB T/M IDLE | NT:22/17

29150-44D00

1
Out of stock

2

GEAR, SUB T/M DRIVE NO.1 | NT:27

29211-03G50

1
Out of stock

3

SPACER, SUB T/M DRIVE

29212-44D50

1
Out of stock

4

BUSH, SUB DRIVE NO.1

29215-44D50

1
Out of stock

5

GEAR, SUB T/M DRIVE NO.2 | NT:28

29221-44D50

1
Out of stock

6

BUSH, SUB T/M DRIVE NO.2

29222-44D00

1
Out of stock

7

DOG, SUB T/M SLIDING

29231-03G50

1
Out of stock

8

WASHER, SUB T/M DRIVE

09167-25016

1
Out of stock

9

SPACER, SUB T/M IDLE GEAR

09180-20101

1
Out of stock

10

WASHER, SUB T/M DRIVE NO.2, RH | 20X30X1.0

09181-20195

1
Out of stock

10A

WASHER, SUB T/M DRIVE NO.2 LH | 20X34X1.0

09181-20251

1
Out of stock

11

WASHER, SUB T/M IDLE GEAR | 20X34X1.0

09181-20251

1
Out of stock

12

BEARING, DRIVE SHAFT, LH This part replaces 09262-20081.

09262-20139

1
Out of stock

13

BEARING, DRIVE SHAFT, LH | 20X52X15

09262-20080

1
Out of stock

14

SNAP RING

09380-25003

1
Out of stock

15

SHAFT, SUB T/M OUTPUT This part replaces 29121-44D20.

29121-44D21

1
Out of stock

16

GEAR, SUB T/M DRIVEN | NT:43

29311-03G50

—
Out of stock

17

BEARING, SUB T/M, RH | 35X72X17

09262-35038

1
Out of stock

18

BEARING, SUB T/M, LH | 20X52X15.0

09262-20073

1
Out of stock

19

SPACER, SUB T/M DRIVEN

09180-25037

1
Out of stock

20

WASHER, SUB T/M DRIVEN

09181-20251

1
Out of stock

21

GEAR, SEC DRIVE BEVEL GR | NT:15

24911-44D11

1
Out of stock

22

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.90/0.95/1.00/ 1.05/1.10/1.15 This part replaces 24935-19810.

24935-03811

1
Out of stock

23

NUT, SEC DRIVE BEVEL

09140-20012

1
Out of stock

24

WASHER, SEC DRIVE BEVEL

09164-20007

1
Out of stock

25

HOUSING, ODOMETER GEAR

26441-03G50

1
Out of stock

26

COVER, ODOMETER

26442-03G50

1
Out of stock

27

GASKET, ODOMETER

26451-19B12

1
Out of stock

28

SHAFT, ODOMETER GEAR

26461-03G50

1
Out of stock

29

GASKET, SLEEVE BOLT | 5.8X13X1.2

09168-06023

2
Out of stock

30

O RING, GEAR HOUSING | OD:1.9,ID:32.7

09280-33005

1
Out of stock

31

OIL SEAL (12X21X7) | 12X21X7

09282-12009

1
Out of stock

32

BOLT This part replaces 01547-06503.

01547-0650B

1
Out of stock

33

BEARING, GEAR SHAFT

08130-68007

1

$28.40

In stock

34

RETAINER, SEC DRIVE SFT BRG

24741-21A00

2
Out of stock

35

SCREW (6X12)

09125-06110

2
Out of stock
