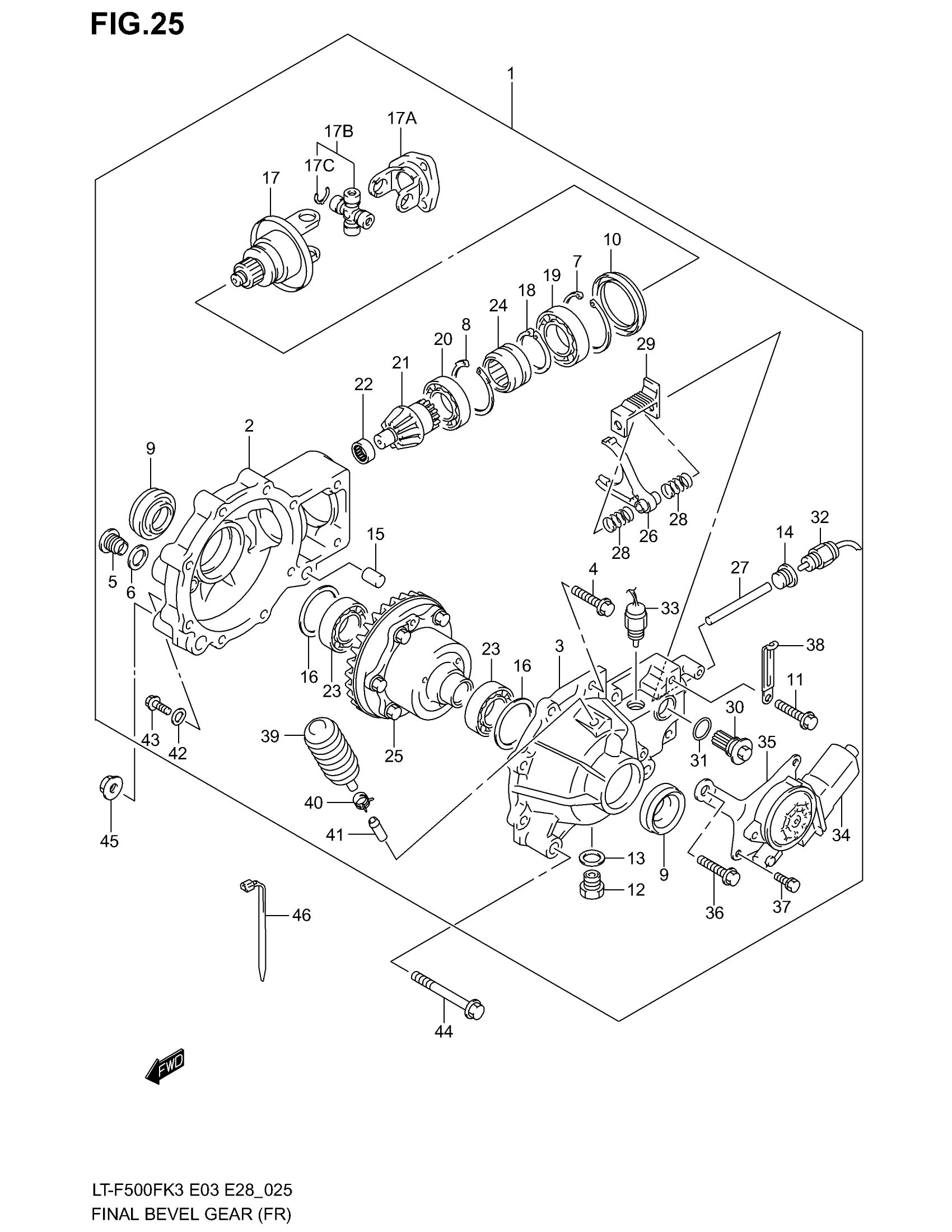

Suzuki LT-F500F (2003) FINAL BEVEL GEAR (FRONT) Diagram

#

Description
Price

1

CASE ASSY, FRONT DIFFERENTIAL | Includes Item(s) 2 - 43 This part replaces 27400-03G10.

27400-03G13

$1,711.97

2

HOUSING FINAL DRIVE, FRONT

27451-38FA0

Unavailable

3

COVER FINAL DRIVE, FRONT

27461-03GA0

Unavailable

4

BOLT (8X25) This part replaces 27401-38FA0.

27401-38FA1

Unavailable

5

PLUG

27409-38FA0

$3.85

6

.WASHER This part replaces 27407-38FA0.

27407-31GA0

$8.37

7

RING SNAP

27403-38FA0

$5.43

8

RING SNAP

27403-38FB0

$5.43

9

OIL SEAL

27406-38FD0

$7.01

10

OIL SEAL

27406-38FB0

$8.98

11

BOLT (6X12)

27401-03GC0

$3.17

12

PLUG

27409-38FB0

Unavailable

13

WASHER

27407-38FB0

$2.56

14

PLUG This part replaces 27409-03GA0.

27409-03GA1

$6.62

15

COLLAR

27404-38FA0

Unavailable

16

SHIM SET | T:0.70/0.75/0.80/0.85/0.90/0.95/ 1.00/1.05/1.10/1.15/1.20/1.25/ 1.30/1.35/1.40/1.45

27445-38FA0

$127.22

17

YOKE ASSY

27130-03GA0

$126.03

17A

YOKE, PROP SHAFT JOINT

27161-03G50

$172.83

17B

JOINT SET,UNIVERSAL This part replaces 27200-19810.

27200-19811

$54.50

17C

CIRCLIP

09380-20016

$2.34

18

SNAP RING

27403-38FC0

$3.68

19

BEARING

27405-38FA0

$27.27

20

BEARING

27405-38FB0

$28.69

21

PINION, DRIVE

27311-03GA0

Unavailable

22

BEARING

27405-38FC0

$11.32

23

BEARING

27405-38FD0

$14.94

24

SLEEVE This part replaces 27371-38FA0.

27371-31GA0

$86.17

25

GEAR ASSY

27320-03GA0

$618.42

26

FORK, SHIFT

27941-03GA0

$98.98

27

ROD, SHIFT

27921-03GA0

Unavailable

28

SPRING, SHIFT

27402-03GA0

Unavailable

29

BRACKET, ROD

27911-03GA0

$46.80

30

GEAR, SHIFT

27931-03GA0

$68.13

31

SEAL This part replaces 27406-03GA0.

27406-03GA1

$2.83

32

SWITCH ASSY, 2WD

27425-03GA0

$126.22

33

SWITCH ASSY, 4WD

27425-03GB0

$126.22

34

DVC ASSY

27421-03GA0

$577.73

35

BRACKET SET, ACTUATOR This part replaces 27422-03GA0.

27420-03GA0

$15.40

36

BOLT (6X12)

27401-03GA0

Unavailable

37

SCREW (5X12)

27401-03GB0

Unavailable

38

CLIP

27403-03GA0

Unavailable

39

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$16.94

40

CLAMP

09401-08411

$1.77

41

PIPE, BREATHER

09364-08003

$3.42

42

WASHER, LEVEL PLUG

27407-38FD0

$2.80

43

PLUG, LEVEL

27409-38FC0

$6.03

44

BOLT, FRONT DIFFERENTIAL

09103-10148

$6.26

45

NUT, FRONT DIFFERENTIAL

08319-31107

$2.73

46

CLAMP (L:190)

09407-19401

$3.32
