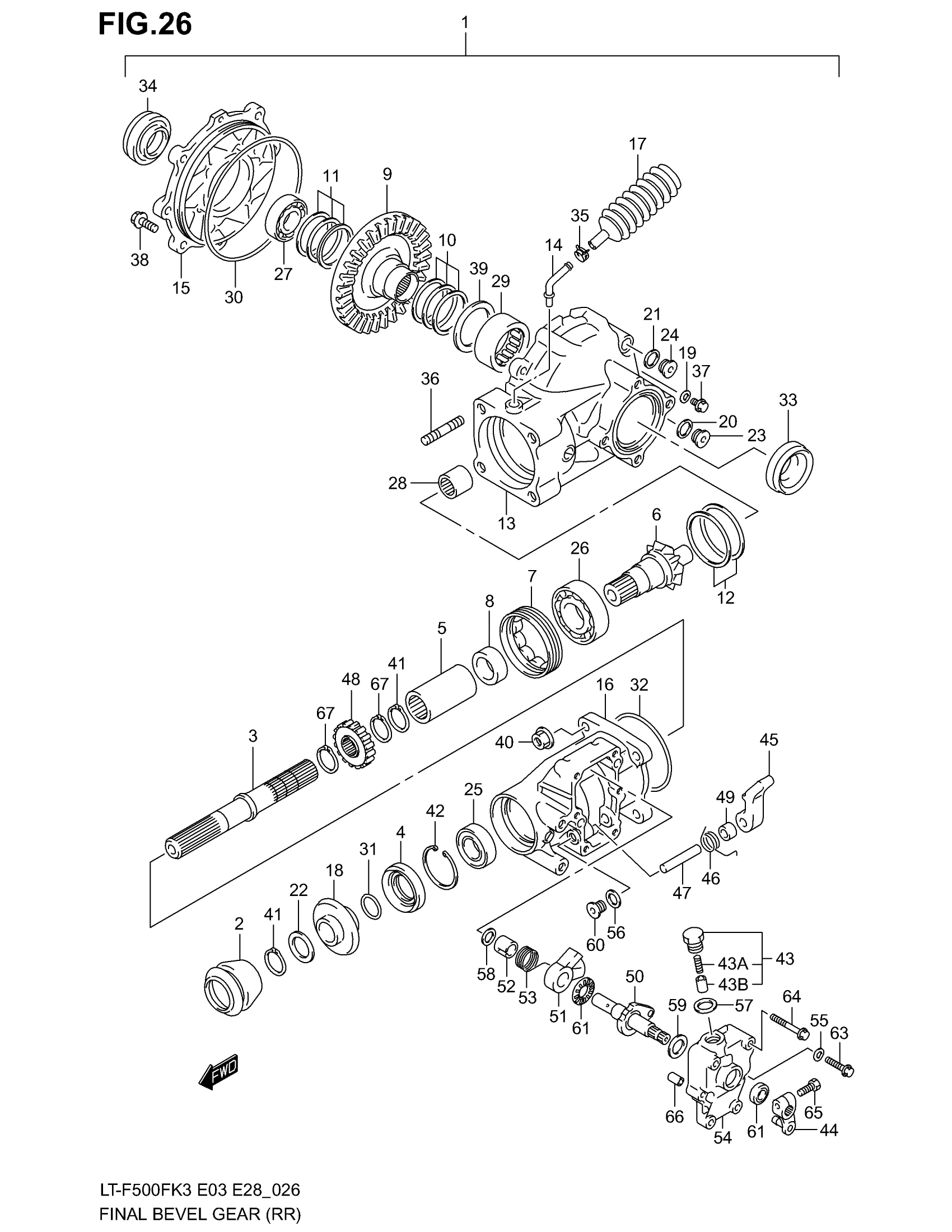

Suzuki LT-F500F (2003) FINAL BEVEL GEAR (REAR) Diagram

#

Description
Price

1

GEAR & CASE SET | Includes Item(s) 2 - 67 This part replaces 27300-38880.

27301-38830

Unavailable

2

BOOT, REAR FINAL DRIVE SHAFT

27153-03G10

$17.88

3

SHAFT, RR FINAL DRIVE This part replaces 27155-38F00.

27155-38FM0

$221.70

4

SEAL, FINAL DRIVE BEARING

27156-38F00

$19.68

5

JOINT, REAR FINAL DRIVE

27157-38F00

$19.06

6

GEAR, FINAL DRIVE BEVEL | NT:10

27311-38F10

Unavailable

7

.STOPPER,FINAL DRIVE BEARING

27312-38F00

$59.52

8

SPACER, REAR FINAL DRIVE

27316-38F00

Unavailable

9

GEAR, FINAL DRIVEN BEVEL | NT:36

27321-38F10

Unavailable

10

SHIM SET, FINAL DRIVEN LH | T:0.30/0.35/0.40/0.50/0.60

27326-09810

$17.23

11

SHIM SET, FINAL DRIVEN RH | T:0.30/0.35/0.40/0.50/0.60

27326-18810

$16.92

12

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.50/0.60

27445-24810

$31.82

13

CASE, REAR FINAL GEAR

27450-38F00

Unavailable

14

UNION, BREATHER

09364-08009

$10.33

15

CASE, REAR FINAL DRIVEN RH

27461-38F00

Unavailable

16

HOUSING, REAR FINAL DRIVE

27471-38F00

$304.83

17

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$16.94

18

COLLAR.OUTPUT OIL SEAL

27590-38F00

$70.33

19

GASKET, OIL CHECK BOLT | 6.2X13X1.2

09168-06018

$1.70

20

GASKET, OIL DRAIN | 16X22X2.0

09168-16002

$1.89

21

GASKET, OIL FILLER | 16X22X2.0

09168-16002

$1.89

22

WASHER, REAR FINAL DRIVE | 25X38X1.0

09181-25223

$2.90

23

PLUG, OIL DRAIN

09248-16012

$4.19

24

PLUG, OIL FILLER

09248-16012

$4.19

25

BEARING, REAR FINAL | 25X52X15

09262-25132

$57.70

26

BEARING, FINAL DRIVE GEAR | 28X68X18

09262-28014

$74.08

27

BEARING, FINAL DRIVEN RH | 45X75X16

09262-45012

$103.70

28

BEARING, FINAL DRIVE PILOT | 20X28X23

09263-20089

Unavailable

29

BEARING, FINAL DRIVEN LH | 40X50X15

09263-40012

$67.85

30

O RING, BEARING CASE RH | D:2.4,ID:15.7

09280-00036

$19.50

31

O RING, COLLAR OUTPUT | D:2.4,ID:23.7

09280-24010

$5.09

32

O RING, REAR FINAL HOUSING | D:3.1,ID:74.0

09280-76008

$9.52

33

OIL SEAL, FINAL DRIVEN LH | 38X54X6.0

09283-38009

$13.30

34

OIL SEAL, FINAL DRIVEN RH | 42X62X7.0

09283-42011

$11.53

35

CLAMP

09401-08411

$1.77

36

STUD BOLT (L:30) This part replaces 01421-10303.

01421-1030A

$2.59

37

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

38

BOLT This part replaces 01550-08253.

01550-0825A

$2.31

39

WASHER, FINAL DRIVEN LH

08211-40505

Unavailable

40

NUT This part replaces 08316-10103.

08316-1010B

$2.65

41

CIRCLIP

08331-31256

$1.09

42

CIRCLIP This part replaces 08331-41526.

08331-41529

$4.83

43

STOPPER, PARKING CAM

25350-09F50

$25.82

43A

SPRING

29613-44D00

$4.08

43B

STOPPER

25351-44D50

$14.27

44

ARM SELECT

25360-38F00

$64.25

45

PAWL, PARKING LOCK

25932-38F10

$63.09

46

SPRING, PARKING

25933-38F10

$5.65

47

SHAFT, PARKING PAWL

25934-38F10

$10.25

48

GEAR, PARKING LOCK (NT:24)

25935-38F10

Unavailable

49

SPACER, PARKING PAWL

25936-38F10

$6.75

50

SHAFT, PARKING LOCK CAM

25940-38F00

Unavailable

51

CAM, PARKING LOCK SHAFT

25942-38F00

$126.32

52

GUIDE, PARKING PAWL

25944-38F00

Unavailable

53

SPRING, PARKIG CAM

25984-38F00

Unavailable

54

COVER, REAR FINAL DOOR This part replaces 27475-38F00.

27475-38FM0

$232.80

55

GASKET, REAR FINAL COVER

09168-06024

$2.19

56

GASKET, PARKING PAWL

09168-10007

$1.71

57

GASKET, CAM SHAFT STOPPER

09168-14002

$2.83

58

WASHER, PARKING RH | 12X18X1.0

09181-12139

Unavailable

59

WASHER, PARKING LH | 14X24X1.0

09181-14195

$3.30

60

PLUG, PARKING PAWL

09248-10007

$7.07

61

BEARING, PARKING CAM | 15X28X2

09263-15003

$7.49

62

SEAL, PARKING | 14X22X6

09283-14006

$6.04

63

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

64

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

65

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

66

PIN, REAR FINAL COVER

04211-09149

$1.64

67

CIRCLIP, PARKING LOCK GEAR

08331-31256

$1.09
