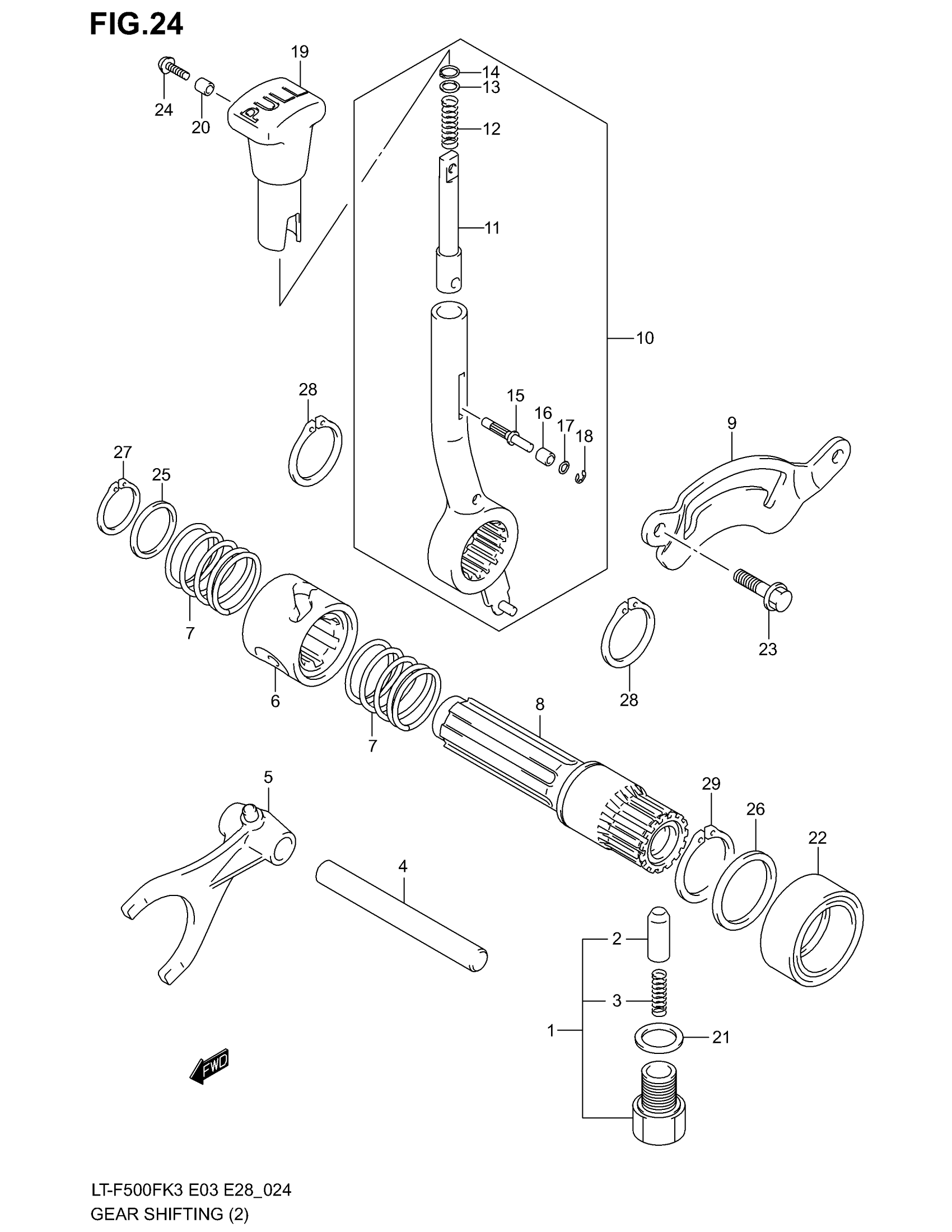

Suzuki LT-F500F (2003) GEAR SHIFTING (2) Diagram

#

Description
Price

1

STOPPER, SUB T/M SHIFT CAM | Includes Item(s) 2 - 3

25350-38F50

$31.43

2

STOPPER

25351-38F50

$14.22

3

SPRING

29613-38F50

$3.17

4

SHAFT, GR FORK

25411-14331

$26.03

5

FORK, GR SHIFT

29511-44D00

$101.83

6

CAM, GR SHIFT

29611-44D50

Unavailable

7

SPRING

29612-44D10

Unavailable

8

SHAFT, GR SHIFT

29621-44D60

Unavailable

9

PLATE, LEVER STOP

29711-44D00

Unavailable

10

LEVER ASSY, SHIFT | Includes Item(s) 11 - 18

29800-03G50

Unavailable

11

ROD, SUB T/M

29841-44D00

$30.18

12

SPRING

29822-44D10

$6.50

13

WASHER

08211-08121

$2.00

14

CIRCLIP

09381-12003

$1.95

15

PIN

29831-44D00

$7.57

16

ROLLER

29851-44D00

$4.08

17

WASHER This part replaces 08322-01043.

08322-0104A

$1.92

18

E RING This part replaces 08332-11033.

08332-1103A

$2.35

19

KNOB

29911-44D00

$18.23

20

SPACER, SUB T/M GEAR

09180-04012

$4.00

21

GASKET, CAM STOP | 13.8X18.8X0.4

09168-14002

$2.83

22

OIL SEAL, SHIFT STOP | 30X56X6

09283-30044

$16.20

23

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

24

SCREW This part replaces 02112-34163.

02112-3416B

$2.21

25

WASHER, CAM STOP | 25X32X1.0

09181-25139

$2.80

26

WASHER, SHAFT, LH | 30X38X1.0

09181-30139

$4.62

27

CIRCLIP, CAM SPRING

08331-31256

$1.09

28

CIRCLIP This part replaces 08331-31296.

08331-31299

$2.77

29

CIRCLIP This part replaces 08331-31306.

08331-31309

$2.59
