2002 Suzuki LT-F500F Radiator Hose Diagram

← All diagrams

Find the part on the Radiator Hose diagram for your 2002 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

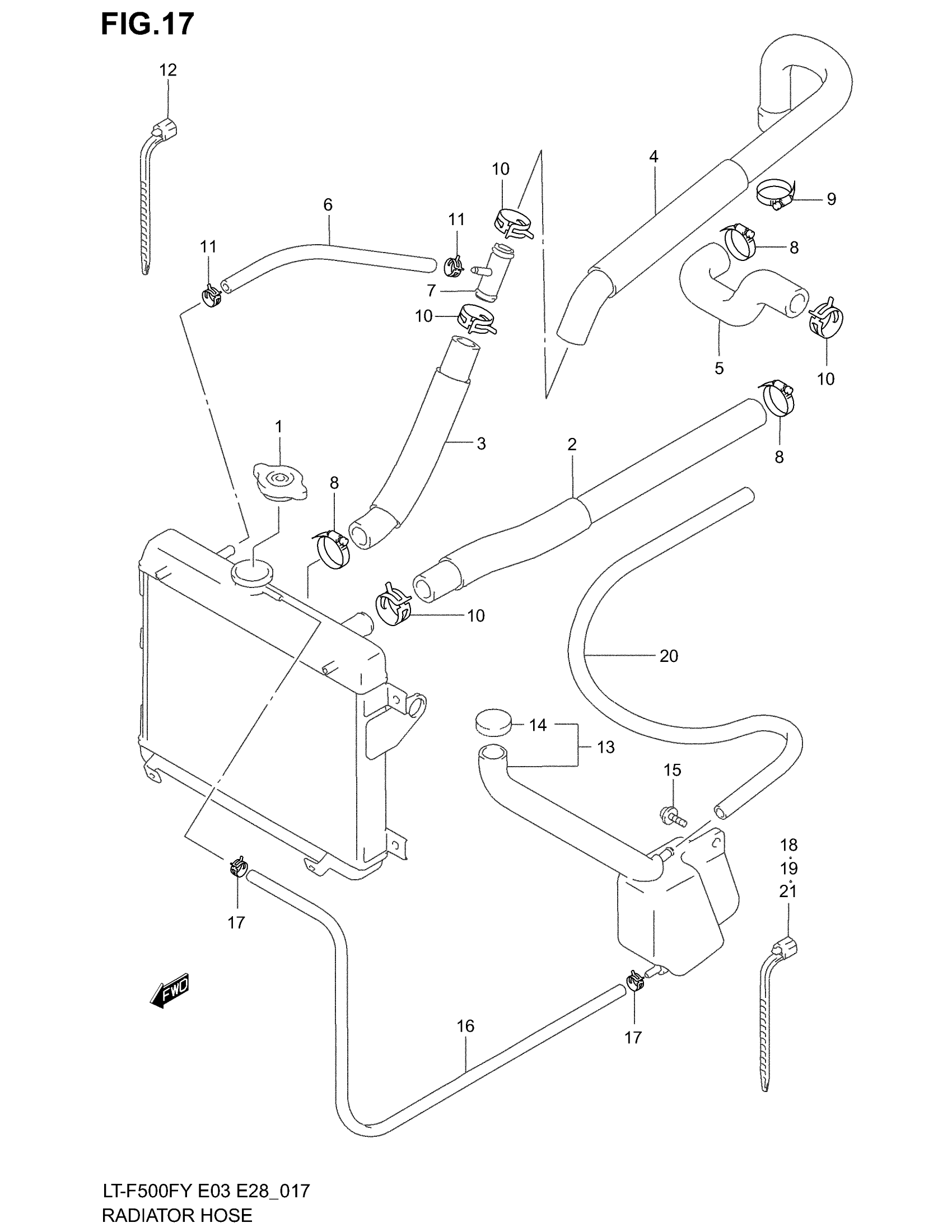

2002 Suzuki LT-F500F Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

HOSE, RADIATOR INLET

17851-09F00

1
Out of stock

3

HOSE, RADIATOR OUTLET

17852-09F00

1
Out of stock

4

HOSE, WATER PUMP INLET

17853-09F00

1
Out of stock

5

HOSE, WATER PUMP OUTLET

17854-09F00

1
Out of stock

6

1

$25.87

In stock

7

PIPE, WATER HOSE JOINT

17890-17E01

1
Out of stock

8

CLAMP

09402-32511

3

$10.72

In stock

9

CLAMP

09402-38511

1

$11.46

In stock

10

4

$5.02

In stock

11

CLIP This part replaces 09401-12409.

09401-12414

2
Out of stock

12

CLAMP

09407-25401

1
Out of stock

13

TANK ASSY, RESERVOIR | Includes Item(s) 14

17910-09F00

1
Out of stock

14

CAP, RESERVOIR TANK

17932-12C00

1

$4.46

In stock

15

SCREW

09136-06017

2

$2.77

In stock

16

HOSE, INLET | L:600->400

17981-09F00

1
Out of stock

17

CLIP

09401-08411

2
Out of stock

18

CLAMP, NO.1

09407-14403

1
Out of stock

19

CLAMP, NO.2

09407-18402

1
Out of stock

20

HOSE, OVERFLOW | L:600->500

17982-09F00

1
Out of stock

21

CLAMP, INLET HOSE

09407-14403

1
Out of stock
