2002 Suzuki LT-F500F Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 2002 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

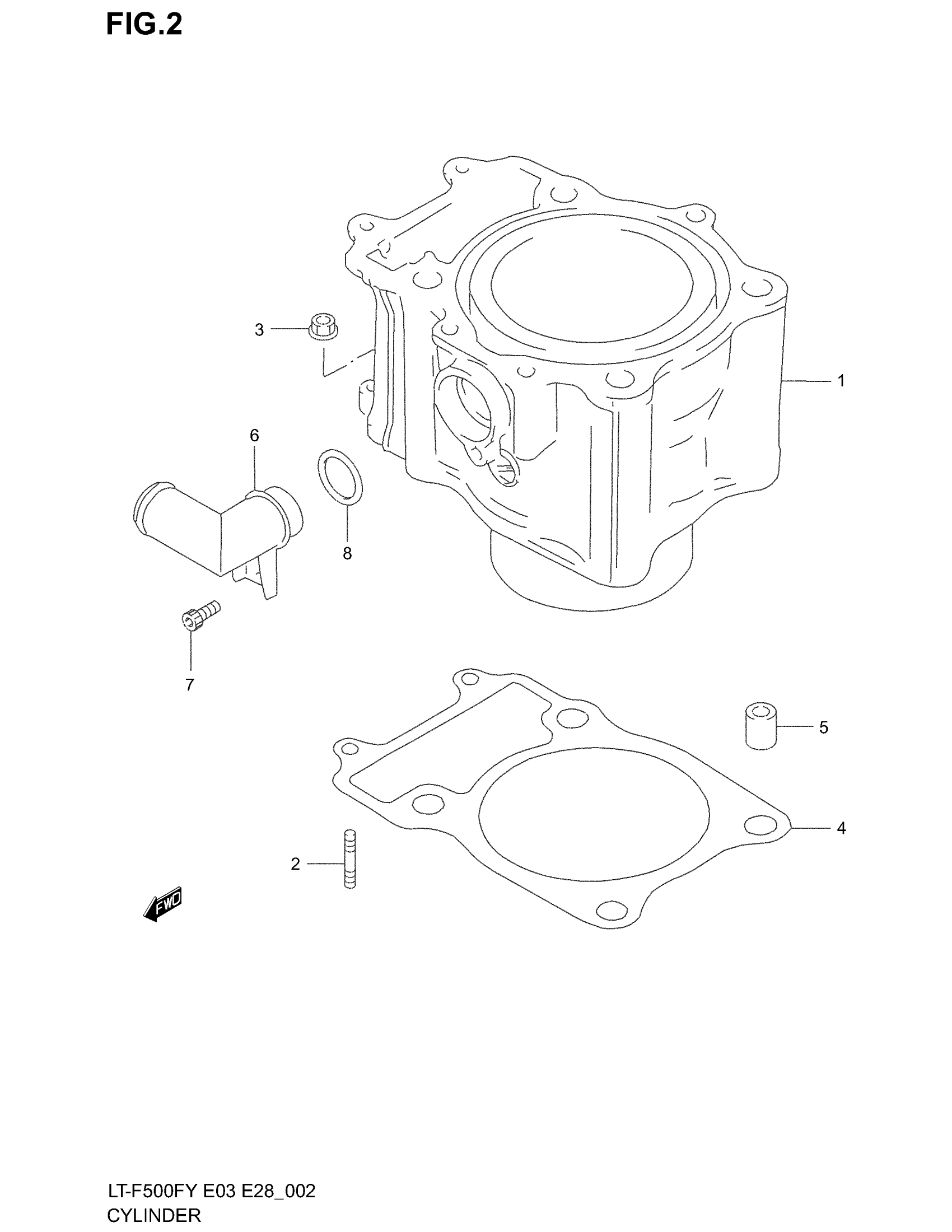

2002 Suzuki LT-F500F Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER | MODEL W/X/Y

11211-09F00-0F0

1
Out of stock

1

CYLINDER | MODEL K1/K2

11211-09F10-0F0

1
Out of stock

2

STUD BOLT | MODEL W/X This part replaces 01421-06208.

01421-0620A

2
Out of stock

2

STUD BOLT | MODEL Y/K1/K2 This part replaces 01421-06203.

01421-0620A

2
Out of stock

3

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

4

GASKET, CYLINDER

11241-09F00

1
Out of stock

5

PIN

04211-13189

2
Out of stock

6

UNION, WATER HOSE

17857-44D00

1
Out of stock

7

BOLT This part replaces 07130-06123.

07130-0612A

1
Out of stock

8

O RING (D:2.7,ID:21.4)

09280-21015

1
Out of stock
