2002 Suzuki LT-F500F Crank Balancer Diagram

← All diagrams

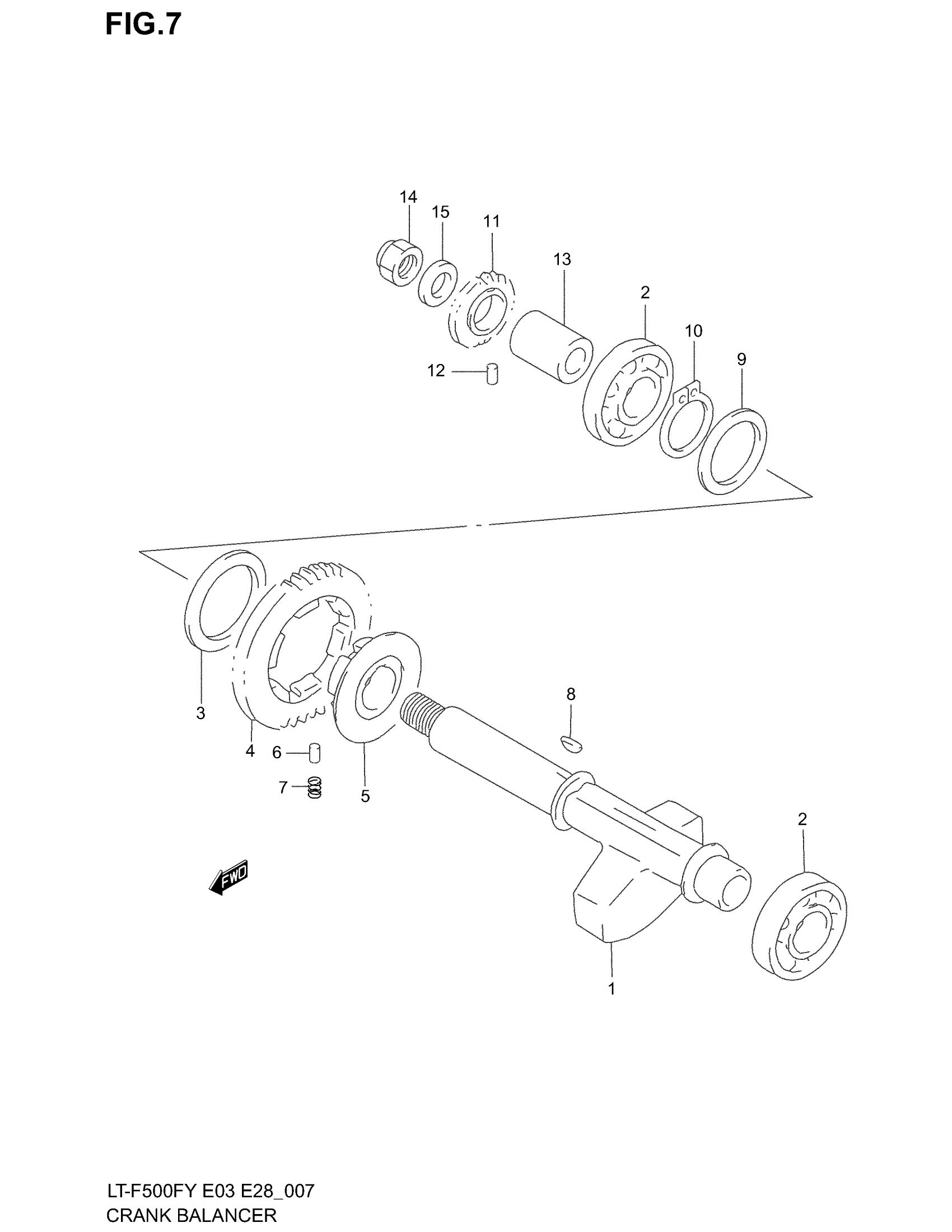

Find the part on the Crank Balancer diagram for your 2002 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-F500F Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER, CRANK

12651-09F00

1
Out of stock

2

BEARING (22X56X16)

09262-22029

2
Out of stock

3

WASHER (38X50X1)

09164-38003

1
Out of stock

4

GEAR, DRIVEN

12666-09F00

1
Out of stock

5

RACE, DRIVEN GEAR INNER

12669-32E00

1
Out of stock

6

PIN

09202-04017

3
Out of stock

7

SPRING

09440-09031

6
Out of stock

8

KEY

09420-04008

1
Out of stock

9

WASHER

08211-38582

1
Out of stock

10

CLIP

08331-31383

1
Out of stock

11

GEAR, WATER PUMP DRIVE | ~F.NO.W2102502 This part replaces 16321-44D00.

16321-44D01

1
Out of stock

11

GEAR, OIL PUMP DRIVE (NT:20) | F.NO.W2102503~

16321-44D01

1
Out of stock

12

PIN (4X13.8)

04221-04089

1
Out of stock

13

SPACER

16322-44D00

1
Out of stock

14

NUT

09159-16003

1
Out of stock

15

WASHER

09160-16029

1

$6.90

In stock
