2002 Suzuki LT-F500F Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2002 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

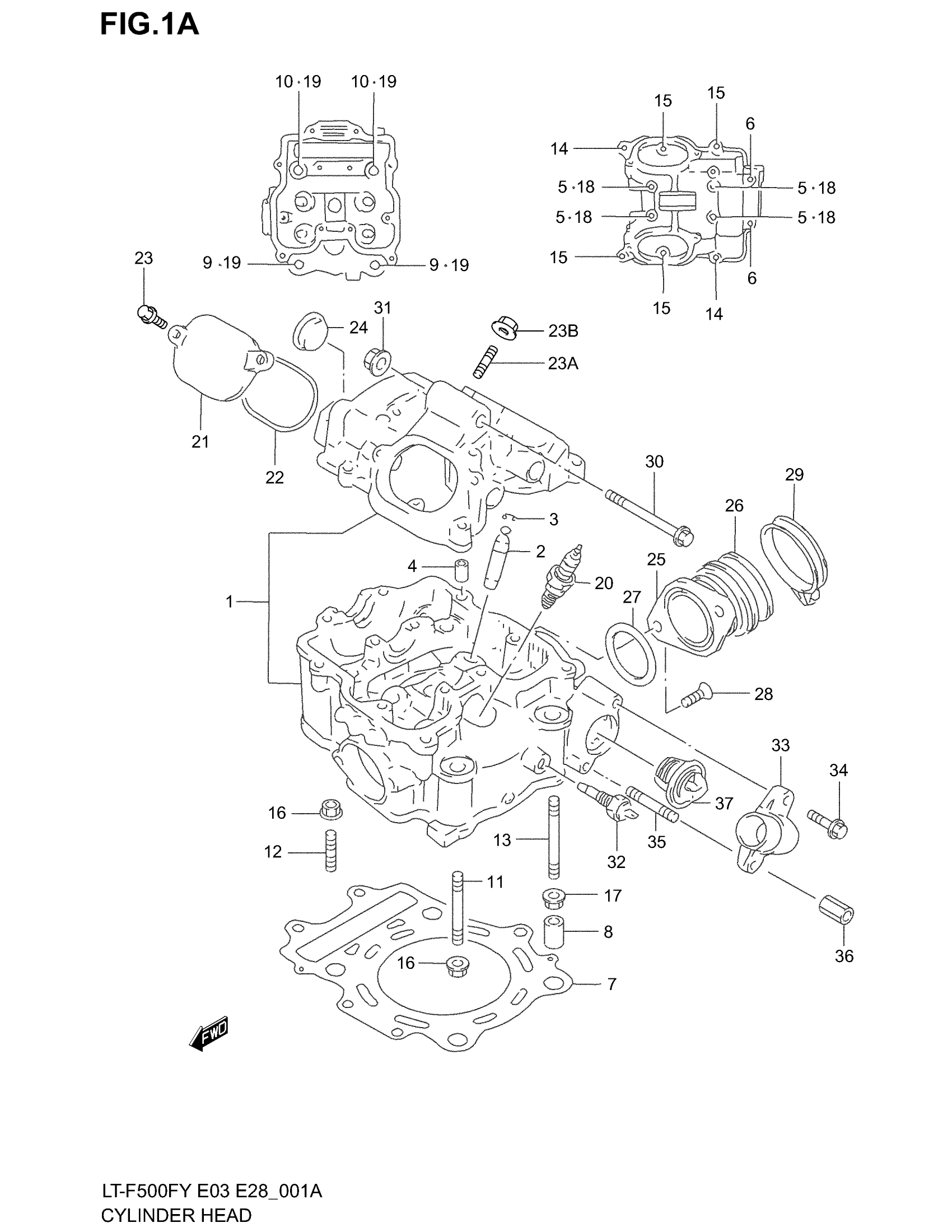

2002 Suzuki LT-F500F Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER | MODEL W/X/Y

11100-09F00

1
Out of stock

1

HEAD ASSY, CYLINDER | MODEL K1/K2; Includes Item(s) 2 - 6

11100-44D00

1
Out of stock

2

GUIDE,VALVE (OS:0.3)

11115-14D71

4
Out of stock

3

.RING (10X85)

09381-10004

4
Out of stock

4

PIN

09206-08001

2
Out of stock

5

BOLT (6X55)

09103-06102

4
Out of stock

6

BOLT This part replaces 01550-06303.

01550-0630A

2
Out of stock

7

GASKET, CYLINDER HEAD

11141-09F00

1

$37.33

In stock

8

PIN

04211-13189

2
Out of stock

9

BOLT (10X190)

09103-10179

2

$15.12

In stock

10

BOLT (L:200)

09103-10180

2

$15.12

In stock

11

STUD BOLT This part replaces 01421-06253.

01421-0625A

2
Out of stock

12

2

$3.23

In stock

13

1

$3.33

In stock

14

BOLT (6X35)

09103-06108

2
Out of stock

15

BOLT This part replaces 01550-06253.

01550-0625A

4
Out of stock

16

NUT This part replaces 08316-10063.

08316-1006B

4
Out of stock

17

1

$2.85

In stock

18

GASKET

09168-06023

4
Out of stock

19

GASKET

09168-10017

4

$2.94

In stock

20

1

$6.17

In stock

20

1

$5.91

In stock

20

1

$6.17

In stock

20

1

$7.93

In stock

20

1

$6.17

In stock

20

1

$5.91

In stock

20

1

$6.43

In stock

20

1

$6.03

In stock

21

CAP,INSPECTION

11175-47D00

2
Out of stock

22

.O RING,INSPECTION CAP

11177-14D01

2
Out of stock

23

BOLT | ~F.NO.X2107367 This part replaces 01550-06203.

01550-0620A

4
Out of stock

23

BOLT | F.NO.X2107368~ This part replaces 01550-06203.

01550-0620A

3
Out of stock

23A

1

$4.43

In stock

23B

NUT | F.NO.X2107368~ This part replaces 08316-10063.

08316-1006B

1
Out of stock

24

PLUG, HEAD

09241-25007

1
Out of stock

25

PIPE, INTAKE NO.1

13111-09F00

1

$55.07

In stock

26

1

$19.32

In stock

28

SCREW

09119-06092

2

$2.87

In stock

29

CLAMP | MODEL W/X/Y

09402-50208

1

$4.64

In stock

29

CLAMP | MODEL K1/K2

09402-52208

1
Out of stock

30

BOLT (8X60) This part replaces 09103-08345.

09103-08217

1
Out of stock

31

NUT

08319-31087

1

$2.48

In stock

33

COVER, THERMOSTAT

17661-44D00

1

$50.20

In stock

34

BOLT This part replaces 01550-06203.

01550-0620A

1
Out of stock

35

1

$2.05

In stock

36

NUT, LOWER

09159-06030

1
Out of stock

37

1

$49.43

In stock
