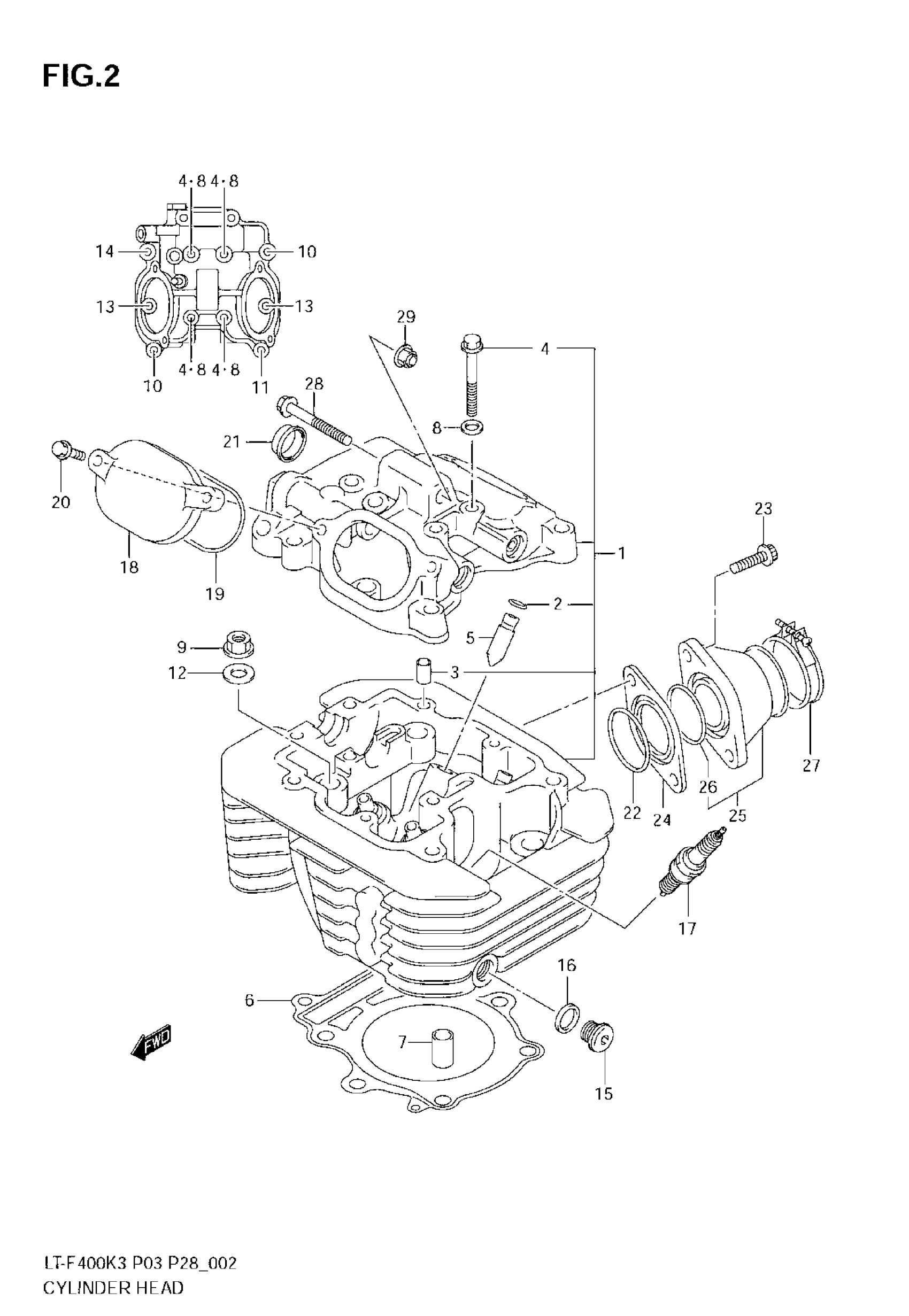

Suzuki LT-F400 (2007) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 4 This part replaces 11100-38F00.

11100-27H00

$1,332.97

2

.RING (10X85)

09381-10004

$1.35

3

PIN

09206-08001

$1.77

4

BOLT (6X55)

09103-06102

$1.68

5

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

$44.28

6

GASKET, CYLINDER HEAD

11141-38F00

$32.73

7

PIN

09206-13004

$2.44

8

GASKET

09168-06023

$2.01

9

NUT This part replaces 08316-10083.

08316-1008B

$2.65

10

BOLT, HEAD COVER (L:35)

09103-06108

$2.32

11

BOLT, HEAD COVER (L:40)

09103-06504

$2.21

12

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.24

13

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

14

BOLT This part replaces 01550-06303.

01550-0630A

$2.31

15

PLUG, OIL GALLERY

09248-12004

$8.63

16

GASKET, OIL GALLERY PLUG

09168-12002

$1.59

17

SPARK PLUG (NGK,CR7E)

09482-00516

$5.75

17

SPARK PLUG (DENSO,U22ESR-N)

09482-00515

$5.46

17

SPARK PLUG (NGK,CR6E) | OPT

09482-00528

$5.75

17

SPARK PLUG (DENSO U20ESR-N) | OPT

09482-00529

$5.67

17

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$5.99

17

SPARK PLUG (DENSO U24ESR-N) | OPT

09482-00457

$5.58

18

CAP,INSPECTION

11175-47D00

$27.22

19

.O RING,INSPECTION CAP

11177-14D01

$4.21

20

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

21

PLUG, HEAD

09241-25007

$5.58

22

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.80

23

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

$2.50

24

INSULATOR, INTAKE PIPE This part replaces 13117-38F00.

13117-38F01

$8.70

25

PIPE ASSY,INTAK | Includes Item(s) 26 This part replaces 13101-38F00.

13101-38F01

$34.43

26

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.80

27

CLAMP

09402-48208

$4.19

28

BOLT (8X60) This part replaces 09103-08345.

09103-08217

$4.03

29

NUT This part replaces 08319-31088.

08319-3108A

$2.31
