2007 Suzuki LT-F400 CAM Chain Diagram

← All diagrams

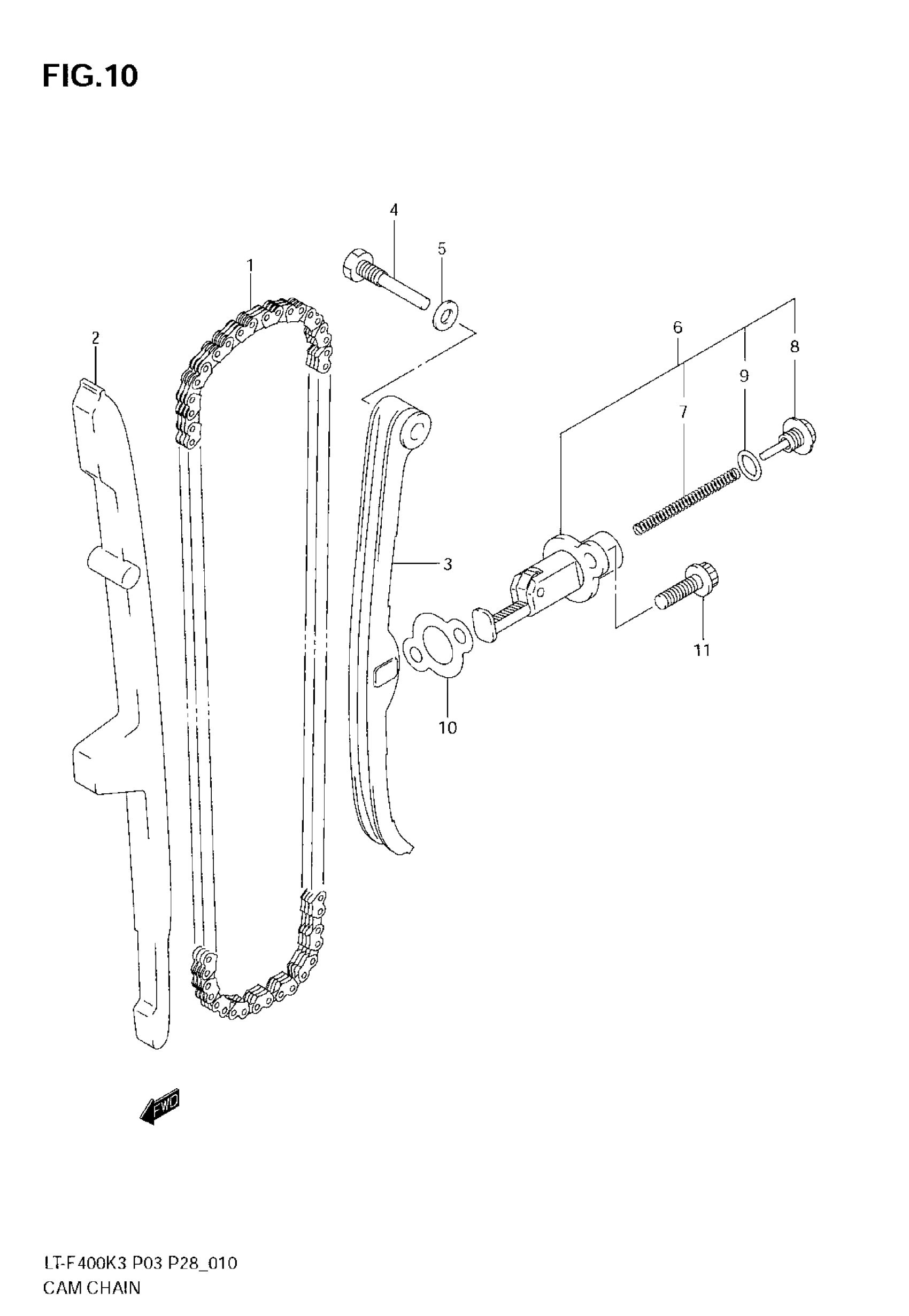

Find the part on the CAM Chain diagram for your 2007 Suzuki LT-F400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-F400 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM (108LE)

12760-19B71

1
Out of stock

2

GUIDE,CAM CHAIN This part replaces 12771-14D10.

12771-14D11

1
Out of stock

3

TENSIONER,CAM CHAIN This part replaces 12811-14D10.

12811-14D11

1
Out of stock

4

BOLT

12812-32410

1
Out of stock

5

GASKET (8.2X14X1)

09168-08016

1
Out of stock

6

ADJUSTER ASSY, TENSIONER | Includes Item(s) 7 - 9

12830-29B11

1
Out of stock

7

SPRING

12833-29B00

1
Out of stock

8

PLUG

12834-26B00

1
Out of stock

9

O RING

12832-02A00

1
Out of stock

10

.GASKET,TENSIONER ADJUSTER | MODEL K3

12837-19B10

1
Out of stock

10

.GASKET,TENSIONER ADJUSTER | MODEL K4/K5/K6/K7 This part replaces 12837-14D00.

12837-19B10

1
Out of stock

11

BOLT, FRONT This part replaces 07120-06203.

07120-0620B

2
Out of stock
