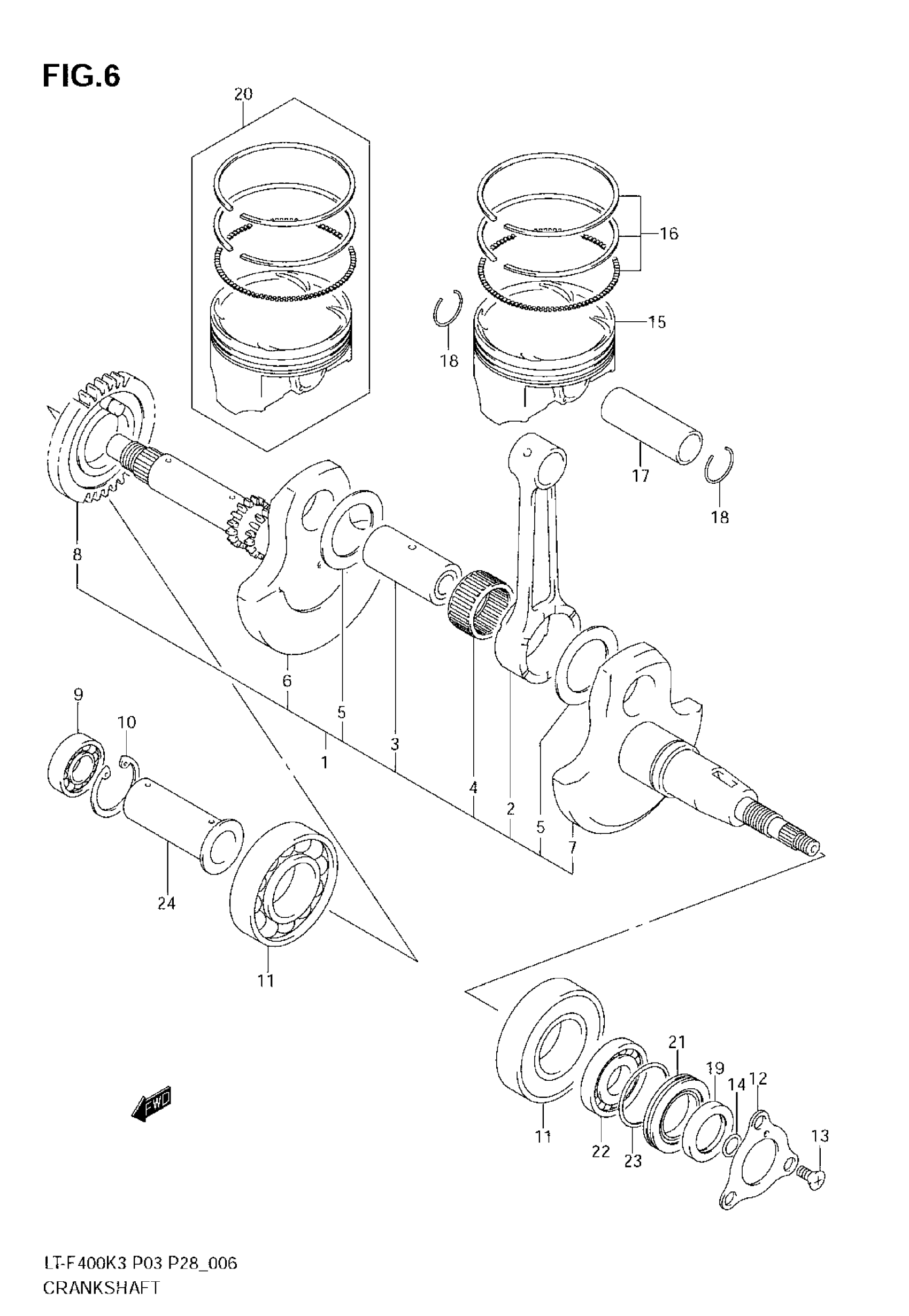

Find the part on the Crankshaft diagram for your 2007 Suzuki LT-F400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-F400 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT SET | %F.NO.5SAAK45A3X102000

12200-38851

1
Out of stock

1

CRANKSHAFT SET | F.NO.5SAAK45A3X102001%; Includes Item(s) 2 - 8

12200-38861

1
Out of stock

2

ROD, CONNECTING

12161-14D00

1
Out of stock

3

PIN, CRANK

12210-14D03

1
Out of stock

4

BEARING (34X43X22)

09263-34005

1
Out of stock

5

WASHER

09160-34003

2
Out of stock

6

CRANKSHAFT SET, RH | %F.NO.5SAAK45A3X102000

12220-38851

1
Out of stock

6

CRANKSHAFT SET, RH | F.NO.5SAAK45A3X102001%

12220-38F61

1
Out of stock

7

.CRANKSHAFT, LH | %F.NO.5SAAK45A3X102000 This part replaces 12261-38F51.

12261-38F60

1
Out of stock

7

CRANKSHAFT, LH | F.NO.5SAAK45A3X102001%

12261-38F60

1
Out of stock

8

GEAR, CRANK BALANCER DRIVE

12661-38F01

1
Out of stock

9

BEARING, RH (15X35X11)

09262-15014

1
Out of stock

10

CIRCLIP This part replaces 08331-41356.

08331-41359

1
Out of stock

11

BEARING

09262-35038

2
Out of stock

12

RETAINER, CRANKSHAFT OIL SEAL LH

12541-46510

1
Out of stock

13

SCREW, RETAINER LH

09126-06011

3
Out of stock

14

O RING (D:1.9,ID:12.6)

09280-12009

1
Out of stock

15

PISTON

12111-38F21-0F0

1
Out of stock

16

RING SET, PISTON (STD)

12140-38F10

1
Out of stock

17

PIN,PISTON

12151-24A00

1
Out of stock

18

CIRCLIP

09381-20004

2
Out of stock

19

OIL SEAL (25X36X6)

09283-25094

1
Out of stock

20

PISTON SET,OS0.5 (OS:0.5) | OPT

12100-38F21-050

1
Out of stock

21

SPACER, RECOIL STARTER CUP BRG

12359-44D20

1
Out of stock

22

BEARING, RECOIL STARTER CUP

09262-25006

1
Out of stock

23

O RING

09280-44007

1
Out of stock

24

SPACER,CRANKSHAFT,R

12222-38F50

1
Out of stock
