2007 Suzuki LT-F400 Cooling FAN Diagram

← All diagrams

Find the part on the Cooling FAN diagram for your 2007 Suzuki LT-F400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

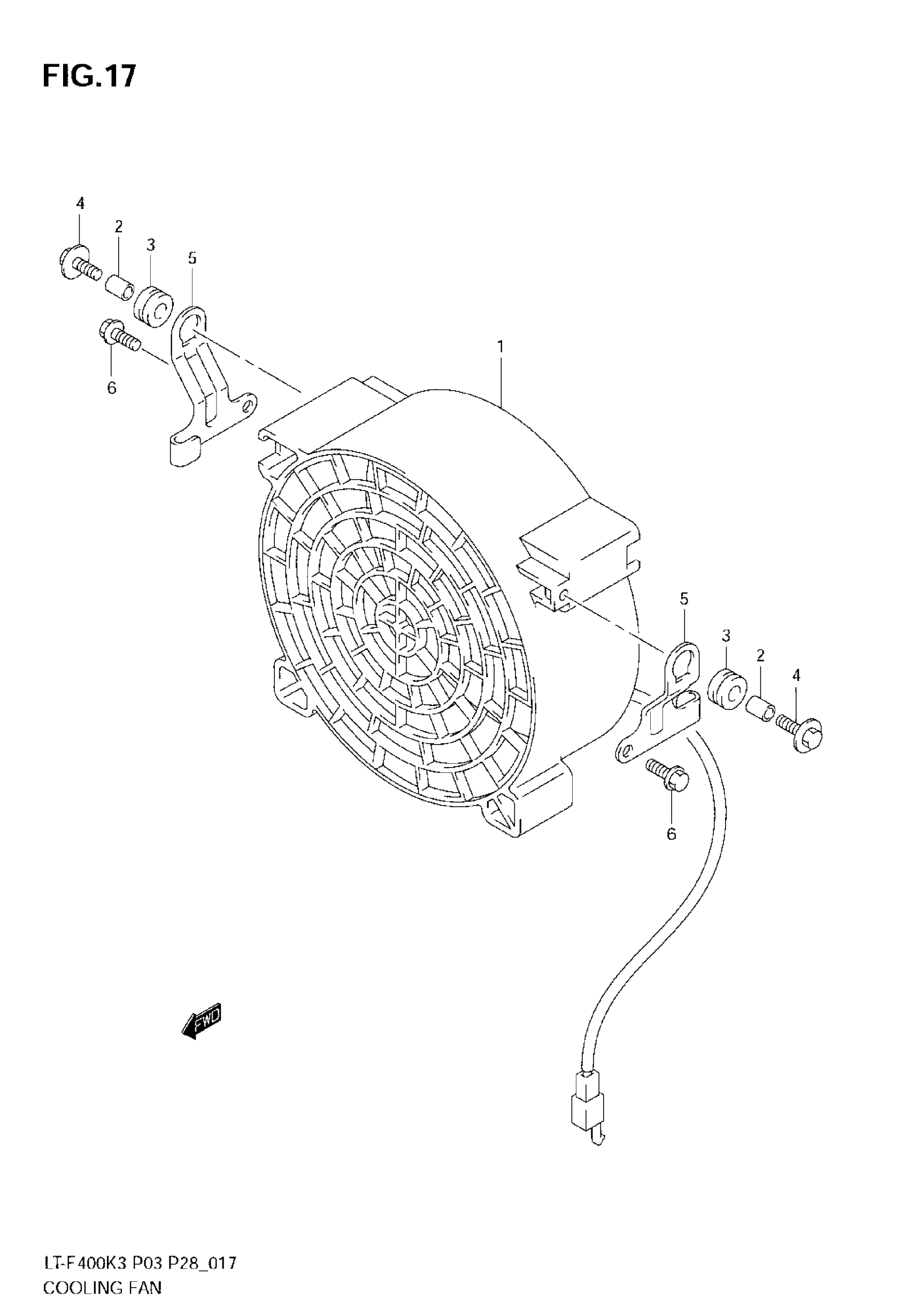

2007 Suzuki LT-F400 Cooling FAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FAN ASSY,COOLING This part replaces 17800-38F00.

17800-27H11

1
Out of stock

2

SPACER, COOLING FAN

09180-06310

2
Out of stock

3

CUSHION, COOLING FAN

09320-10015

4
Out of stock

4

BOLT, COOLING FAN

09116-06212

2
Out of stock

5

BRACKET,COOLING FA

17810-38F00

2
Out of stock

6

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

2
Out of stock
