2002 Suzuki LT-F300F Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2002 Suzuki LT-F300F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

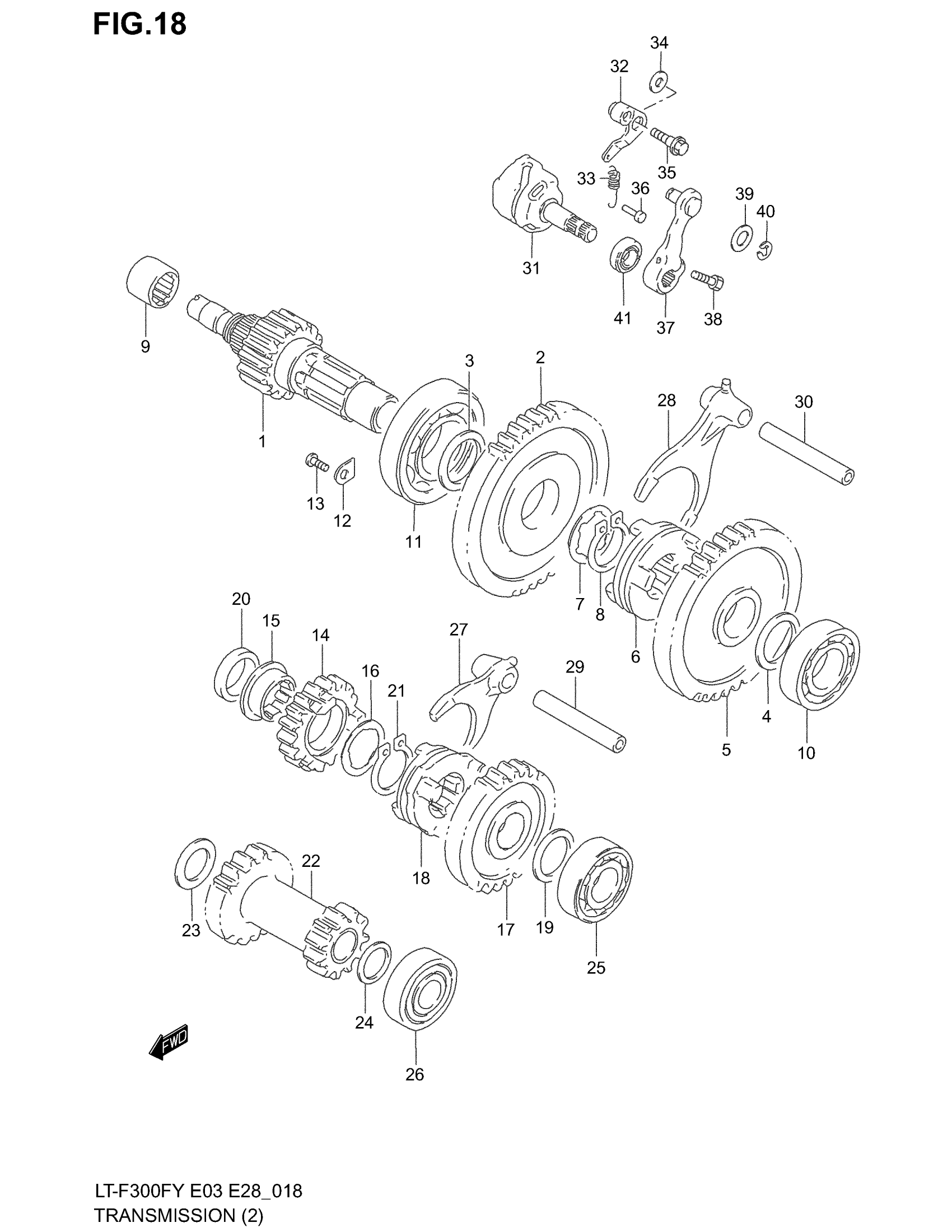

2002 Suzuki LT-F300F Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, SUB TRANSMISSION | MODEL X

29121-19B10

1
Out of stock

1

SHAFT, SUB TRANSMISSION | MODEL Y/K1/K2 This part replaces 29121-19B01.

29121-19B10

1
Out of stock

2

GEAR, DRIVEN NO.1 (NT:43)

29311-19B01

1
Out of stock

3

WASHER, RH

08211-32441

1
Out of stock

4

WASHER

08211-25351

1

$4.03

In stock

5

GEAR, DRIVEN NO.2 (NT:37)

29320-19B00

1
Out of stock

6

DOG, DRIVEN GEAR

29331-19B00

1
Out of stock

7

WASHER (32.1X42X1.0)

09167-32002

1
Out of stock

8

CIRCLIP This part replaces 08331-31326.

08331-3132A

1
Out of stock

9

BEARING, RH (18X26X16)

09263-18023

1
Out of stock

10

BEARING, LH (25X52X15)

09262-25003

1
Out of stock

11

BEARING (35X72X17) This part replaces 09262-35039.

09262-35038

1
Out of stock

12

RETAINER

24741-21A00

2
Out of stock

13

SCREW This part replaces 02112-06123.

02112-0612A

4
Out of stock

14

GEAR, DRIVE NO.1 (NT:18) | MODEL X/Y This part replaces 29211-19B00.

29211-19B01

1
Out of stock

14

GEAR, DRIVE NO.1 (NT:18) | MODEL K1/K2

29211-19B01

1
Out of stock

15

BUSH

29215-19B01

1
Out of stock

16

WASHER (25.5X35X1.0)

09167-25016

1
Out of stock

17

GEAR, DRIVE NO.2 (NT:25)

29220-19B00

1
Out of stock

18

DOG, DRIVE GEAR

29231-19B00

1
Out of stock

19

WASHER (20X30X1.0)

09181-20195

1
Out of stock

20

SPACER (25X34X5.5)

09180-25083

1
Out of stock

21

SNAP RING

09380-25003

1
Out of stock

22

GEAR, IDLE (NT:17/11) | MODEL X This part replaces 29150-19B02.

29150-19B10

1
Out of stock

22

GEAR, IDLE (NT:17/11) | MODEL Y/K1/K2

29150-19B10

1
Out of stock

23

WASHER (17X24X4.5)

09180-17076

1
Out of stock

24

WASHER (15X26X1.0)

09181-15195

1
Out of stock

25

BEARING, DRIVE LH (20X47X14)

09262-20069

1
Out of stock

26

BEARING This part replaces 09262-15022.

09262-15062

1
Out of stock

27

FORK, NO.1

29511-19B00

1
Out of stock

28

FORK, NO.2

29521-19B00

1
Out of stock

29

SHAFT, NO.1 | MODEL X This part replaces 25421-35403.

25421-35410

1
Out of stock

29

SHAFT, NO.1 | MODEL Y/K1/K2

25421-35410

1
Out of stock

30

SHAFT, NO.2

25421-04702

1
Out of stock

31

CAM, SUB TRANSMISSION GEAR

29610-19B10

1
Out of stock

32

STOPPER

29630-19B00

1
Out of stock

33

SPRING

09443-09042

1
Out of stock

34

WASHER

08211-06141

1
Out of stock

35

BOLT (6X14.6) | MODEL X/Y/K1

09111-06054

1
Out of stock

35

BOLT (6X14.6) | MODEL K2

09111-06073

1
Out of stock

36

PIN

09223-04001

1
Out of stock

37

ARM

25360-19B70

1
Out of stock

38

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock

39

WASHER This part replaces 08322-01083.

08322-0108A

1
Out of stock

40

CIRCLIP This part replaces 08332-11063.

08332-1106A

1
Out of stock

41

OIL SEAL (12X22X9)

09285-12006

1
Out of stock
