2002 Suzuki LT-F300F Differential Gear Diagram

← All diagrams

Find the part on the Differential Gear diagram for your 2002 Suzuki LT-F300F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

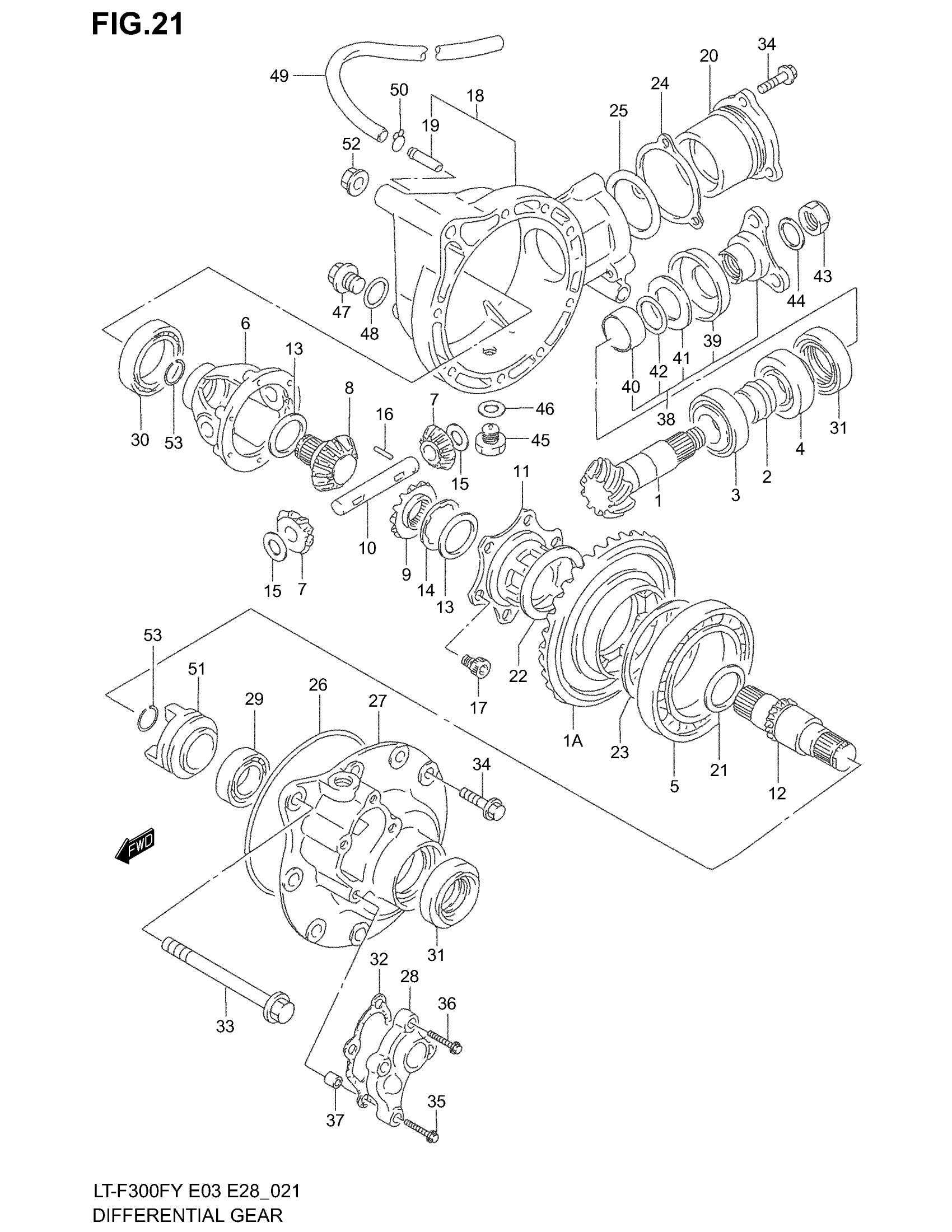

2002 Suzuki LT-F300F Differential Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, FRONT DRIVE BEVEL | NT:11

27311-19B10

1
Out of stock

1A

GEAR, FRONT DRIVEN BEVEL | NT:34

27321-19B11

1
Out of stock

2

SPACER (25.3X28X28)

09180-25085

1

$34.43

In stock

3

1

$62.62

In stock

4

1

$66.08

In stock

5

BEARING (70X110X13)

09262-70001

1

$153.17

In stock

6

CASE, DIFFERENTIAL

27411-19B00

1

$214.32

In stock

7

PINION, DIFFERENTIAL SIDE | NT:10

27331-65000

2
Out of stock

8

GEAR, RH (NT:13)

27341-19B10

1
Out of stock

9

GEAR, LH (NT:13)

27341-84212

1
Out of stock

10

SHAFT, PINION

27351-51005

1
Out of stock

11

HUB

27322-19B11

1
Out of stock

12

SHAFT,FR DRIVEN This part replaces 27361-19B10.

27361-19B20

1
Out of stock

13

WASHER (T:0.8)

09160-29011

2
Out of stock

13

WASHER (T:1.0)

09160-29012

2
Out of stock

13

WASHER (T:1.2)

09160-29013

2
Out of stock

14

WASHER

09164-29003

1
Out of stock

15

WASHER (13.3X25X0.85)

09160-13003

2
Out of stock

16

PIN, PINION SHAFT

09202-06022

1
Out of stock

17

6

$3.13

In stock

18

HOUSING, DIFFERENTIAL GEAR | Includes Item(s) 19

27450-19B13

1
Out of stock

19

UNION, BREATHER

09364-08003

1
Out of stock

20

1

$125.27

In stock

21

WASHER

08211-25351

1

$4.03

In stock

22

1

$36.22

In stock

23

1

$43.40

In stock

24

1

$29.07

In stock

25

1

$6.07

In stock

26

1

$14.00

In stock

27

CASE, DRIVEN GEAR BEARING

27461-19B10

1
Out of stock

28

COVER

27471-19B01

1

$68.80

In stock

29

BEARING, LH

08113-60050

1
Out of stock

30

1

$72.10

In stock

31

OIL SEAL (34X52X9.0)

09283-34008

3
Out of stock

32

GASKET, CASE COVER

27473-19B11

1

$4.43

In stock

33

BOLT (L:110)

09103-10148

2
Out of stock

34

BOLT This part replaces 01550-08253.

01550-0825A

11
Out of stock

35

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

2
Out of stock

36

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

2
Out of stock

37

PIN

04211-09109

2
Out of stock

38

FLANGE, DRIVE BEVEL GEAR | Includes Item(s) 39 - 42

27180-19B10

1
Out of stock

39

PLATE

09165-30002

1

$7.20

In stock

40

COLLAR

27591-19B01

1

$25.08

In stock

41

PLATE, OIL SEAL

27592-19B00

1

$7.92

In stock

42

O RING (D:1.0,ID:28)

09280-28007

1

$2.57

In stock

43

NUT

09159-16004

1

$4.20

In stock

44

WASHER (16X30X3)

09160-16026

1
Out of stock

45

PLUG (MAGNETO) | MODEL X/Y/K1 This part replaces 09247-14001.

09247-14002

1
Out of stock

45

PLUG (MAGNETO) | MODEL K2

09247-14002

1
Out of stock

46

GASKET

09168-14002

1
Out of stock

47

PLUG, FILLER

09247-16004

1
Out of stock

48

O RING (D:2.4,ID:16.8)

09280-17002

1
Out of stock

49

HOSE(7X10.2X200 | L:2000!1140 This part replaces 09352-70103-00B.

09352-70104-00B

1
Out of stock

50

CLIP

09401-10403

1
Out of stock

51

DOG

27371-19B01

1
Out of stock

52

NUT This part replaces 08319-31103.

08319-3110A

2
Out of stock

53

CIRCLIP

09381-22007

2

$2.53

In stock
