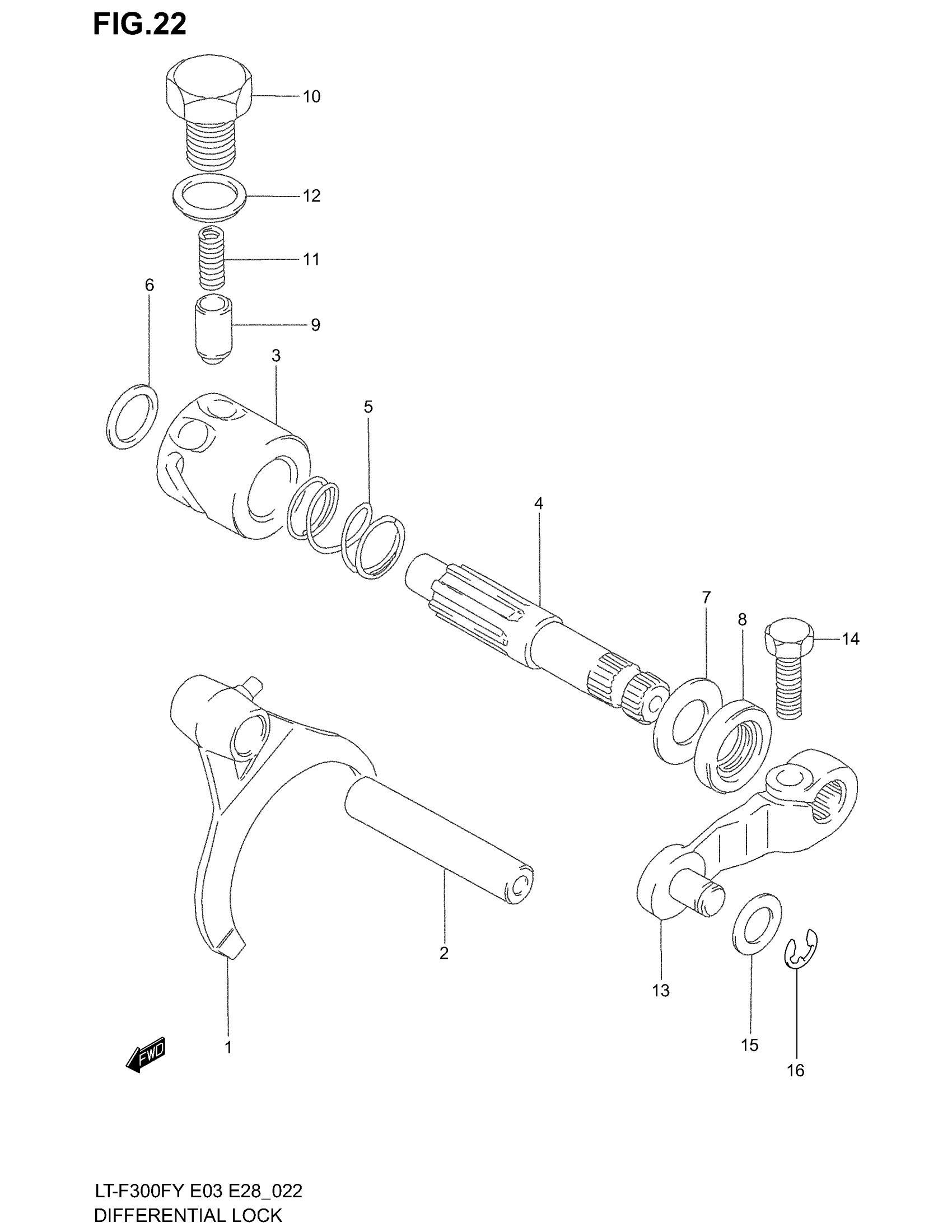

Suzuki LT-F300F (2002) DIFFERENTIAL LOCK Diagram

#

Description
Price

1

FORK, DIFFRENTIAL LOCKING

27941-19B00

Unavailable

2

SHAFT, FORK

25421-14301

$26.03

3

CAM, DIFFERENTIAL LOCKING

27911-19B01

Unavailable

4

SHAFT, CAM

27921-19B01

Unavailable

5

SPRING

09440-17008

$2.87

6

WASHER, RH (10X18X1.0)

09181-10167

$1.99

7

WASHER, LH

08211-12241

$2.07

8

OIL SEAL (12X22X9)

09285-12006

$5.70

9

STOPPER

25351-39300

$11.55

10

HOUSING

25352-11010

$6.80

11

SPRING

09440-05035

$3.57

12

GASKET

09168-14002

$2.83

13

ARM, DIFFERENTIAL LOCKING

25360-19B00

$74.95

14

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.77

15

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

16

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43
