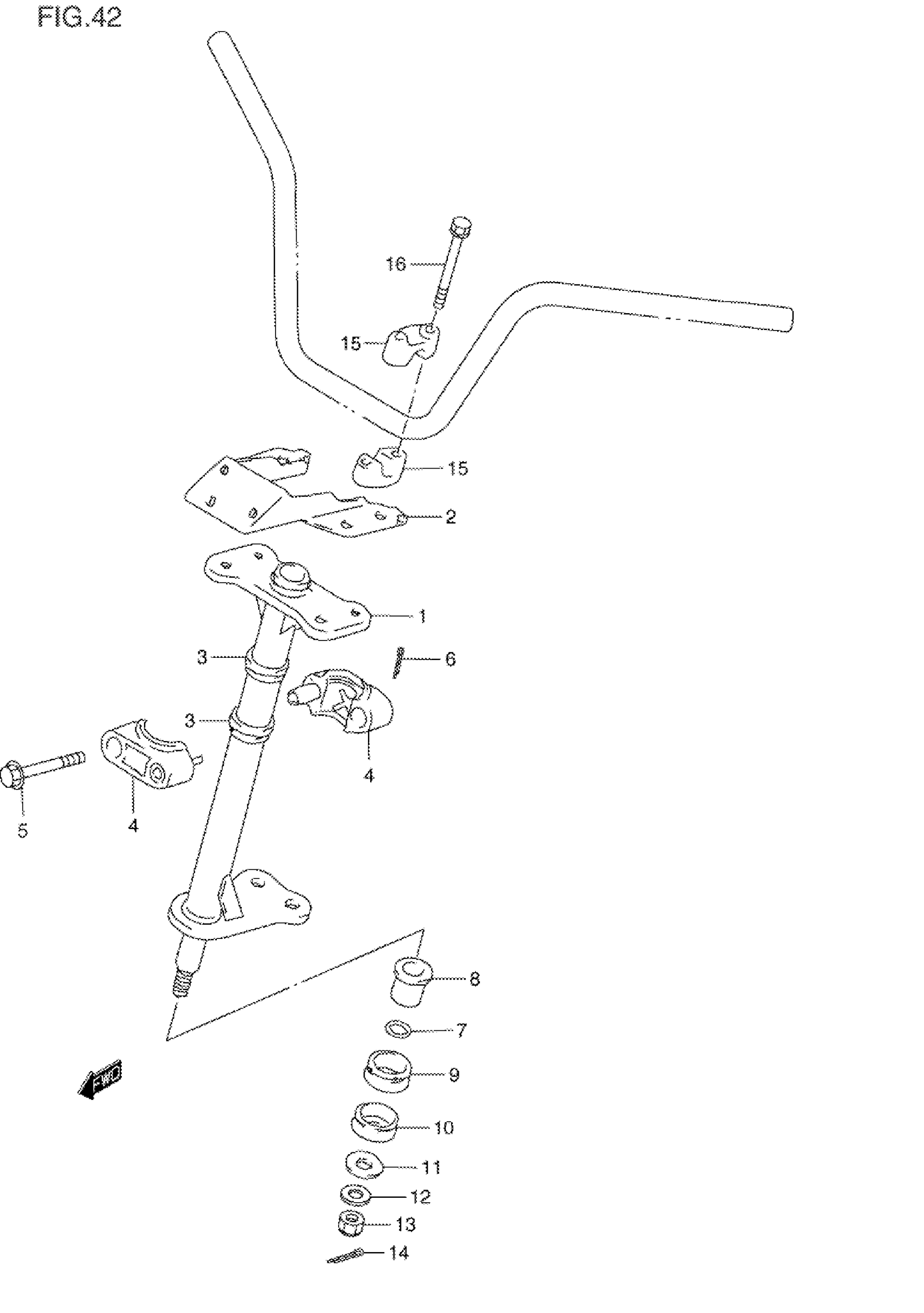

Suzuki LT-F250W (1998) STEERING SHAFT Diagram

#

Description
Price

1

SHAFT, STEERING

51650-20B10

Unavailable

2

BRACKET, HEADLAMP

51530-20B00

Unavailable

3

DUST SEAL, STEERING

51678-24500

$6.25

4

HOLDER,STEERING SHAFT

51670-24500

$21.72

5

BOLT (8X80)

09103-08116

Unavailable

6

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

7

O RING (ID:16.8,D:3.10)

09280-17003

$1.64

8

BUSH, STEERING SHAFT LOWER (17X26X36.9) This part replaces 51661-19B10.

51661-09F00

$27.50

9

SEAL,DUST This part replaces 51662-19A01.

51662-05G01

$5.87

10

SEAL,DUST This part replaces 51663-24500.

51663-05G01

$6.53

11

WASHER (12.5X32X4.5)

09160-12094

$4.03

12

LOCK WASHER

09162-12006

$4.18

13

NUT | MODEL V This part replaces 08319-21125.

08319-2112B

$5.63

13

NUT | MODEL W This part replaces 08319-21123.

08319-2112B

$5.63

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

15

CLAMP, HANDLEBAR (BLACK)

56211-27200-291

$20.22

16

BOLT

01580-08603

Unavailable
