1998 Suzuki LT-F250W Knuckle Arm Diagram

← All diagrams

Find the part on the Knuckle Arm diagram for your 1998 Suzuki LT-F250W, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

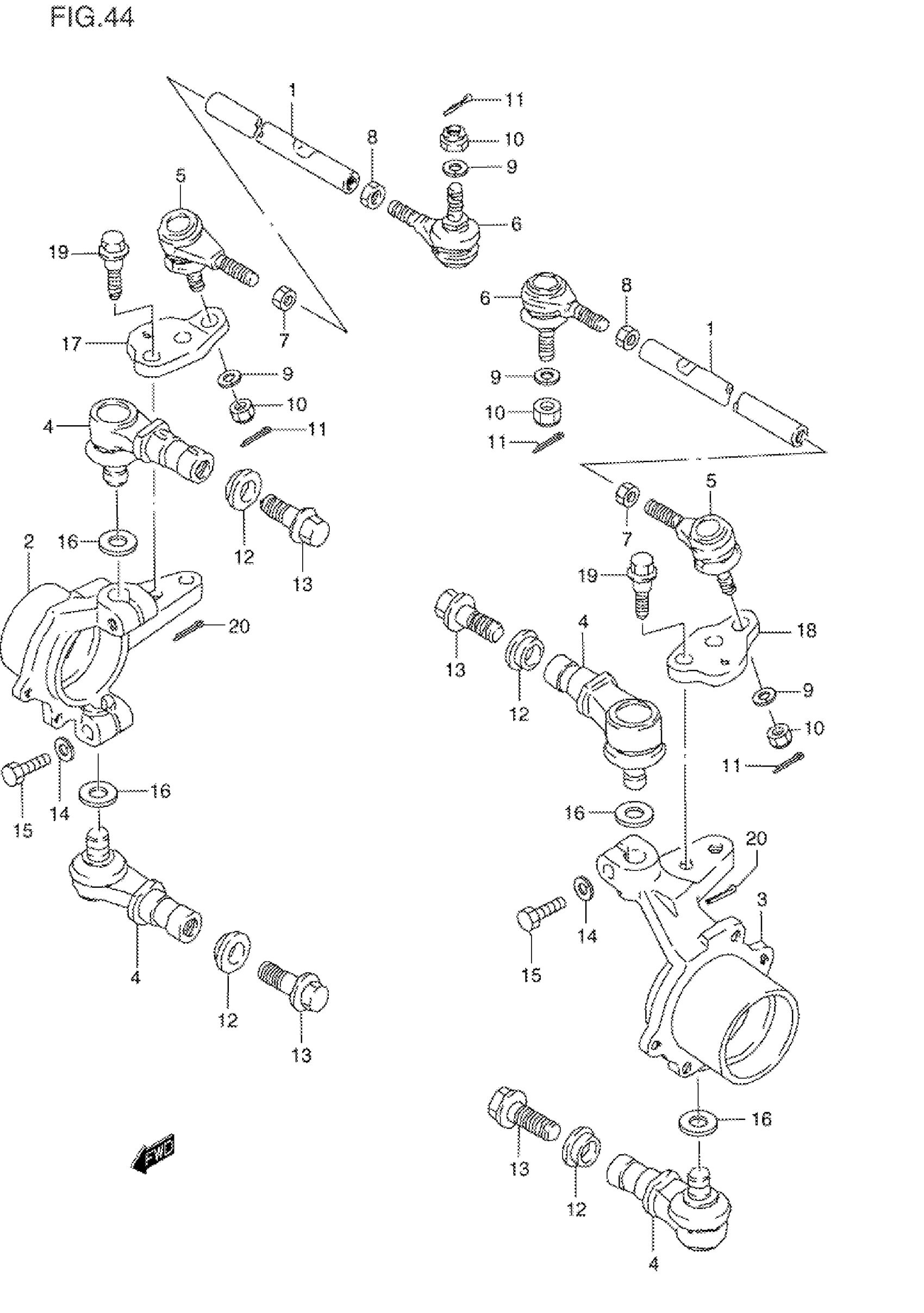

1998 Suzuki LT-F250W Knuckle Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TIE ROD, STEERING

51281-20B00

2
Out of stock

2

KNUCKLE, STEERING RH

51231-19B01

1
Out of stock

3

KNUCKLE, STEERING LH

51241-19B01

1
Out of stock

4

END,KNUCKLE STE This part replaces 51220-19A01.

51220-19A03

4
Out of stock

5

ROD, END RH This part replaces 51260-41B01.

51260-38F10

2
Out of stock

6

ROD, END LH This part replaces 51270-41B01.

51270-38F10

2
Out of stock

7

NUT, TIE ROD RH THREAD

09140-10043

2
Out of stock

8

NUT, TIE ROD LH THREAD

09140-10027

2
Out of stock

9

LOCK WASHER, ROD END

09162-10008

4
Out of stock

10

NUT | MODEL V

09159-10027

4
Out of stock

10

NUT, REAR | MODEL W This part replaces 08319-21103.

08319-2110A

4
Out of stock

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

4
Out of stock

12

STOPPER, KNUCKLE END BOLT

52418-24500

4
Out of stock

13

BOLT, KNUCKLE STEERING END

09103-14009

4
Out of stock

14

LOCK WASHER This part replaces 08321-01103.

08321-0110A

4
Out of stock

15

BOLT, KNUCKLE (10X32)

09100-10225

4
Out of stock

16

WASHER, KNUCKLE END LOWER

09160-14060

4
Out of stock

17

ARM, KNUCKLE STEERING RH

51232-20B00

1
Out of stock

18

ARM, KNUCKLE STEERING LH

51242-20B00

1
Out of stock

19

BOLT, ARM KNUCKLE STEERING

09111-10044

4
Out of stock

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

4
Out of stock
