1998 Suzuki LT-F250W Handlebar - Cable Diagram

← All diagrams

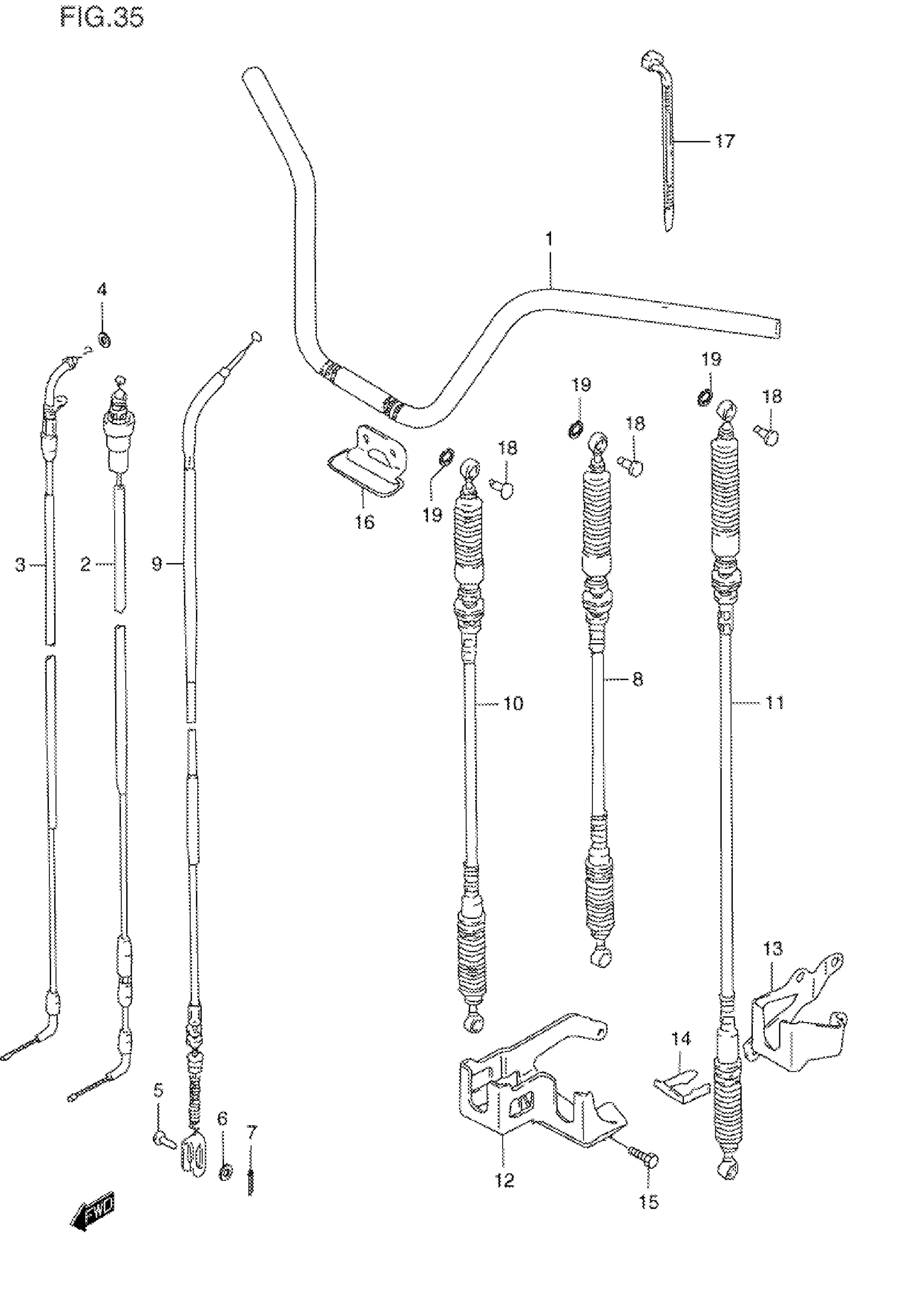

Find the part on the Handlebar - Cable diagram for your 1998 Suzuki LT-F250W, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Suzuki LT-F250W Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR This part replaces 56111-20B01-291.

56111-20B02

1
Out of stock

2

CABLE ASSY, THROTTLE

58300-19B20

1

$21.69

In stock

3

CABLE, STARTER

58410-19B10

1

$35.61

In stock

4

WASHER | MODEL V This part replaces 09161-05015.

09320-06503

1
Out of stock

4

WASHER | MODEL W

09320-06503

1
Out of stock

5

PIN, REAR CABLE PEDAL SIDE

09200-06013

1
Out of stock

6

.WASHER This part replaces 08322-01063.

08322-0106B

1
Out of stock

7

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

8

CABLE, T/M GEAR SHIFT

58680-19B21

1

$232.28

In stock

9

CABLE, PARKING BRAKE

58810-19B02

1

$60.01

In stock

10

CABLE, REVERSE This part replaces 58840-19B10.

58840-39DA0

1
Out of stock

11

CABLE, SUB T/M SHIFT

58880-20B10

1
Out of stock

12

BRACKET, CONTROL CABLE

58870-19B00

1
Out of stock

13

BRACKET, CONTROL CABLE

58873-19B11

1
Out of stock

14

CLIP

09383-19003

3

$5.10

In stock

15

BOLT This part replaces 01547-06163.

01547-0616B

2
Out of stock

16

GUIDE, CABLE

58620-19B10

1
Out of stock

17

CLAMP, L:95

09407-11401

3
Out of stock

17

CLAMP, L:125

09407-14403

4
Out of stock

17

CLAMP This part replaces 09407-18403.

09407-18402

1
Out of stock

18

PIN

09208-08008

2

$2.77

In stock

19

CIRCLIP This part replaces 08332-11063.

08332-1106A

2
Out of stock
