1998 Suzuki LT-F250W Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1998 Suzuki LT-F250W, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

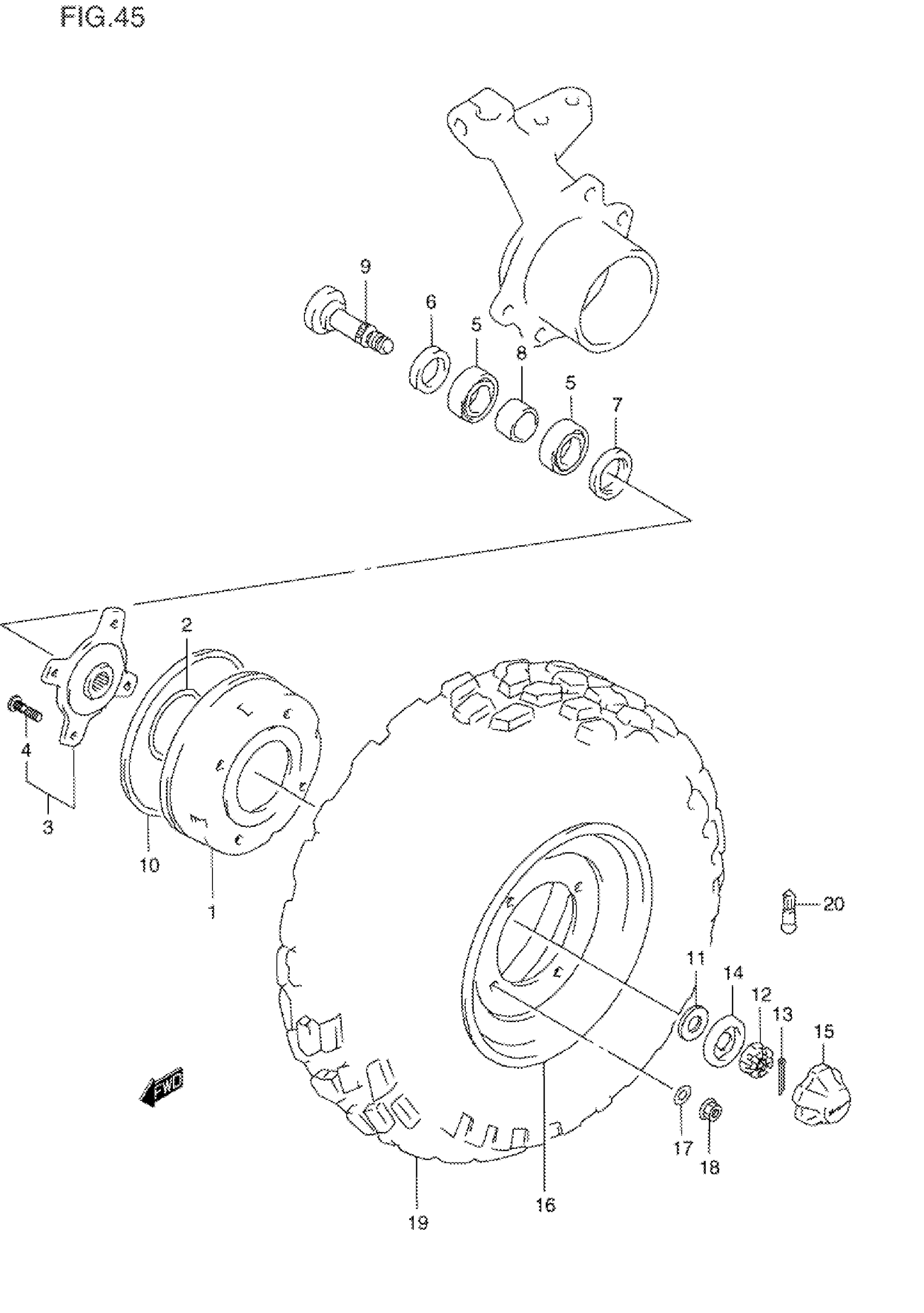

1998 Suzuki LT-F250W Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DRUM, BRAKE

54120-19B10

2
Out of stock

2

2

$3.79

In stock

3

HUB, FRONT | Includes Item(s) 4

54110-19B01

2
Out of stock

4

8

$2.23

In stock

5

BEARING, FRONT HUB

08123-60067

4
Out of stock

6

DUST SEAL, INNER (38X55X8)

09283-38012

2
Out of stock

7

2

$15.15

In stock

8

SPACER, FRONT HUB

54731-19B00

2

$11.51

In stock

9

AXLE,FRONT This part replaces 54711-20B01.

54711-20B0V

2
Out of stock

10

DUST SEAL, DRUM BRAKE

54124-19B10

2
Out of stock

11

WASHER, HUB

09164-18004

2
Out of stock

12

NUT, HUB

09141-18008

2

$8.27

In stock

13

PIN, COTTER This part replaces 04111-40408.

04111-4040A

2
Out of stock

14

HOLDER, CENTER CAP

64726-19B00

2

$3.39

In stock

15

CAP, WHEEL CENTER

54725-39D00

2

$15.15

In stock

16

RIM, FRONT WHEEL (SILVER)

55310-20B00-13L

2
Out of stock

17

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

8
Out of stock

18

NUT This part replaces 08316-10103.

08316-1010B

8
Out of stock

19

TIRE, T/L FRONT (AT22X8-10)

55100-20B51

2
Out of stock

20

VALVE ASSY, WHEEL RIM,TR413

43130-78030

2
Out of stock
