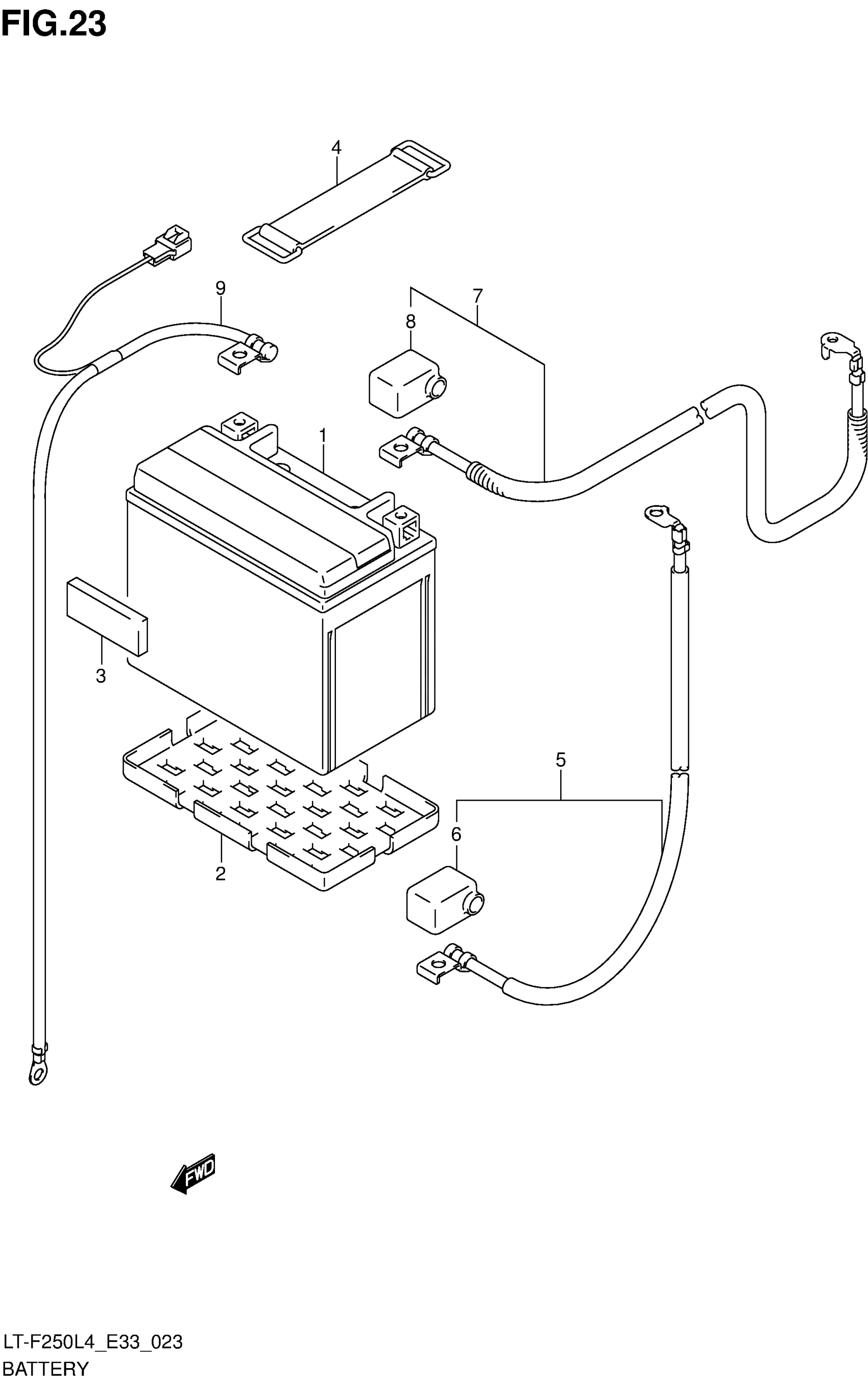

Find the part on the Battery diagram for your 2014 Suzuki LT-F250L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki LT-F250L4 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY (FTX12-BS,12V,10AH) | XTX12-BS,12V,10AH This part replaces 33610-17E10.

33610-48E20

1
Out of stock

2

PROTECTOR,BATTERY

33652-16G00

1
Out of stock

3

PROTECTOR (50X20X8)

33652-35400

1
Out of stock

4

BAND

09462-00008

1

$4.71

In stock

5

WIRE, STARTER MOTOR

33810-05G00

1
Out of stock

6

CAP, STARTER MOTOR

31146-05G00

1
Out of stock

7

WIRE,BATTERY PL This part replaces 33820-05G00.

33820-05G02

1
Out of stock

8

CAP, BATTERY PLUS

33624-16E00

1
Out of stock

9

WIRE, BATTERY MINUS

33860-21G00

1
Out of stock
